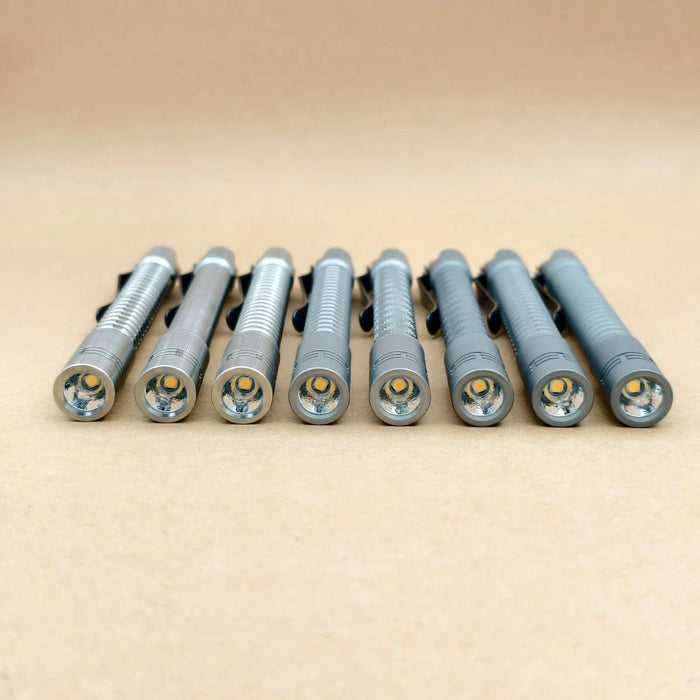

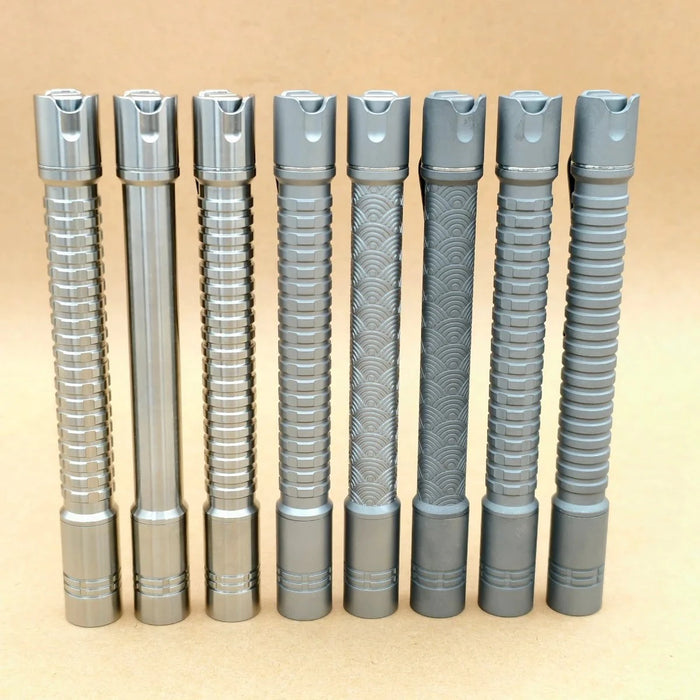

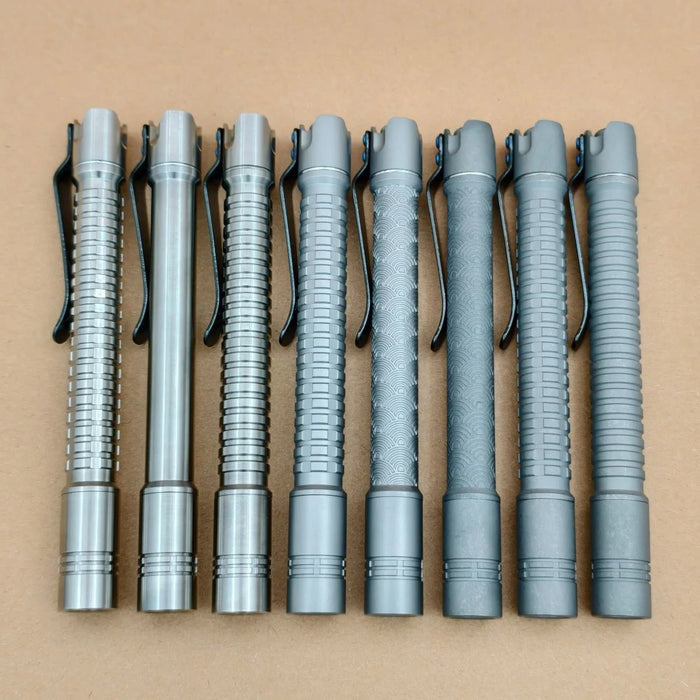

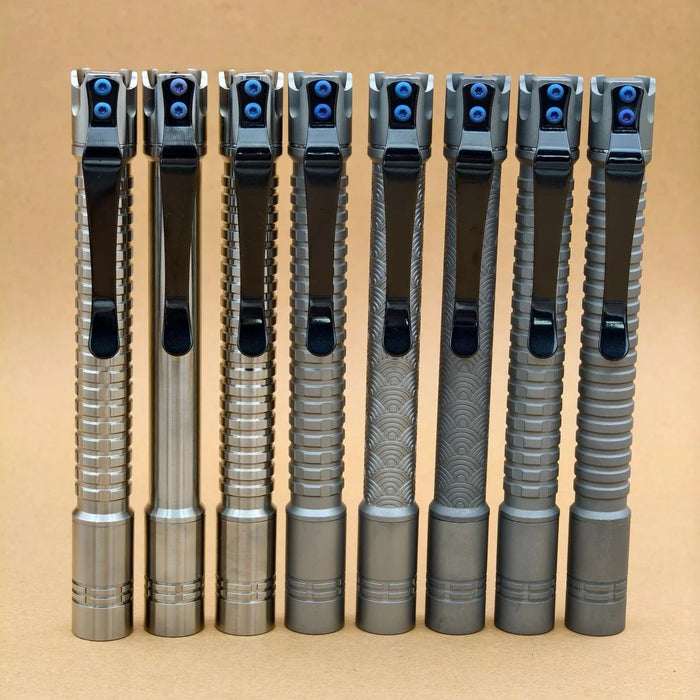

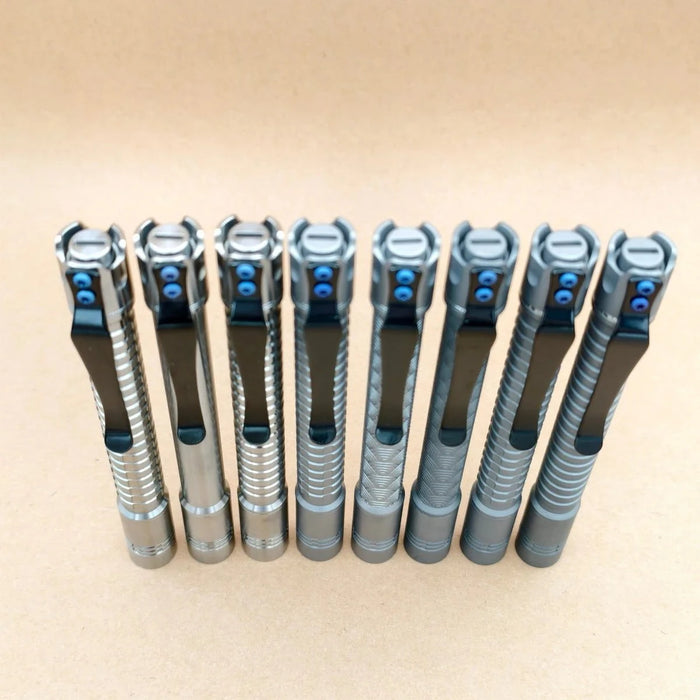

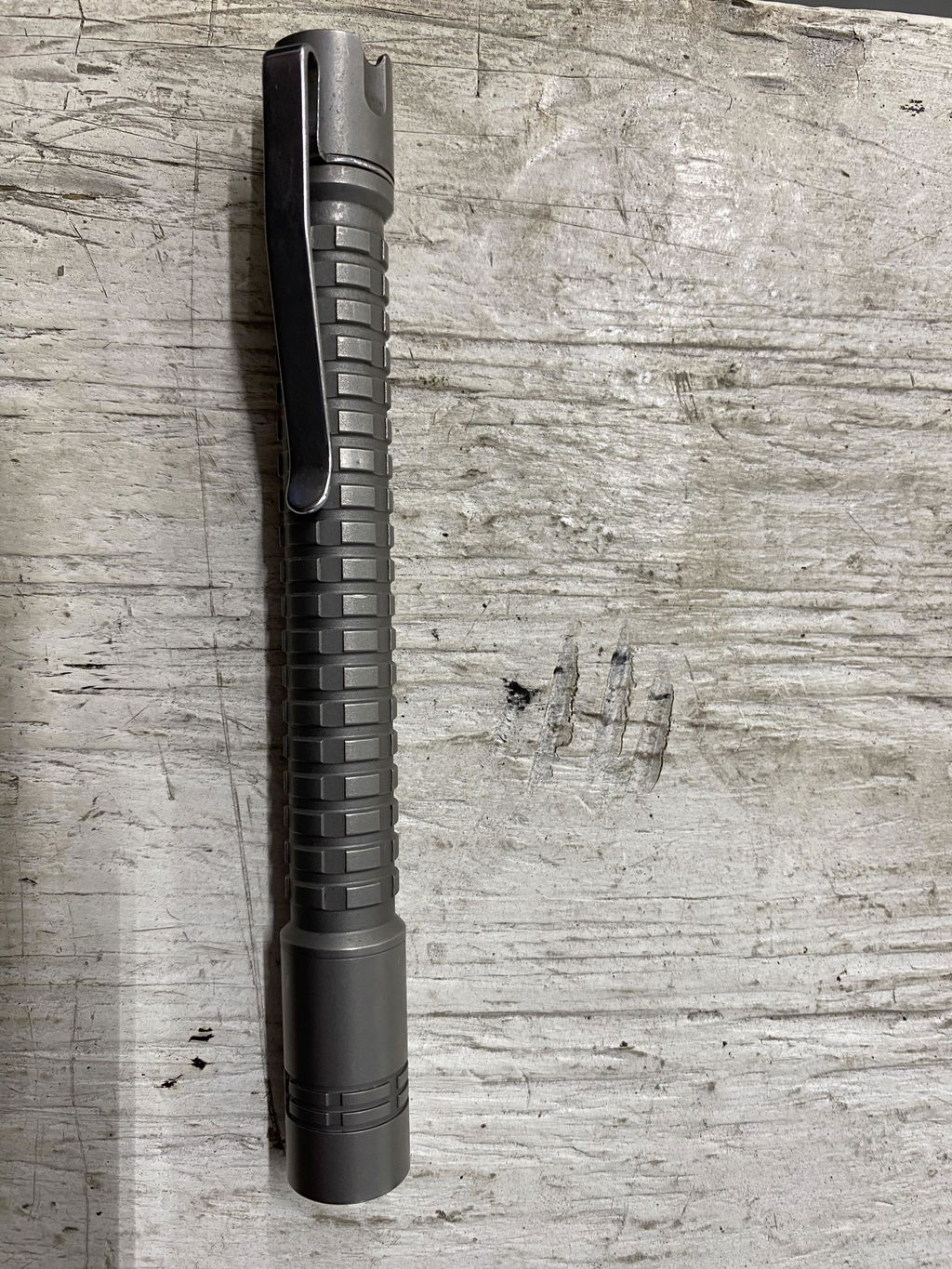

ReyLight Pineapple Mini Penlight - TI
ReyLight Pineapple Mini Penlight - Ti
The Reylight Pineapple Mini Penlight MK II – Titanium is far more than just another penlight — it’s a refined evolution of a beloved design, now reimagined in solid titanium for unmatched durability, elegance, and performance. With its sleeker, longer, and slimmer profile, this titanium edition offers the perfect balance of form and function for those who demand excellence in every detail.
Compact and feather-light, the Pineapple Mini Penlight slips easily into a pocket, bag, or organizer — always within reach when you need it most. It’s powered by a rechargeable Li-ion 10880 battery with a built-in Micro-USB charging port, ensuring quick and convenient charging anywhere. And for maximum flexibility, it also accepts standard AAA batteries, so you’ll never be without light when it matters.
Performance meets sophistication with the Nichia 519A 4000K LED, capable of delivering up to 500 lumens of high-quality illumination. Its high Color Rendering Index (CRI) ensures that colors appear vivid and true to life, making it ideal for both professional and everyday use.
Where the MK II truly stands apart is in its craftsmanship. Milled from premium-grade titanium, the penlight boasts remarkable strength-to-weight balance, natural corrosion resistance, and a timeless metallic luster that develops a subtle patina over time. The signature “Pineapple” knurling provides a secure, comfortable grip and gives the penlight its distinctive identity — tactile, stylish, and unmistakably Reylight.
In conclusion, the Reylight Pineapple Mini Penlight MK II – Titanium is not just an upgrade; it’s a statement piece. Combining cutting-edge performance, elegant design, and legendary titanium durability, it’s an indispensable companion for professionals, enthusiasts, and collectors alike.
Experience the perfect fusion of art and engineering — own the Titanium Pineapple Mini today and illuminate your world with style.
Nichia 519A 4000K LED. Light comes with a rechargeable and protected Li-ion 10880 battery. The battery has an Micro-USB charging port.
You can also use double AAA battery. Both Alkaline and Ni-MH are ok.
You can also use a normal 10440 protected battery plus a dummy AAA cell. Please Do NOT use double 10440.
NOTE: Please do not use the 10900 battery in the market, it will be too long and leave a gap between head and body.
In order to make the light compatible with more batteries, I have to give up the low voltage protection. Because double AAA battery 3V is the trigger of LVP for Li-ion.
Luckily the included 10880 battery itself has protection, and normal AAA batteries don’t need protection at all.
Max 500 lumens.
If you need the new tailcap, pls click here to add to cart. The recessed design makes the light tailstand, and less chance for accident turning on in pocket. However, it might make the button switch a little more diffcult to click.
If you need the Timascus button, pls click here to add to cart.
The light comes with a Ti washer, if you don’t want the clip at all, use it instead.
Size: 134.2mm length (including the switch button) diameter: 15mm
Reylight Mini Pineapple Programming Guide
1. (Full click to) Turn on the light.
2. Half click the button 8+ times. The light will now blink once, then strobe, blink twice, then strobe, blink three times, then strobe…After 5 blinks and a strobe, the sequence repeats.
a. 1 blink: mode group selection. Half click the button to enter this menu.
i. 1 blink: (ML)-2%-20%-100%
ii. 2nd blink: (ML)-10%-40%-100%
iii. 3rd blink: (ML)-2%-10%-50%
iv. 4th blink: (ML)-50%-100%-strobe-SOS
It then repeats. Half click the button during any blink to select that mode group.
b. 2 blinks: mode memory on-off toggle (default off). Half click the button during the two blinks or during the strobe after to turn mode memory on. Repeat to turn mode memory off.
c. 3 blinks: moonlight mode off-on toggle (default on). Half click the button during the three blinks or during the strobe after to turn moonlight off. Repeat to turn moonlight on.
d. 4 blinks: mode order toggle (default LMH). Half click the button during the four blinks or during the strobe after to change the mode order from Low Medium High to High Medium Low. Repeat to reverse the order.
e. 5 blinks: factory reset. Half click the button during the five blinks or during the strobe after to reset the light to factory settings.
Shorcut: quick double tap to turbo.
