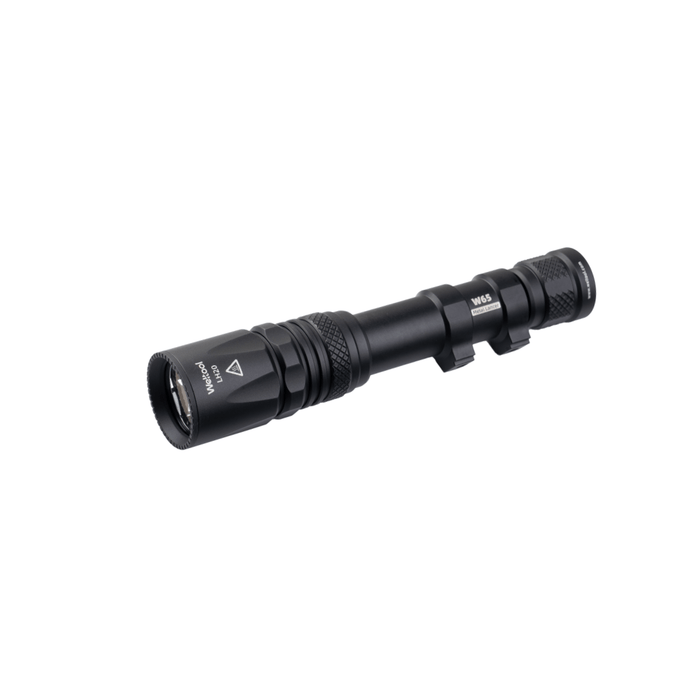

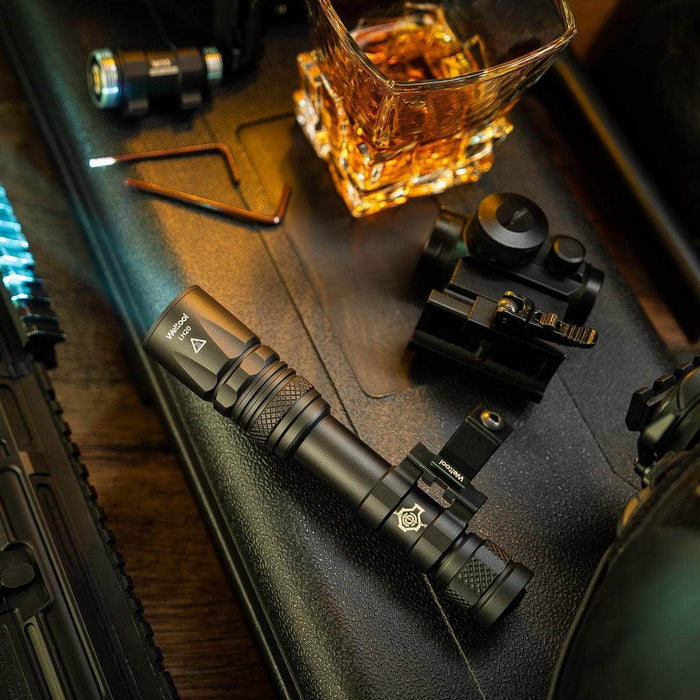

Weltool W65S
The Weltool W65S is built for those who demand uncompromising performance in a full-size, long-range LEP weapon light. Engineered to deliver an astounding 364,500 candela and an incredible 1,207-meter throw, this powerhouse combines raw intensity with practical usability. Producing 700 lumens from a customized white LEP light source paired with an aluminum reflector, the W65S optimizes the traditionally narrow LEP beam by adding a subtle, low-lux spill—perfect for preserving dark adaptation and enhancing situational awareness without sacrificing long-distance precision. This refined beam profile means you can maintain peripheral awareness while still benefiting from a piercing, high-candela hotspot. The light source complies with IEC 62471 Exempt and IEC 60825 Class 1 standards, ensuring safe and reliable operation in the field.
Precision-crafted from CNC-machined aluminum alloy with a hard-anodized finish, the W65S is built to withstand the harshest conditions. The fully potted light head, aluminum reflector, and coated tempered glass lens ensure maximum durability, while the tail switch provides instant access to full-power output when it matters most. Designed for reliability, it features battery over-discharge protection, reverse connection protection, and a low-voltage reminder so you’re never caught off-guard. Tested outdoors in a ventilated environment using a Weltool 3000mAh 18650 Li-ion battery, it offers a runtime of 1 hour 40 minutes—more than enough for demanding missions or extended use.
With no flicker or noise, IP67 water resistance for heavy rain performance, and the ruggedness to survive a 1-meter drop, this light is ready for real-world challenges. Every W65S comes with its own independent serial number, emphasizing its quality and traceability. Measuring 167mm in length with a head diameter of 32.5mm and body width of 29mm, and weighing just 140g without the battery, it balances size and handling for optimal weapon integration. Included in the package is a high-drain Weltool 18650 lithium-ion battery and an O-ring, ensuring you’re equipped and ready to go right out of the box.
The Weltool W65S isn’t just another weapon light—it’s a mission-ready illumination tool, combining cutting-edge LEP technology with rugged construction for unmatched reach, control, and reliability. Whether you’re engaging at extreme distances or scanning your surroundings with precision, this light is designed to give you the tactical edge you need.
Weltool W65S performance and parameters:
CNC machined aluminum alloy, hard anodized surface
Aluminum reflector, coated tempered glass lens
Customized white LEP light source, color temperature 6000-6500K
Light Output：700 lumens
Beam Intensity：364,500 candela
Beam Distance：1,207meters
Runtime： 1 h 40 min
（Tested outdoors in a ventilated environment using Weltool 3000mAh 18650 Li-Ion battey）
With battery over-discharge protection, battery reverse connection protection, low voltage reminder function
Light head is potted
No flicker and noise
Battery type: 1 high-drain 18650 lithium-ion battery

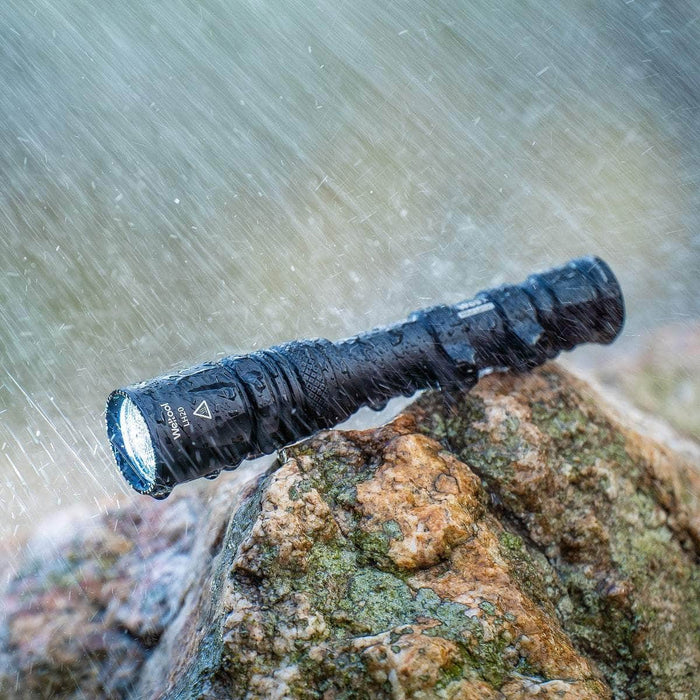

IP67, can be used in heavy rain
Passed 1 meter height drop test
Each light has an independent serial number
Weight (without battery): 140±1g
Dimensions (±0.5mm): (head diameter) 32.5mm, (body width) 29mm, ( length) 167mm
Included: Weltool high-drain 18650 lithium-ion battery, O-ring
Weltool W65S Operating Instructions:
1.Install the battery correctly. If the light does not function properly, check whether the battery is inserted in reverse.
2.After installing the battery, lightly press the tail switch for momentary activation; release to turn it off.
3.Fully press the switch until a “click” is heard to activate constant-on mode. Press again until it clicks to turn it off.
4.When the battery voltage drops, the light will flash as a warning. Please recharge the battery promptly.
5.When the battery is fully depleted, the weapon light will automatically shut off.
Notice:
-
Do not disassemble any components by yourself, as this will void the warranty and may damage the product.
-
It is normal for this weapon light to generate heat during use. However, prolonged operation will accelerate power consumption and heat accumulation. This light has a built-in thermal protection function that automatically reduces output after 2 minutes of continuous use.
-
After long-term use, the O-ring may age. Please replace it in time to maintain the waterproof performance.
-
Applying too much thread lubricant may cause the light to malfunction.
-
Lithium-ion batteries will self-discharge. If not used for an extended period, please remove the battery and recharge it at least once every two months.
-
Do not shine the light directly into eyes or onto skin to avoid potential eye injury or skin burns. Keep away from children.
