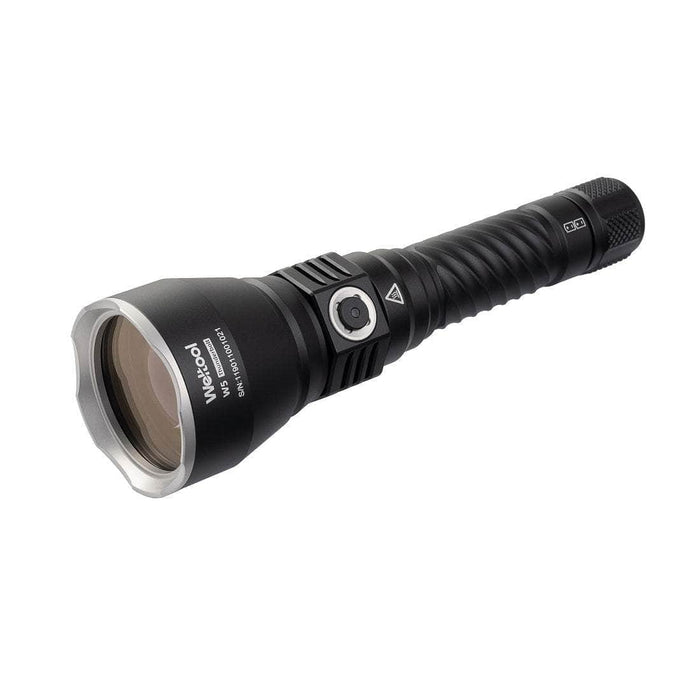

Weltool W5 Pro Thunderbolt LEP Flashlight
Weltool W5 Pro LEP search light is an upgraded version of W5, with 900 lumens, 2.02 million candela, and a throw of 2842 meters. Use two 22500 lithium-ion batteries, or you can purchase BB5 extension tube separately to use two 21700 lithium-ion batteries to increase runtime. Comes with a temperature control function and ensures that the flashlight does not overheat. The LEP light source of W5 Pro has high energy density and forms a dazzling light beam after passing through the convex lens. This light source passed IEC 62471 Exempt and IEC 60825 Class 1
High and low modes, electronic switch, the button has a battery indicator light; the flashlight has a lock function to prevent accidental touch. W5Pro has a strong throwing ability and is suitable for field search, sea surface rescue, long-distance indication, high-voltage line maintenance, anti-drone and other purposes. It is specially designed for special lighting.
Aluminum alloy material, black hard anodized surface
Acrylic convex lens
Special LEP module, wavelength 400-700nm, lifespan about 10,000 hours
Test environment: below 25 degrees Celsius, continuous work outdoors with breeze (ambient temperature will affect battery life).
Use 2 22500 or Weltool UB22-19 22430 lithium-ion batteries; add BB5 extension tube to use 2 21700 lithium-ion batteries
Side-press electronic switch with battery indicator light and locking function to prevent accidental touching.
High-efficiency drive circuit, no noise and no flicker
Temperature control protection: When the temperature of the flashlight is too high, the flashlight will automatically reduce the brightness to prevent overheating
With reverse polarity protection, low voltage prompt function (battery indicator + main light prompt)
With battery over-discharge protection
Stainless steel lens ring, coated tempered glass lens
Passed 1 meter drop resistance test
Each flashlight has a unique serial number
Size (±0.5mm): (head diameter) 60.5mm, (body diameter) 30mm, (length) 214.5mm, (length with extension tube) 265mm
Weight: 380±5g (excluding battery and extension tube)
Included: 2 INR22-24 or UB22-19 lithium-ion batteries, Type-C charging cable, O-ring
First, install the battery correctly, with the positive pole of the battery facing the direction of the light head.
The flashlight has a reverse polarity protection function, if the flashlight does not work, please check the battery
Short press the switch to turn on or off the flashlight, and the battery indicator on the switch button will turn on (full battery: green light, low battery: red light, automatically turn off after 5 seconds), and the red light keeps flashing when the battery is ultra-low.
After the flashlight is turned on, press and hold the switch to select the mode, and release the switch to select the current mode that is always on. The default is the high mode every time the flashlight is turned on.
During use, if the battery power is low, the power indicator light will turn off after 5 seconds with a red light, and the indicator light will keep flashing when the battery is extremely low. The flashlight's main light will also flash before the battery is exhausted, and then stop working at any time.
Press the side switch once in the locked state, and the battery indicator light will turn on for 5 seconds (full battery: green light, low battery: red light, ultra-low battery: red light flashing)
Switch lock and unlock functions:
Quickly press the switch more than 4 times in the off state to lock it, and the indicator light on the switch button will flash for 3 seconds to indicate that it has been locked; after locking, the flashlight will remember the locked state, and at this time, it needs to be unlocked when the battery is replaced and used again.
After unlocking, the main light will turn on in high mode.
