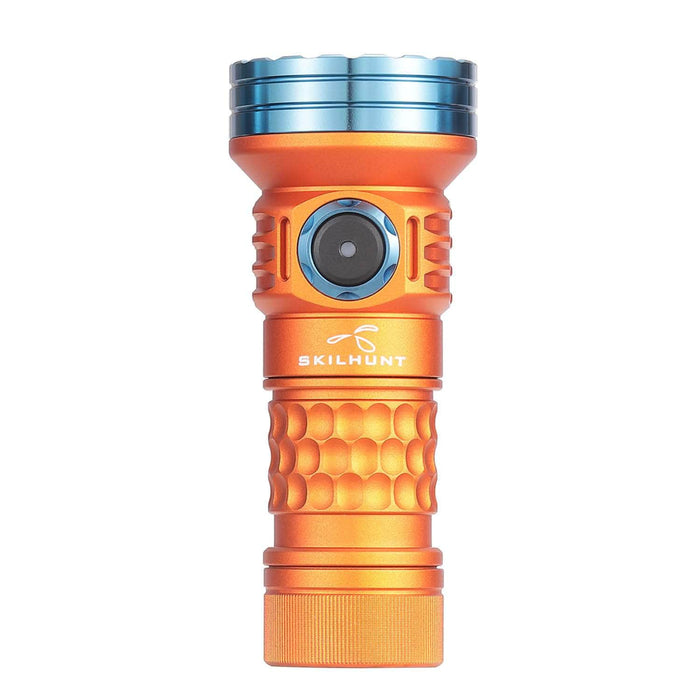

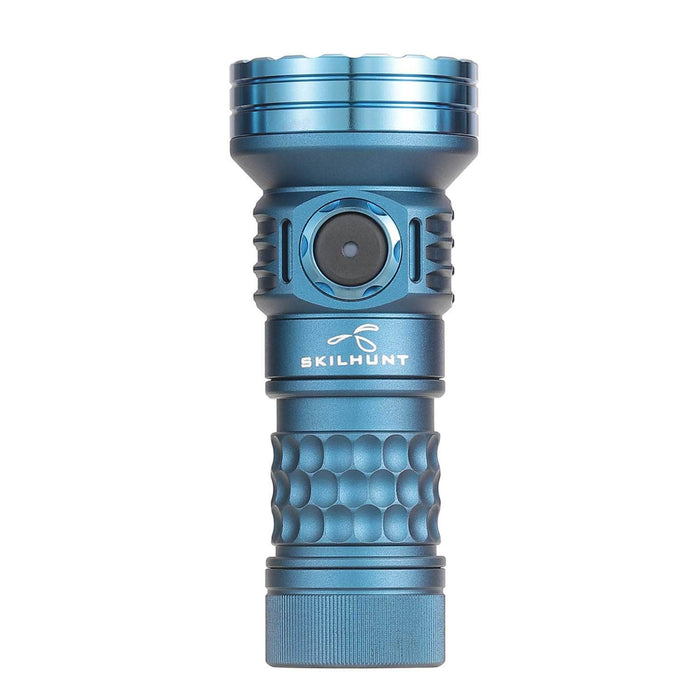

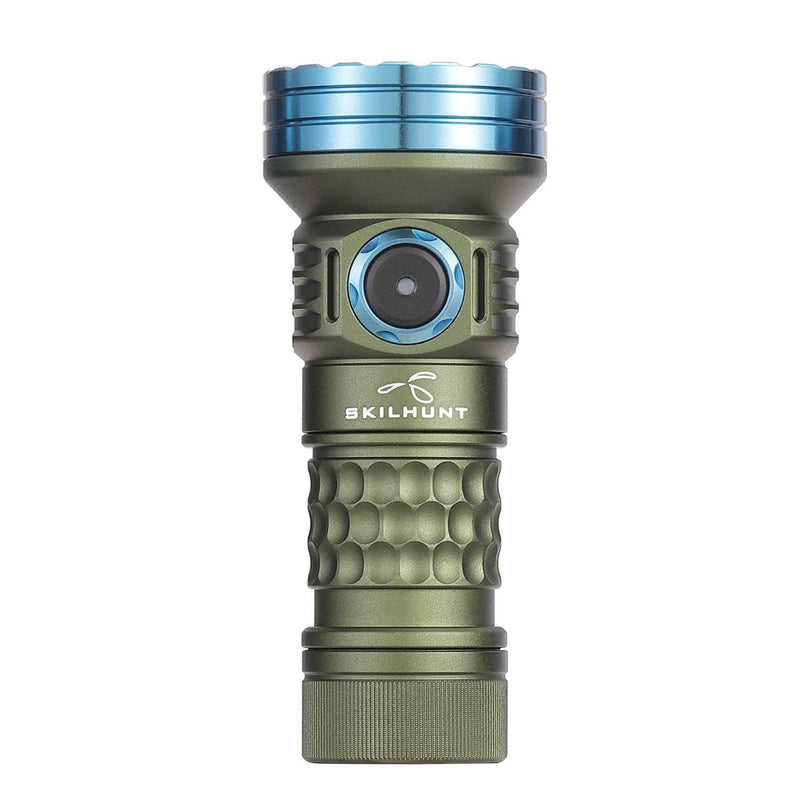

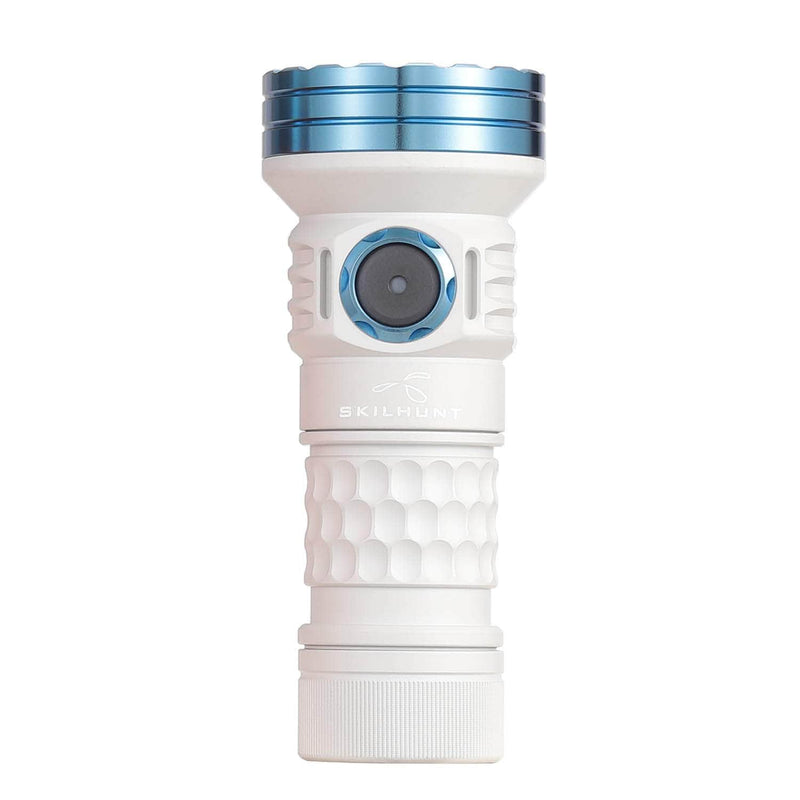

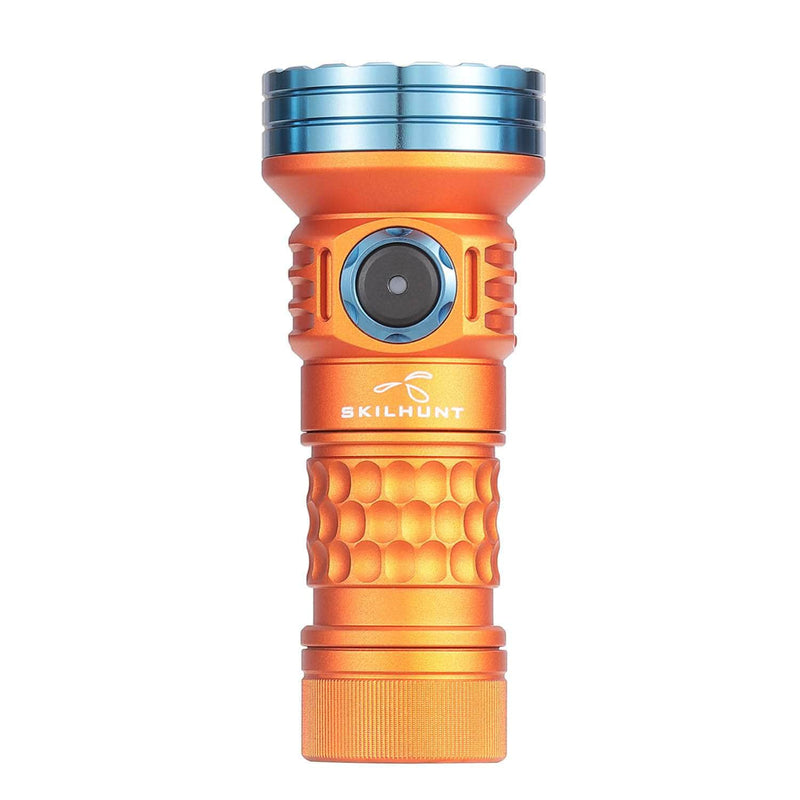

Skilhunt MiX-7
LED:

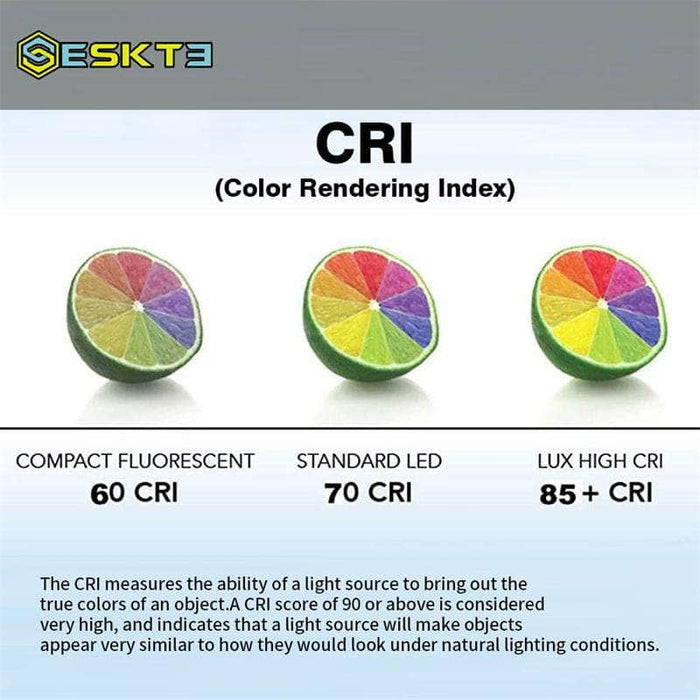

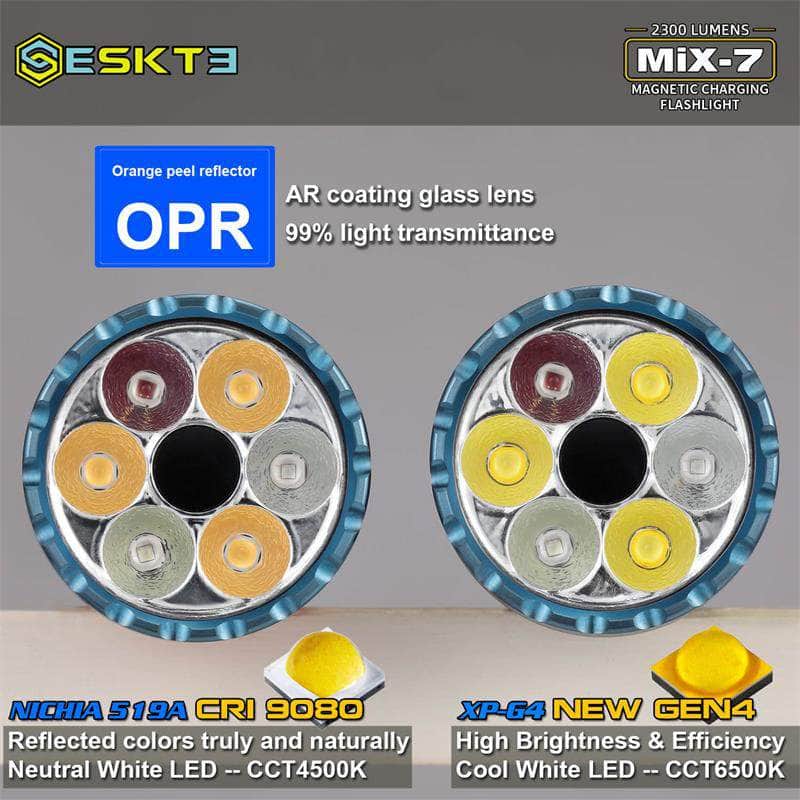

White LED: 3 x CREE XP-G4 6500K / 3 x Nichia 519A High CRI R9080 4500K
Max output: CREE Cool White ANSI 2300 Lumens, Nichia High CRI ANSI 1500 Lumens
Red light: ANSI 165 Lumens, Green light: ANSI 340 Lumens, Blue light: ANSI 45 Lumens
UV 365 light: 1000 mw
Max runtime: 180 hours
Quiescent Current : 55 μA

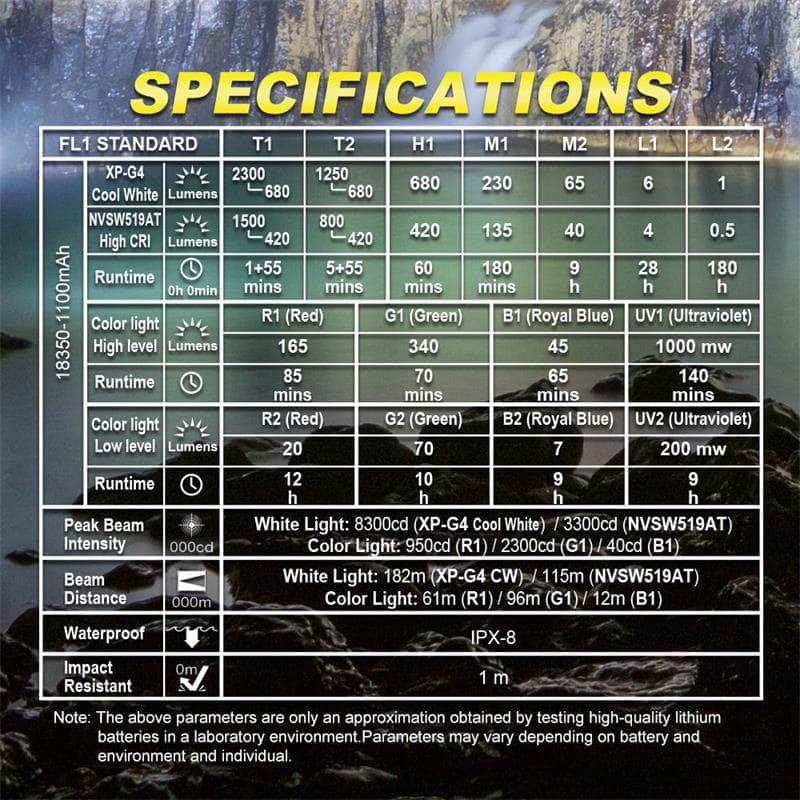

Max beam distance:
White Light: 182m (XP-G4 CW) / 115m (NVSW519AT)
Color Light: 61m (R1) / 96m (G1) / 12m (B1)
Max peak beam intensity:
White Light: 8300cd (XP-G4 Cool White) / 3300cd (NVSW519AT)
Color Light: 950cd (R1) / 2300cd (G1) / 40cd (B1)
Waterproof: IPX-8
Impact resistant: 1 Meter
Battery: 1×18350
Rated Range: 2.7V ~ 4.2V

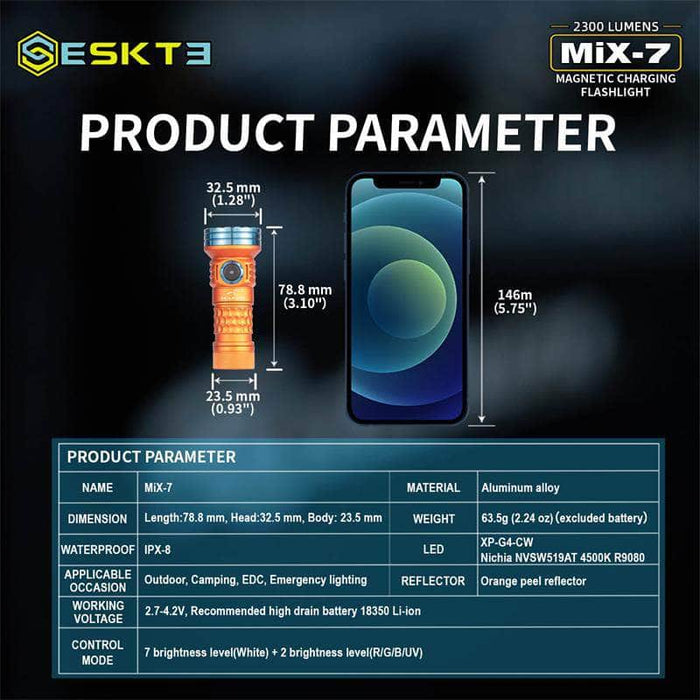

Dimension: L78.8mm / 3.10″, Head diameter 32.5mm / 1.28 “.
Weight: 63.5 g / 2.24 oz (Excluded battery)

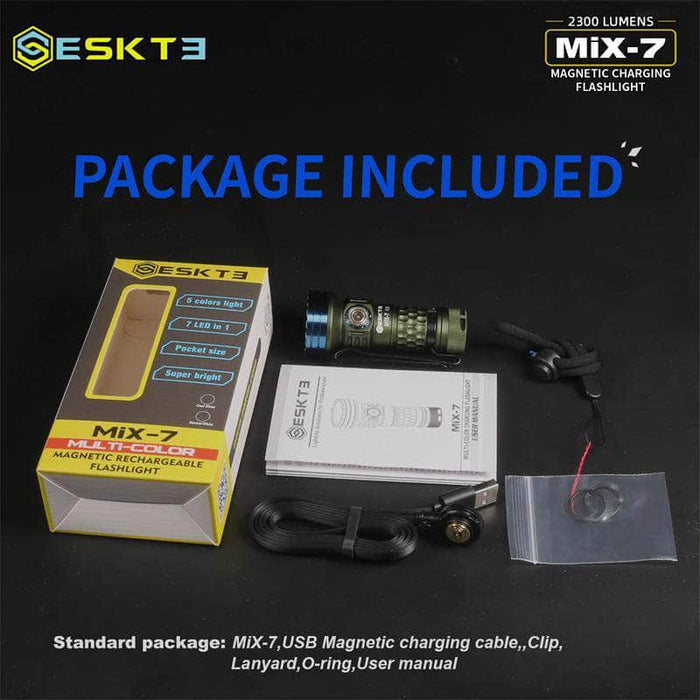

Accessories: Magnetic Charging Cable, Clip, Lanyard, Spare O-rings.
1,Battery installation & Replace magnet:
Please make sure that the positive pole of the battery points to the head of the flashlight when you replace the battery.
1. ON/OFF
Single click the side switch to turn the light on/off. When the light is turned off,
it will memorized current brightness level or mode.

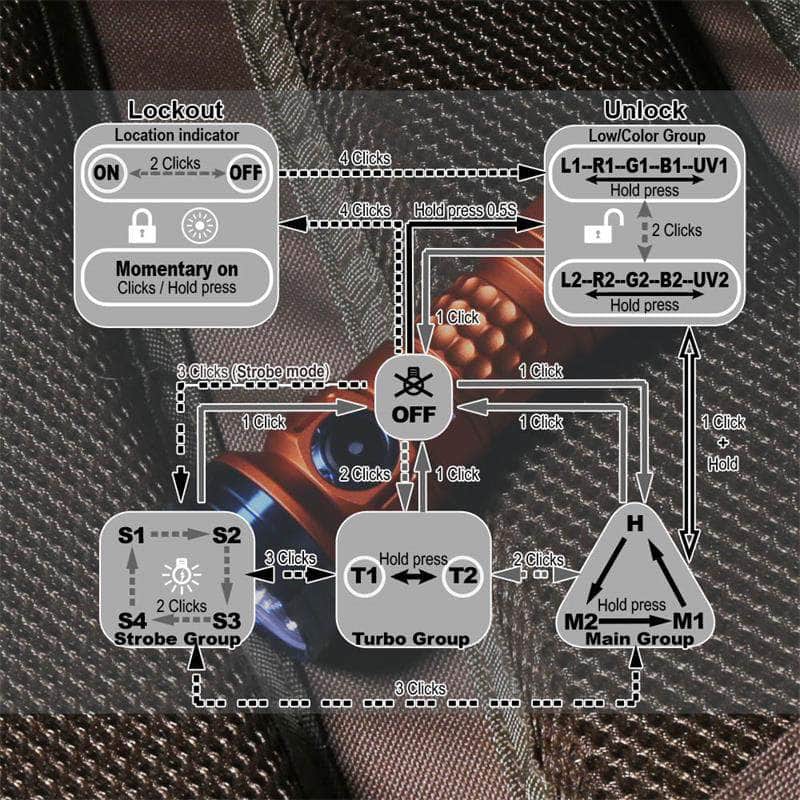

2. CHANGE BRIGHTNESS LEVEL
When the flashlight was OFF status:
Single click switch to Main Group(H>M1>M2).
Quickly double clicks switch to Trubo Group(T1/T2).
Quickly triple-click switch to Strobe Group(S1>S2>S3>S4).
Hold press switch 0.5 second to Low/Color Group(L1/R1/G1/B1/UV1,L2/R2/G2/B2/UV2).
When the flashlight was ON (Turbo Group, Main Group, Low/Color Group)
Press and hold the switch to automatically cycle, the level is selected when the side
switch has been released, turn off memorized.
When the flashlight was ON Main Group(H>M1>M2)
Quickly double clicks switch tranfer Main Group to Trubo Group(T1/T2), repeat quickly
double clicks switch back to Main Group.
Quickly triple clicks switch transfer Strobe Group(S1>S2>S3>S4), repeat quickly triple
clicks switch back to Main Group.
Quickly click and hold switch tranfer Main Group to Low/Color Group, repeat quickly
click and hold switch back to Main Group.
When the flashlight was ON Strobe Group(S1>S2>S3>S4)
Quickly double clicks switch tranfer S1-S2-S3-S4, turn off memorized.

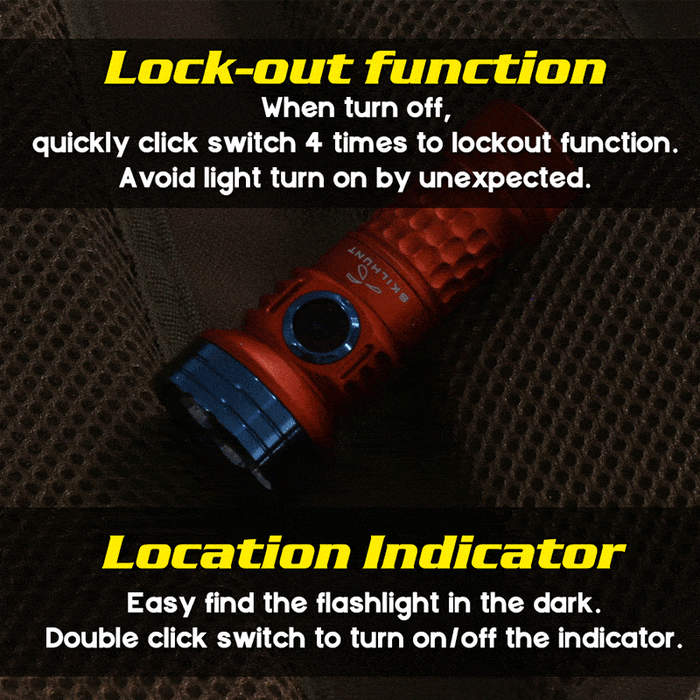

3.LOCK-OUT FUNCTION & LOCATION INDICATOR
When the flashlight is off , quickly click switch 4 times to access the button lockout
mode (location indicator activation at same time,the indicator light flash every second.
Double clicks can turn on/off the indicator). Quickly click switch 4 times,the button
unlock and activate Low mode.
4. LOW VOLTAGE INDICATOR
When the battery voltage drops below 3.0V, the indicator flashes twice every 2 seconds.
When the battery voltage drops below 2.7V, the light will turn off.

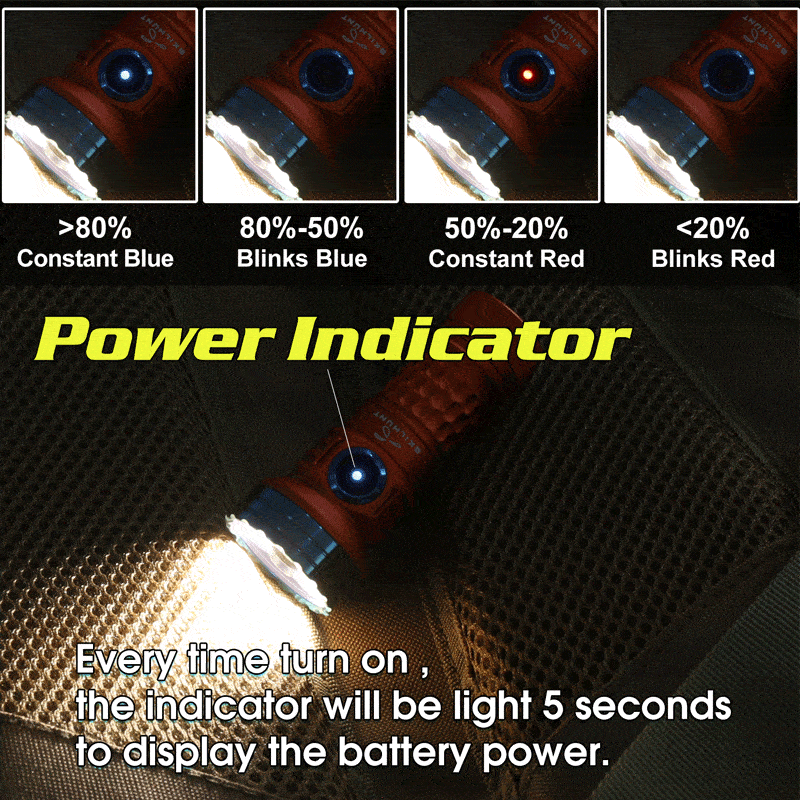

Power indicator
Every time turn on , the side indicator will be light 5 seconds to display the battery power.
Constant blue indicator: 100%~80% power
Blinks blue indicator: 80%~50% power
Constant red indicator: 50%~20% power
Blinks red indicator: 20%~0% power

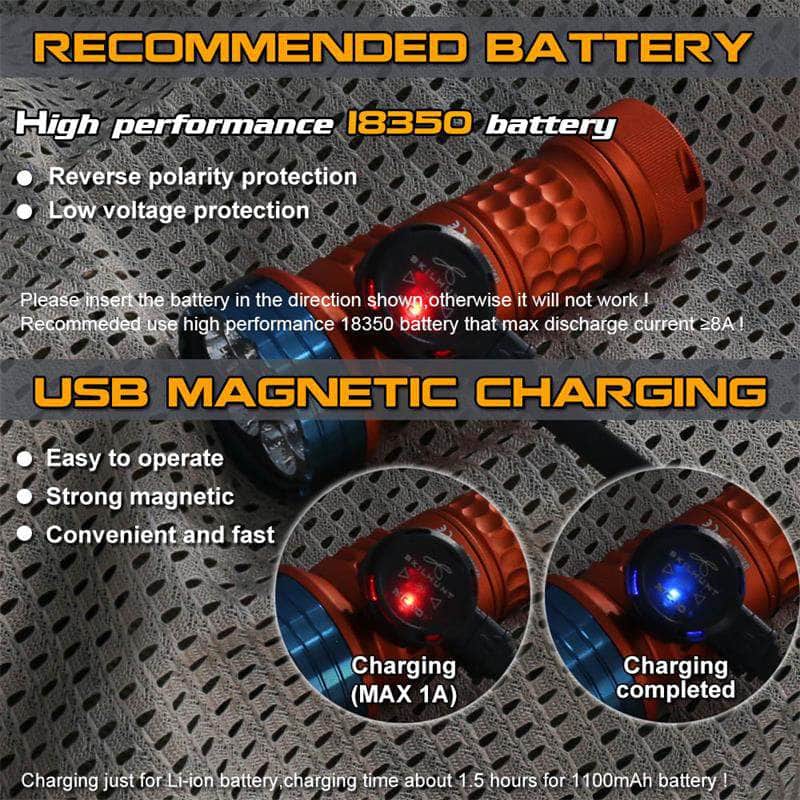

Connect the magnetic charging cable to an external USB power source,
then attach the other end of the cable to the charging port of the light
(Recommeded USB power no less than 5W (5V 1A) )
The red indicator means charging, when the battery charging completed,
change to blue indicator.
!!! Rechargeable function only for one 18350 (3.6V / 3.7V) rechargeable lithium battery!
When the battery is incorrectly insert the light,chagring will damage the charging circuit.
Caution:
Please do not point the lighted flashlight to the eyes of people or animals.
Please do not cover the light head when the flashlight is on, or place the flashlight head
on the ground. The radiation energy of the flashlight may cause damage to the flashlight
itself, or even result in burning to other materials.
Please do not use the turbo mode continuously when the environmental temperature is
high in case the flashlight body is too hot to hold.
Please do not put the light with magnetic items such as bank cards and mobile phones.
Notice:
Before operating this product, please read the enclosed User Manual completely.
If the product is left unused or carried and transported, please lock the button or slightly
loosen the tail thread to avoid accidentally activating the flashlight.
When the product is used in a low-temperature environment, please try and keep it warm.
If the temperature is too cold, it may not affect the output and runtime.
