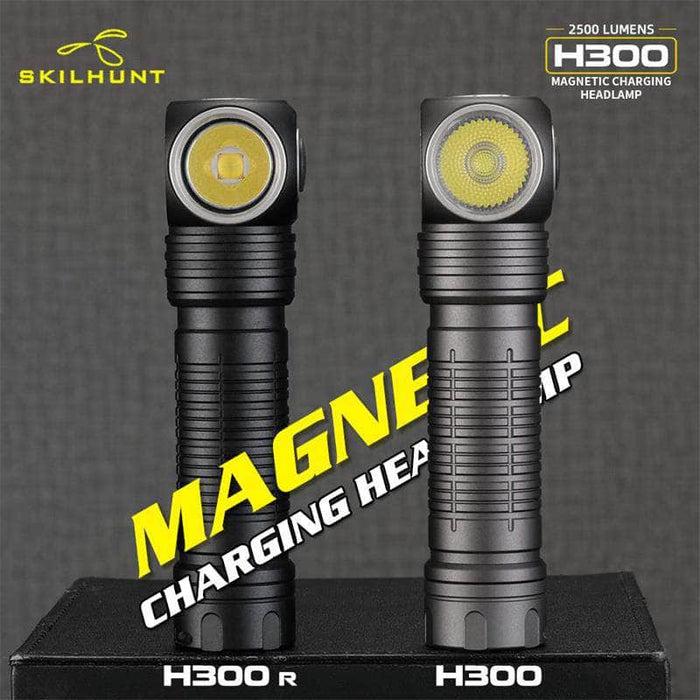

Skilhunt H300 USB Rechargeable Headlamp
LED: CREE XHP50.2 Cool White / Neutral White

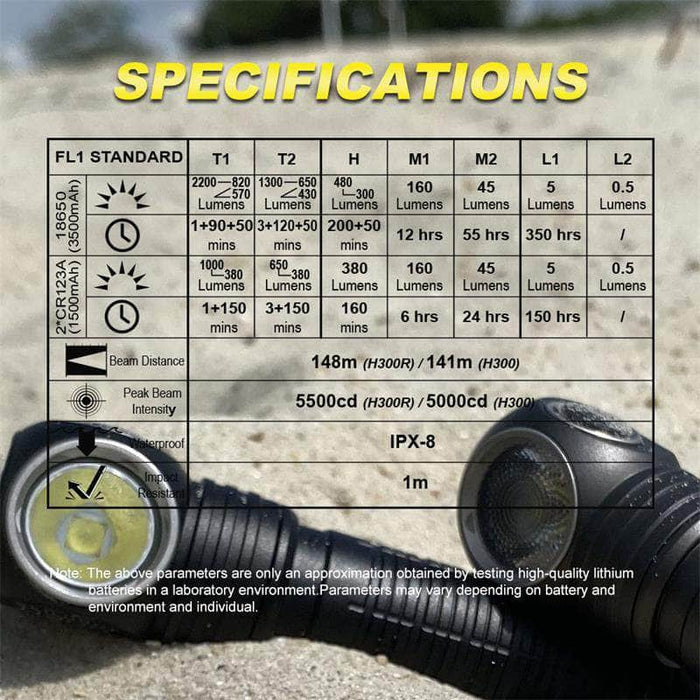

Max output: ANSI 2200 Lumens / 2500 LED Lumens
Max beam distance: 148 meters (H300R) / 141 meters (H300)
Max peak beam intensity: 5500cd (H300R) / 5000cd (H300)
Impact resistant: 1 Meter
Battery: 1×18650 , 2x CR123A
Rated Range: 2.7V ~ 8.4V

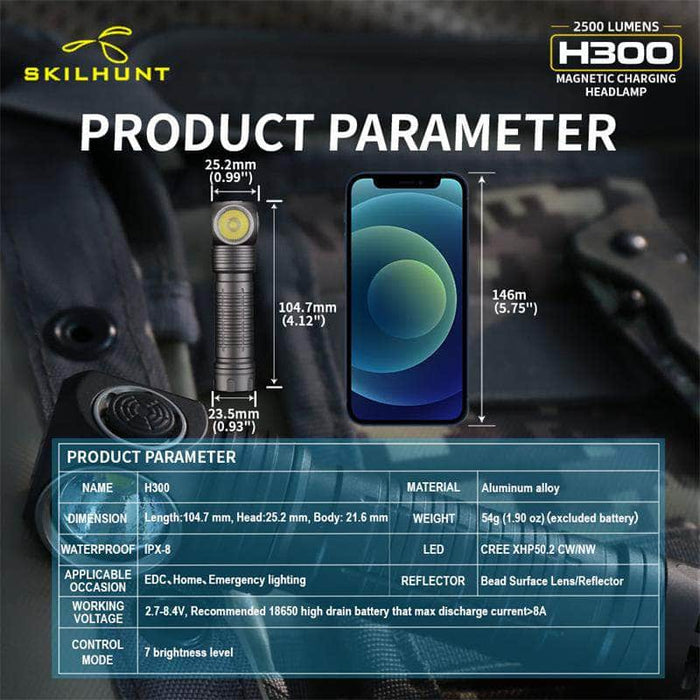

What are the dimensions of the Skilhunt H300 Magnetic Rechargeable LED Headlamp?
Length: 104.7mm / 4.12 inch
Head diameter: 25.2mm / 0.99 inch
Body diameter: 21.6mm/0.85 inch
Weight: 54g / 1.90 oz (without battery)

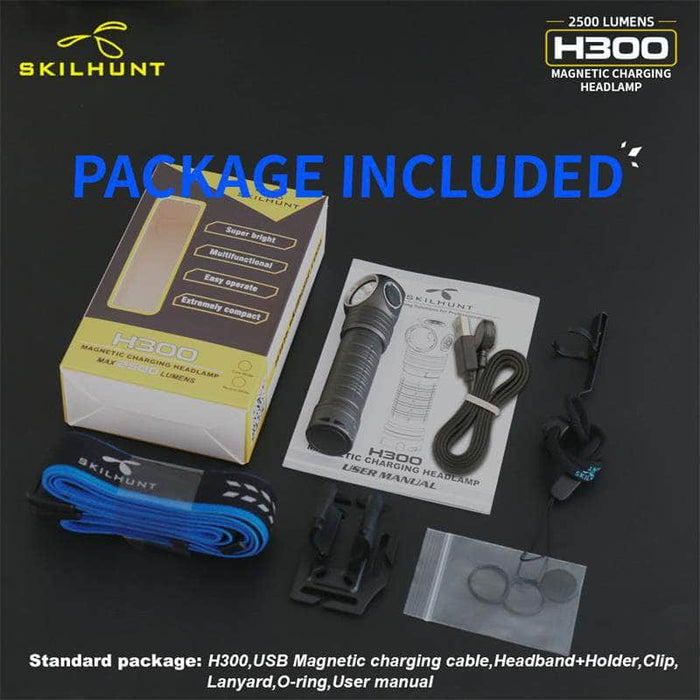

What is included with the purchase of the Skilhunt H300 USB Rechargeable Headlamp?

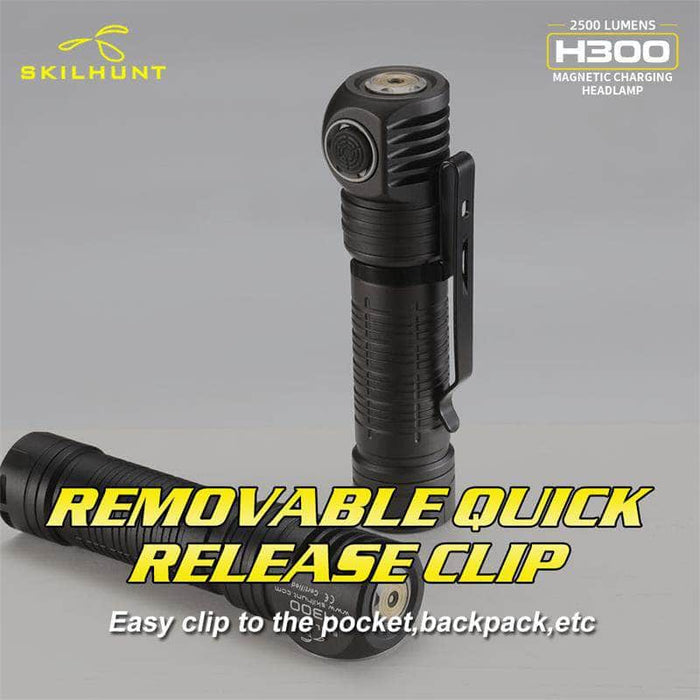

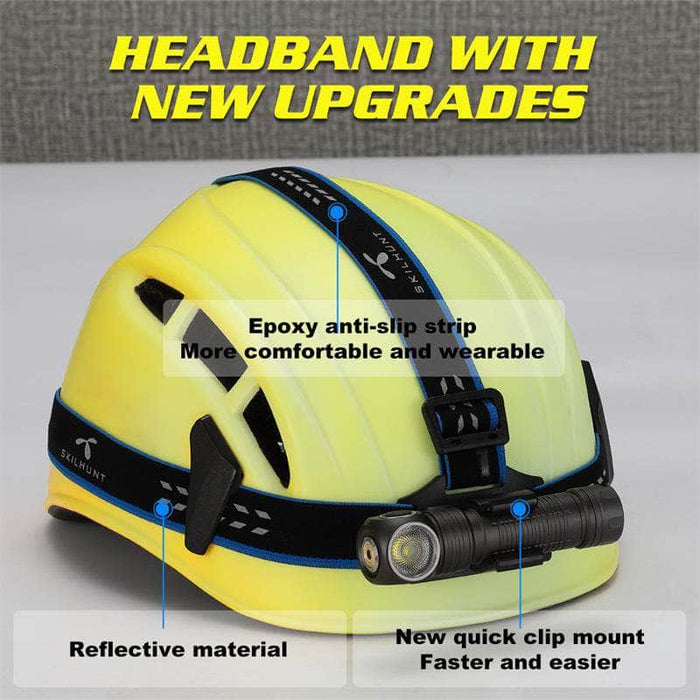

Accessories: Headband, clip, lanyard, magnet replace rubber pad, Operator’s manual, Spare O-ring
How do you operate the Skilhunt H300 USB Rechargeable Flashlight?

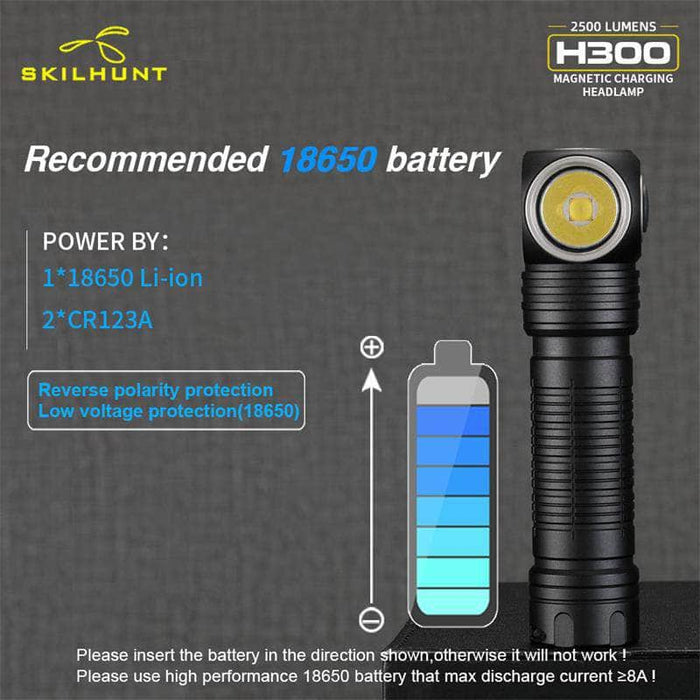

Battery installation & Replace magnet Insert the battery positive pole toward the light head, otherwise, it will not work. Ensure when the light turns on, the beam is directed away from the eyes. When carrying the light with Bankcards(magnetic) or cell phone, should remove the magnet and add then rubber pad.

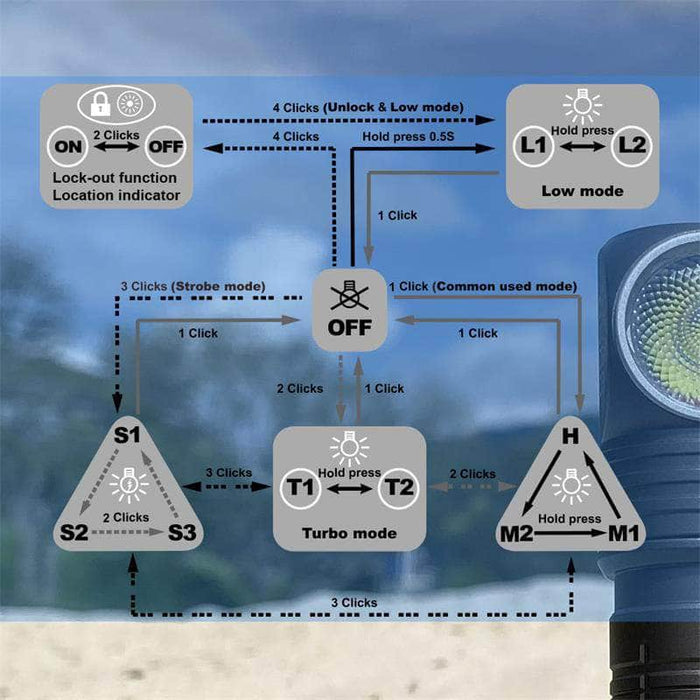

Turn-ON/OFF & Mode transfer When the H300 is OFF status:
Click the switch to Common used (H-M1-M2) mode.
Quickly double-click the switch to Turbo(T1/T2) mode.
Quickly triple click switch to Strobe(S1/S2/S3) mode.
Hold press switch 0.5 seconds to Low(L1/L2) mode.
When the Skilhunt H300 headlamp was ON(any mode) status:
Click switch to turn off.
When the Skilhunt H300 headlamp is on ( T1/T2, H/M1/M2, L1/L2 )
Press and hold the switch to automatically cycle, the level is selected when the side switch has been released, turn off memorized.
When the Skilhunt H300 headlamp was on (H/M1/M2, L1/L2 )
Quickly double clicks switch tranfer Common used mode(H/M1/M2) to Trubo(T1/T2), repeat quickly
double clicks switch back to Common used mode(H/M1/M2)
Quickly triple clicks switch transfer Strobe mode, repeat quickly triple clicks switch back to previous mode.
When the Skilhunt H300 headlamp is ON (S1/S2/S3)
Quickly double clicks switch tranfer S1-S2-S3, turn off memorized.

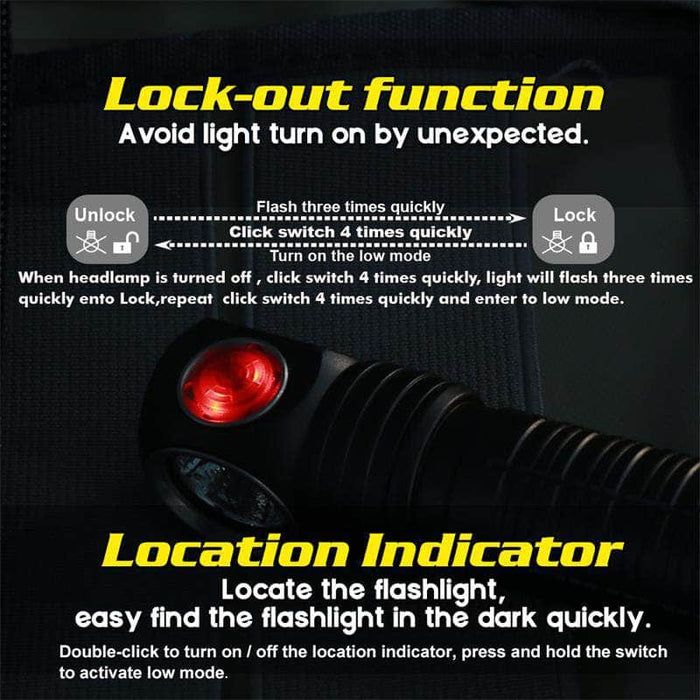

Location indicator & Lock-out function
when turn off the flashlight, quickly click switch 4 times, location indicator switch on and lock-out function
activation at same time,the indicator light flash every second. Double clicks can switch the indicator on/off,
Quickly click switch 4 times, switch button unlock and enter into Low(L1) mode.

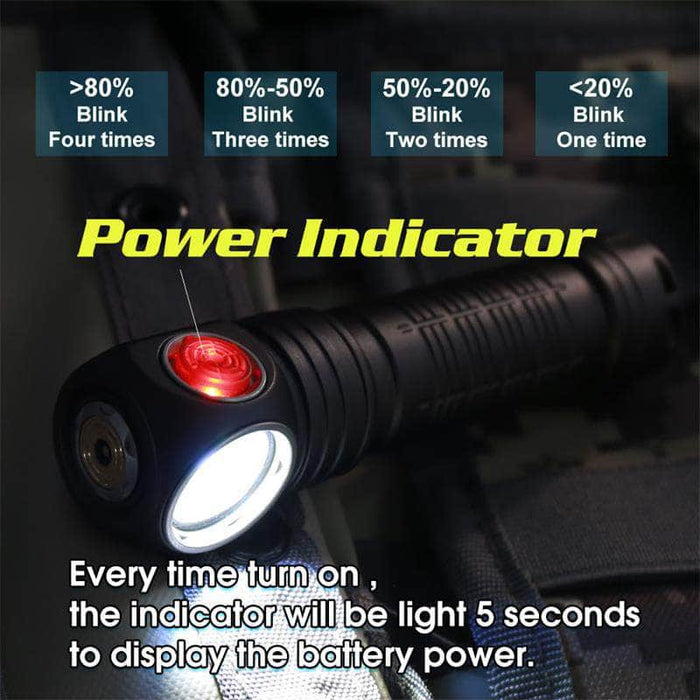

Power indicator & Low voltage indication
Every time turn on , the side indicator will be light 5 seconds to display the battery power.
4 blinks: 100%~80% ,
3 blinks: 80%~50% ,
2 blinks: 50%~20% ,
1 blinks: 20%~0.
When the battery voltage drop down lower than 3.0V,indicator flash twice every 2 sec.
the light fast flash every 30 seconds at same time.
When the battery voltage drop down lower than 2.7V,the light will cut off.

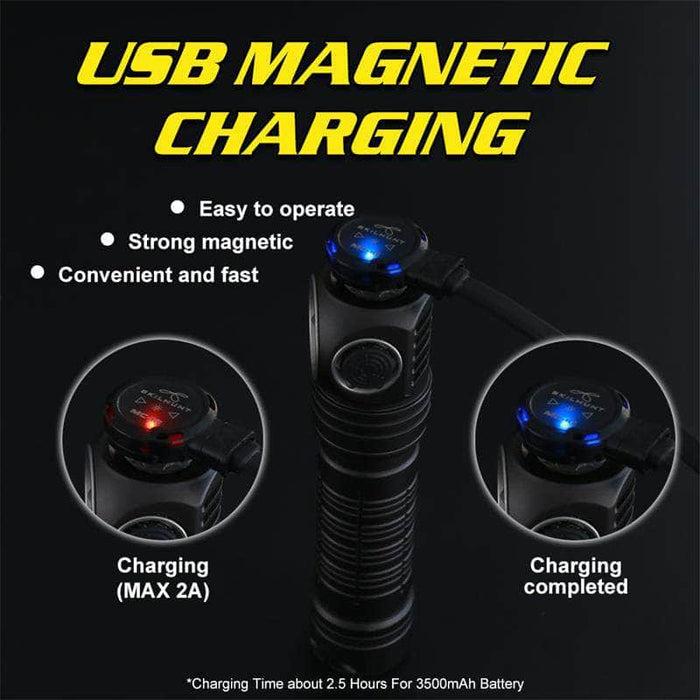

How do you charge the Skilhunt H300 USB Rechargeable Headlamp?
In charging, the red indicator constant light on, when the battery is almost at full charge, the indicator will change to constant blue light.
What are some of the features of the Skilhunt H300 USB Rechargeable Headlamp?

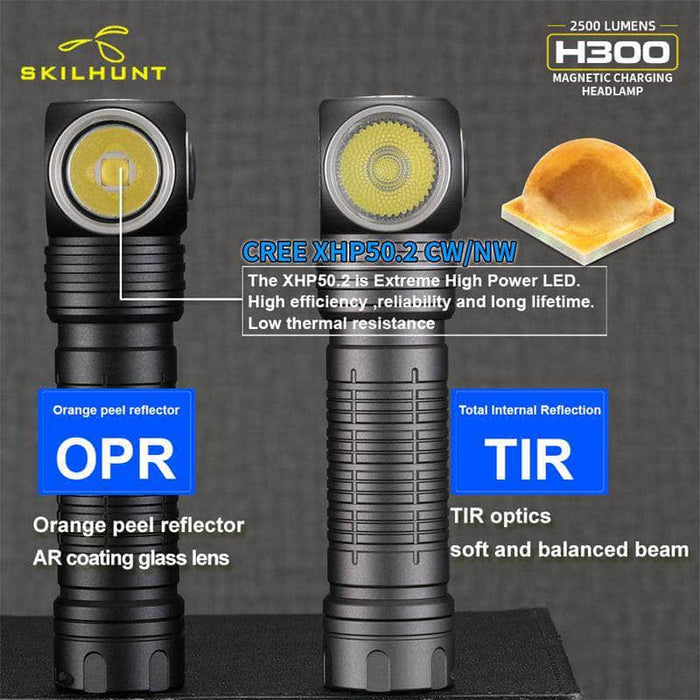

- Super bright & latest CREE XHP50.2 LED, Max 2500 LED lumens. High-Performance, High-Efficiency, and energy conservation.
- New U.D.O.C Reflector. Increased reflectivity over 10%., Efficiency reflection, perfect beam shot, excellent structure, and temperature resistance.

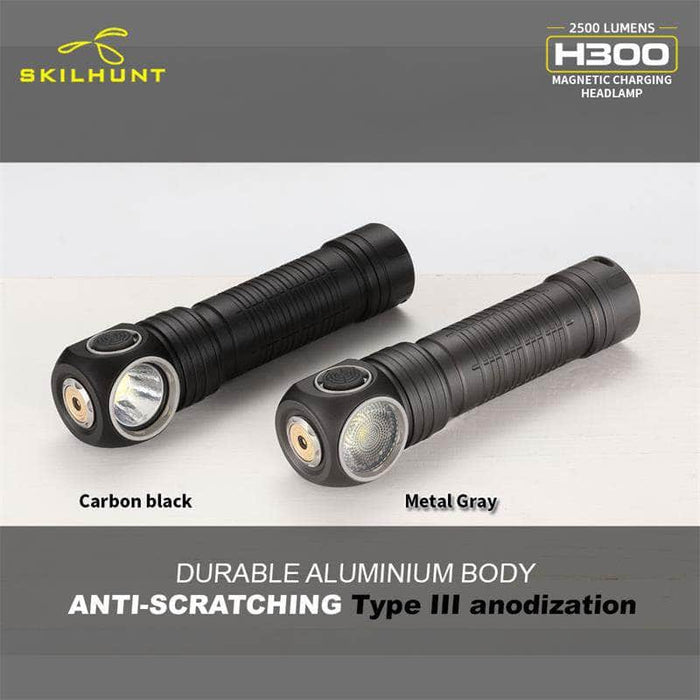

- Rugged indestructible aluminum body with anti-scratching type III hard anodization
- Multi-level dissipating heat design and copper starboard, excellent heat dissipation. Flashlight head integrated construction, high thermal conductivity.
- Side switch button to transferring mode, user-friendly interface to adjust output.
- Intelligent dynamic detection of voltage to balance and adjust brightness, safe and efficient use.
- A wide input range provides more choices of batteries. High-efficiency driver circuit, no visible flash in any mode.
- The automatic memory function makes it quick to remember last used setting and can be preset to specific output mode for instant access.
- Intelligent temperature control technology for flashlight stable and safe use.
- Reverse polarity protection, to protect from improper battery installation.
- Lock-out function. Avoids light turn on by unexpected.
- Location indicator help easy to find the light in dark.
- Magnetic tail, can be used on many special occasions, use as candlelight, etc.
