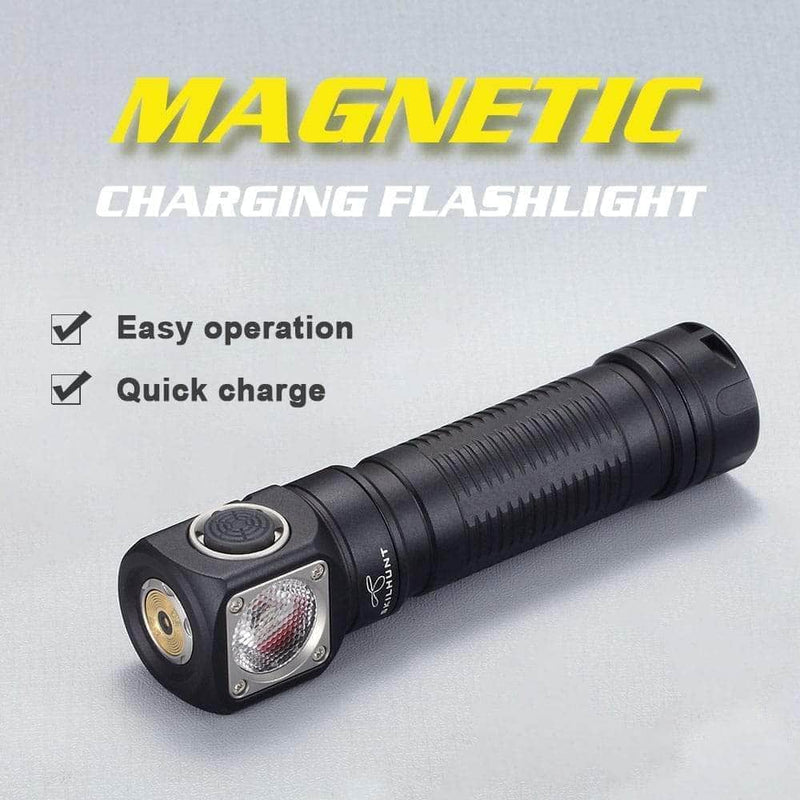

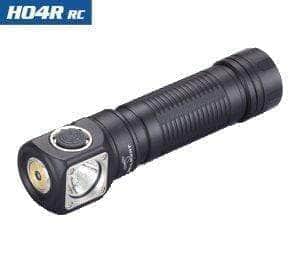

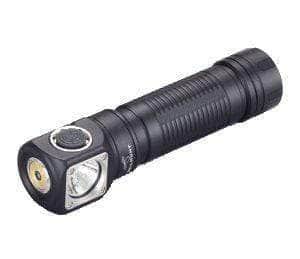

Skilhunt High-CRI 4000k H04R RC USB Magnetic Rechargeable LED Headlamp


H04R RC USB Magnetic Rechargeable LED headlamp

Spare charging cable can be found here.
_______________________________________
Double UI
Mode group A, Keep the H04R RC main operation way.
Mode group B, Customized operation way with editable.
________________________________________

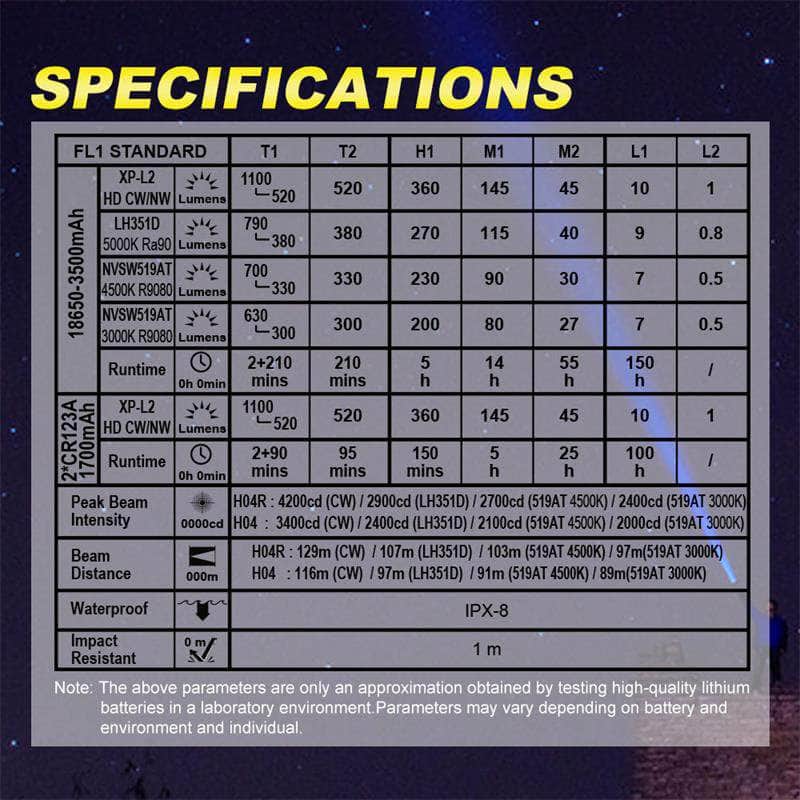

LED: High-CRI 4000K Samsung LH351D LED
Waterproof: IPX-8
Impact resistant: 1 Meter

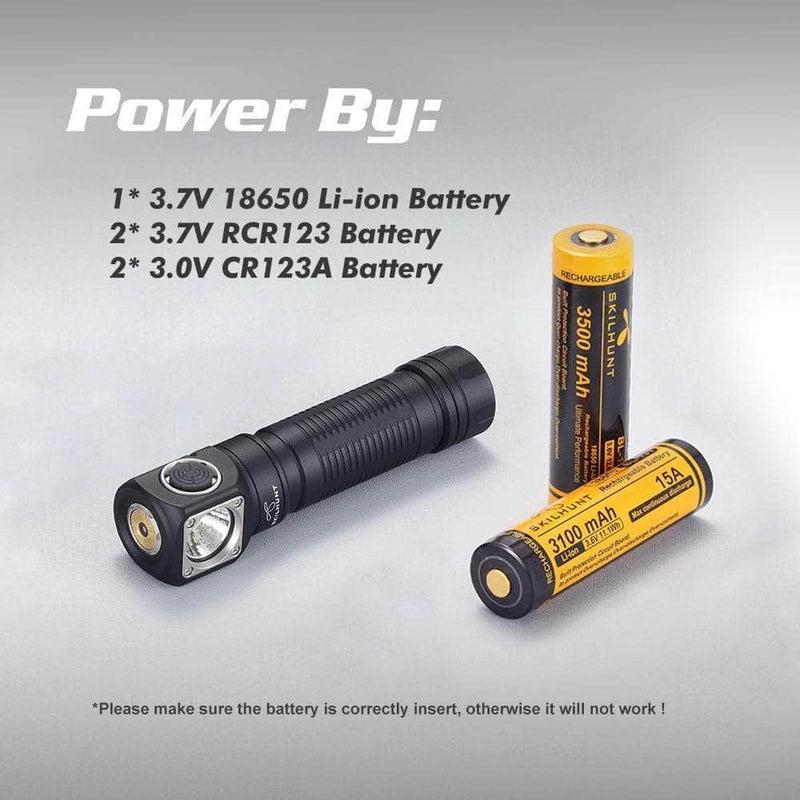

Battery: 1×18650 , 2x CR123A , 2x RCR123A
Rated Range: 2.7V ~ 8.4V

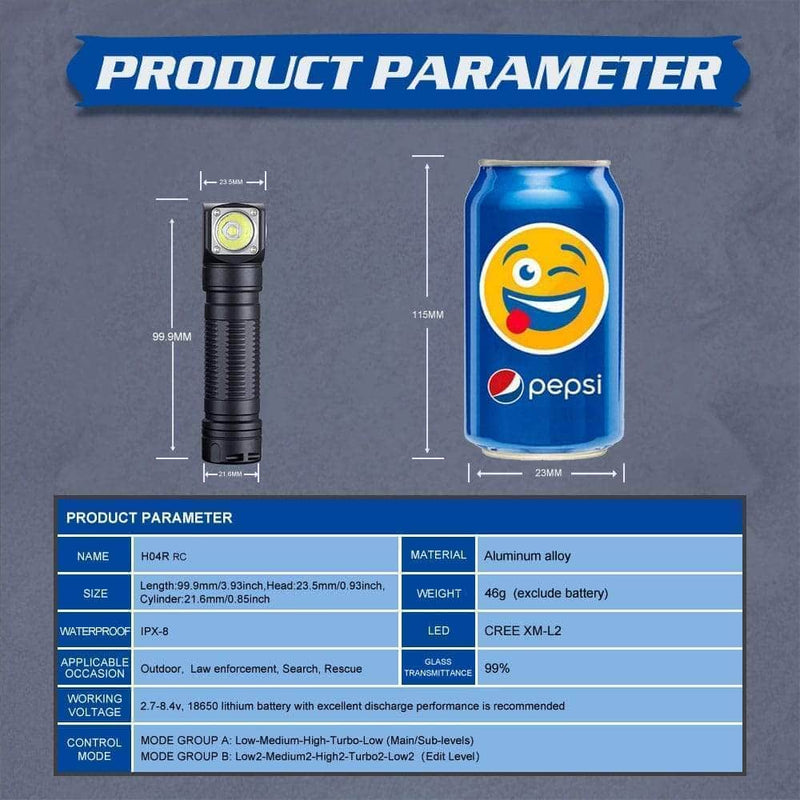

Dimension:
Length 99.9mm / 3.93 inch
Head diameter 23.5mm / 0.93 inch
Body diameter 21.6mm/0.85 inch

Weight: 48g / 1.69z (without battery)

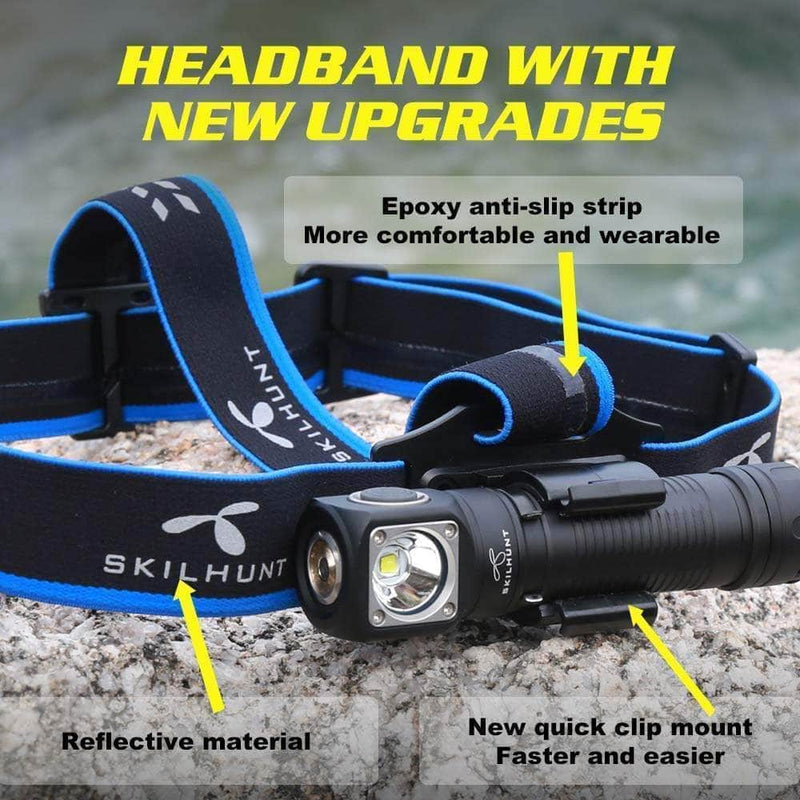

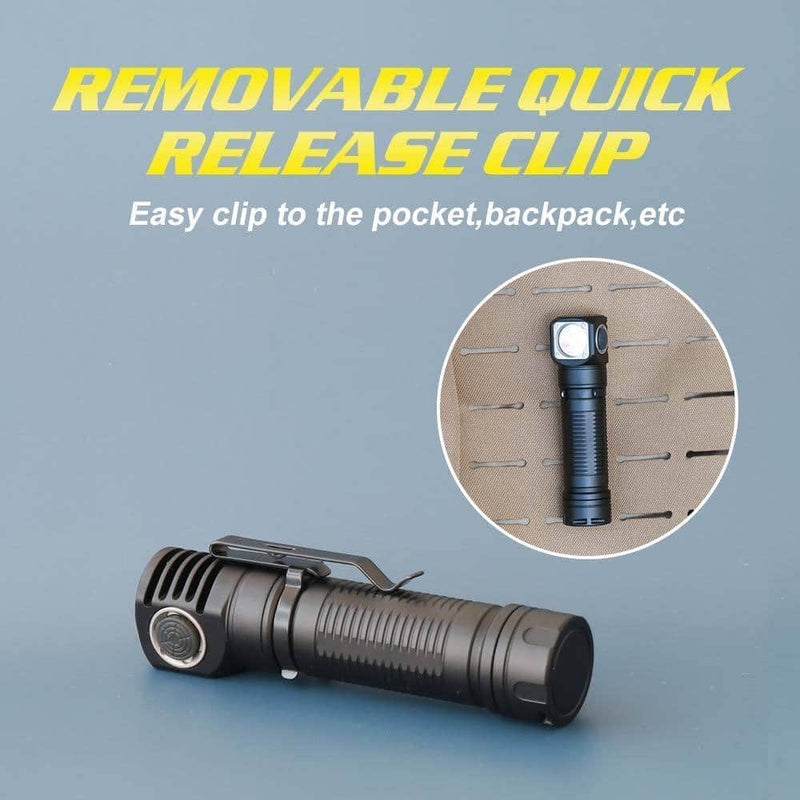

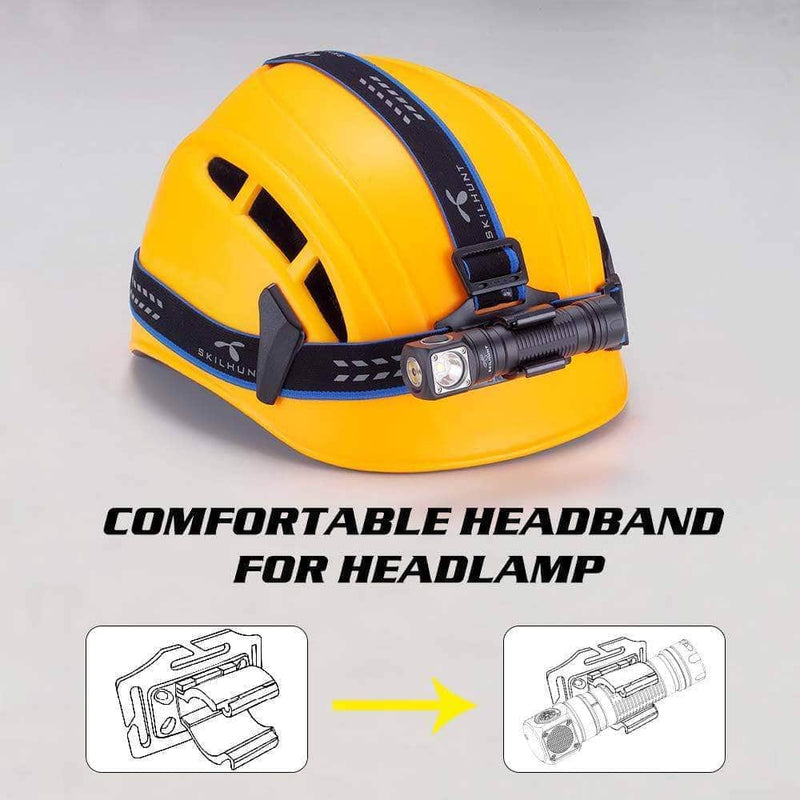

Accessories: Headband, clip, lanyard, magnet replace rubber pad, Operator’s manual, Warranty card, Spare O-ring
________________________________________
Operation

1. Battery installation & Replace magnet: Insert the battery into the flashlight, the battery positive pole toward the light head.
Ensure batteries are inserted correctly, the flashlight will not operate with incorrectly inserted batteries. Ensure when the light turning on, the beam is directed away from the eyes.
When taking the light with Bankcards(magnetic) or cell phone, should replace magnet with rubber pad.
________________________________________
2. Turn-ON/OFF & Mode transfer

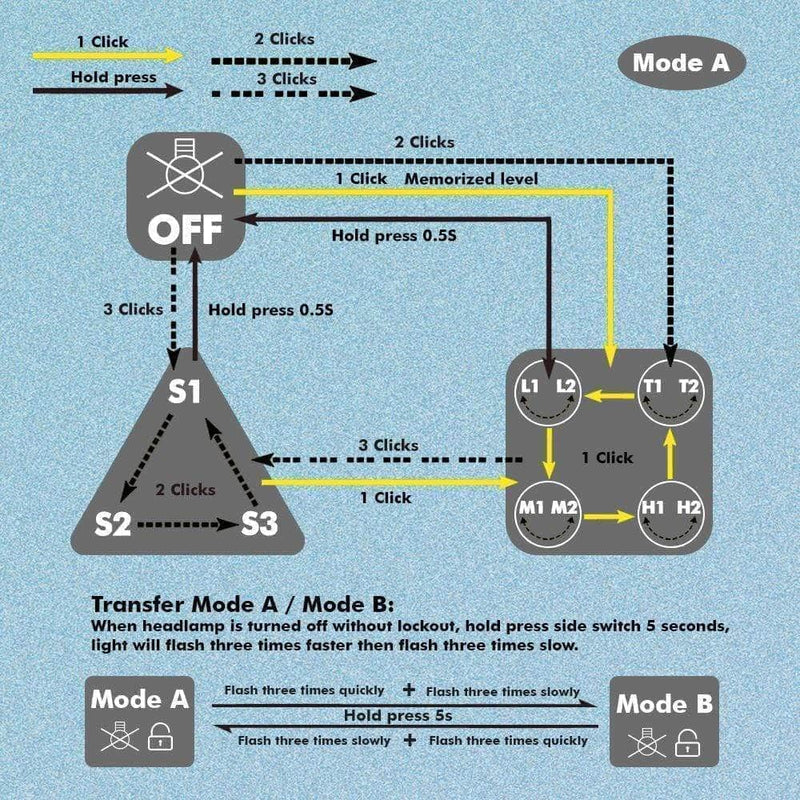

Transfer Mode A / Mode B:
When headlamp is turned off without lockout, hold press side switch 5 seconds, the light will flash three times faster then flash three times slow.
________________________________________
Mode Group A
When the flashlight was OFF status:
Click the switch to memorized brightness level.
Quickly double click switch to Turbo(T1/T2).
Quickly triple-click switch to Strobe(S1) mode.
Press switch 0.5 seconds to Low(L1/L2) mode.

When the flashlight was ON(any mode) status:
Press and hold the side switch 0.5 seconds to turn off.

Brightness & mode selection:
Brightness level:
Press side switch to Low-Mid-High-Turbo, cycle.
Quickly double press the side switch to Sub-level(i.e between L1 & L2), turn off memorized the last brightness.
Quickly triple press to Special modes.

Special modes:
Quickly triple press the side switch to Strobe (S1), then double-click to switch S1/S2/S3 mode, Press side switch back to previous brightness level.
________________________________________

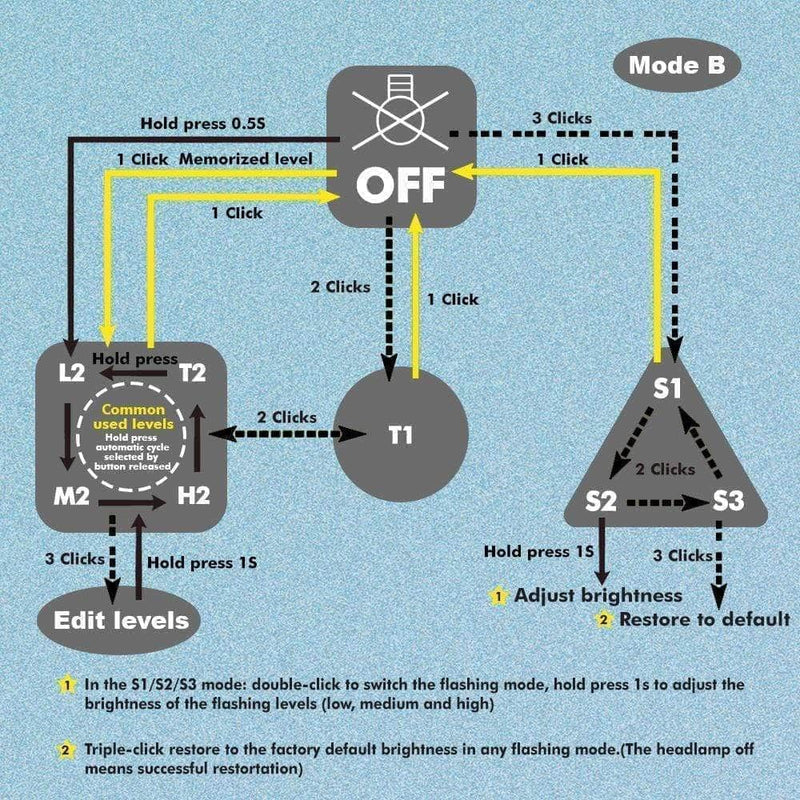

Mode Group B
When the flashlight was OFF status:
Click the switch to memorize the brightness level.
Press switch 0.5 sec, to L2.
Quickly double click switch to Turbo(T1) mode.
Quickly triple press to Special modes(S1).

When the flashlight was ON(any mode) status:
Click the switch to turn off.
On Common used levels(Editable):
Hold press switch, brightness levels automatic cycle, and selected mode by button released. Click the switch to turn off.
Quickly triple press enter to Edit levels.
On Special modes:

Quickly double click switch to transfer mode S1/S2/S3,click switch to turn off.
Hold press side switch 1 second to adjust the S1/S2/S3 brightness output level in Low, medium, or high.
Quickly triple press to restore to the factory default flash modes.
________________________________________

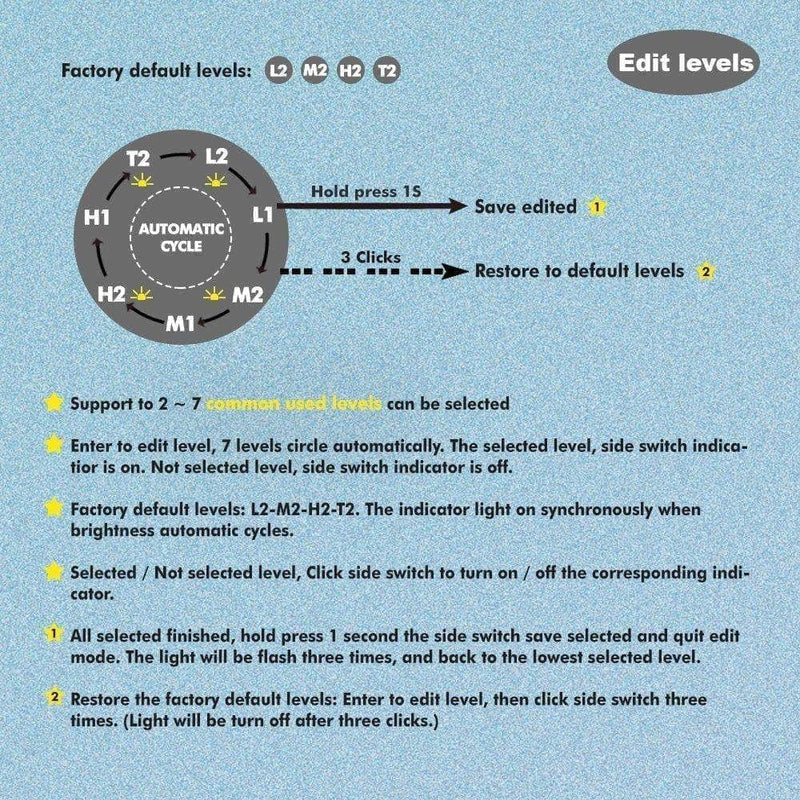

Edit Levels:
— Support to 2 ~ 7 common used levels can be selected
–Enter to edit level, 7 levels circle automatically. The selected level, side switch indicator is on. Not selected brightness, side switch indicator is off.
–Factory’s default levels: L2-M2-H2-T2. The indicator light on synchronously when levels automatic cycles.
–Selected / Not selected brightness, Click side switch to turn on / off the corresponding indicator.

-. All selected finished, hold press 1 second the side switch save selected and quit edit mode. The light will be flash three times, and back to the lowest selected level.
-. Restore the factory default levels: Enter to edit level, then click side switch three times. (Light will be turned off after three clicks.)
________________________________________

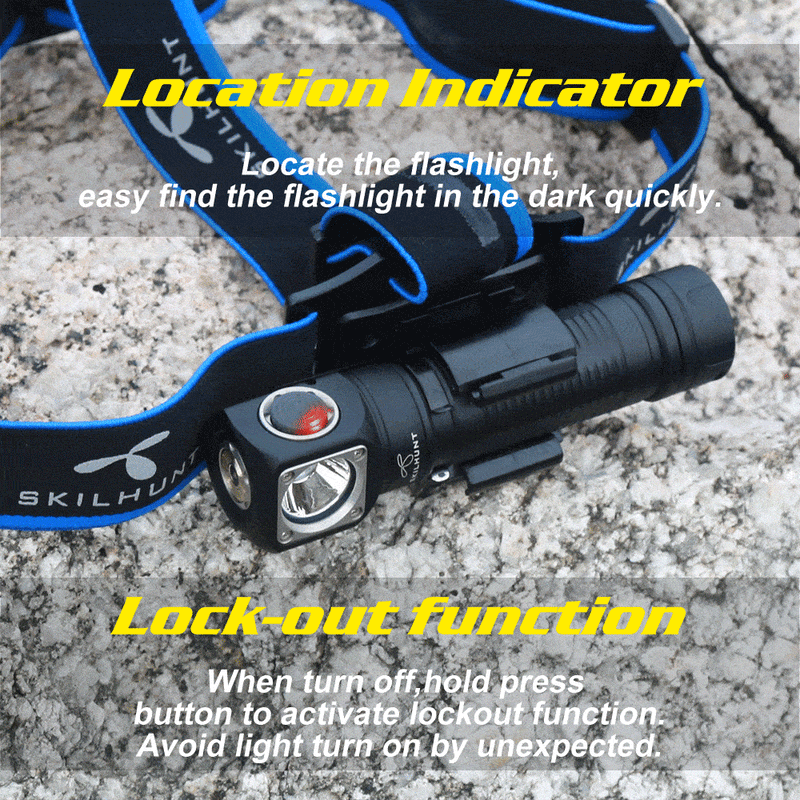

Location indicator & Lock-out function
When turning off the flashlight, press switch 1.5 seconds, location indicator switch on and lock-out function activation at the same time, click double click the switch to turn on/off the indicator, the indicator light flashes every second, locate the flashlight, Easily find the flashlight in the dark quickly. Press switch 1.5 sec, switch unlock, and enter into low mode.
________________________________________

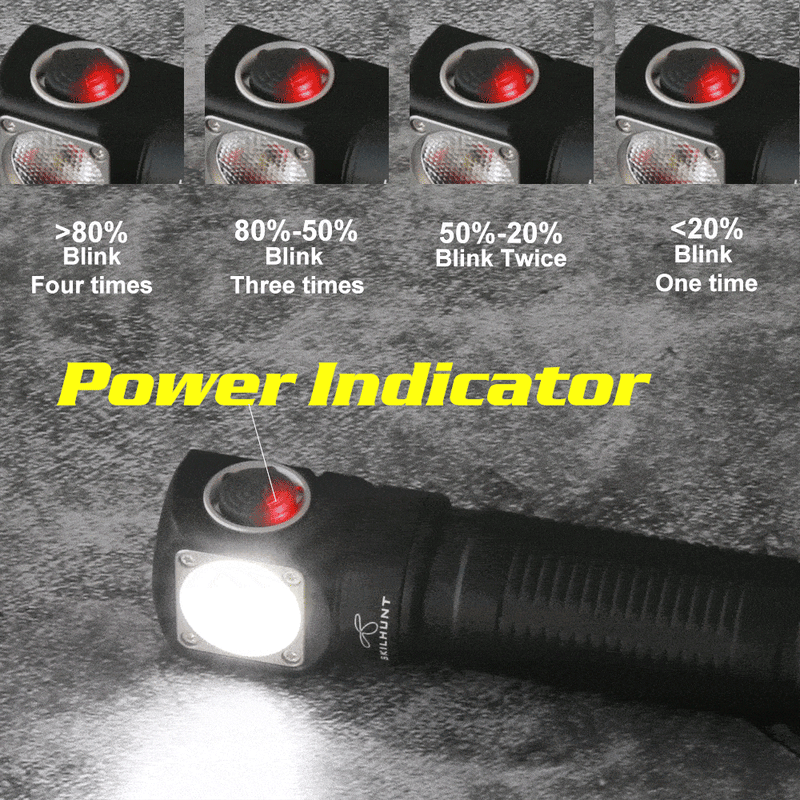

Power indicator
Every time turn on, the side indicator will be light 5 seconds to display the battery power.
Blink four times: battery power in 100%~80%;
Blink three times: battery power in 80%~50%;
Blink twice: battery power in 50%~20%;
Blink one time: battery power below 20%.

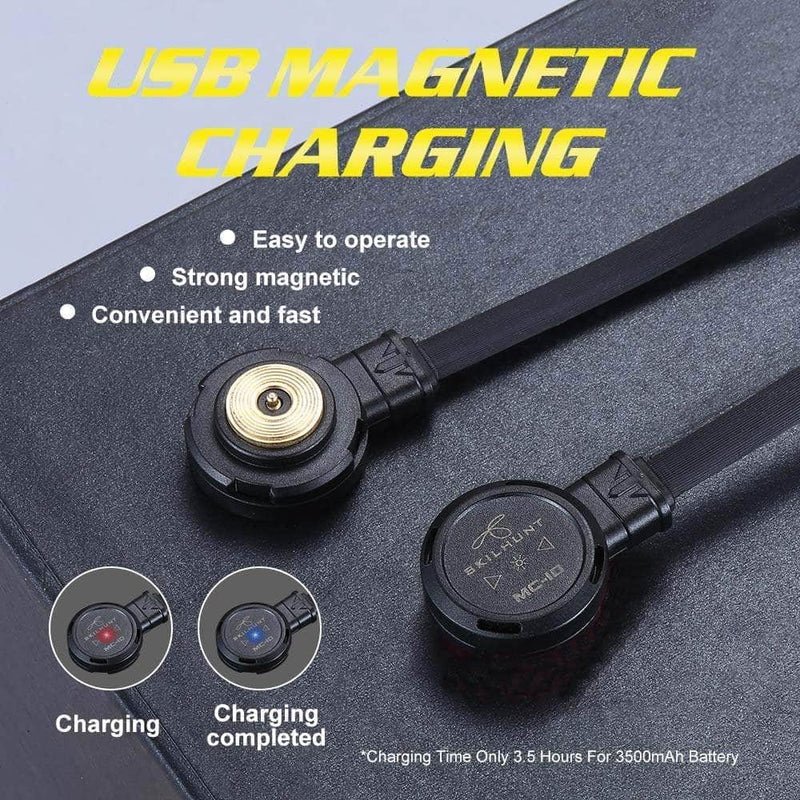

Charging instructions and notices
In charging, the red indicator constant light on, when battery almost full charge, indicator change to constant blue light. When the red indicator flash, please check battery contacts good or not.
Warning: Rechargeable function only for one 18650 (3.6/3.7V) rechargeable lithium battery! Please make sure the battery is correctly inserted, otherwise, it will damage the charging system.

Features
1. Super bright & high-CRI 4000K Samsung LH351D LED, Max 1200 lumens. High-Performance, High-Efficiency, and energy conservation.

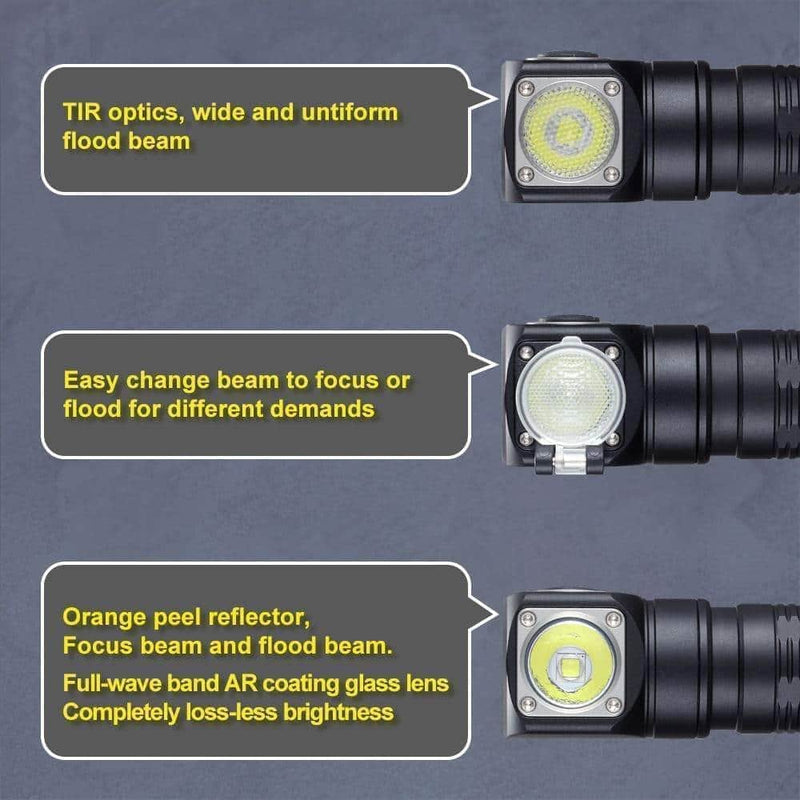

2. New U.D.O.C Reflector. Increased reflectivity over 10%., Efficiency reflection, perfect beam shot, excellent structure, and temperature resistance.

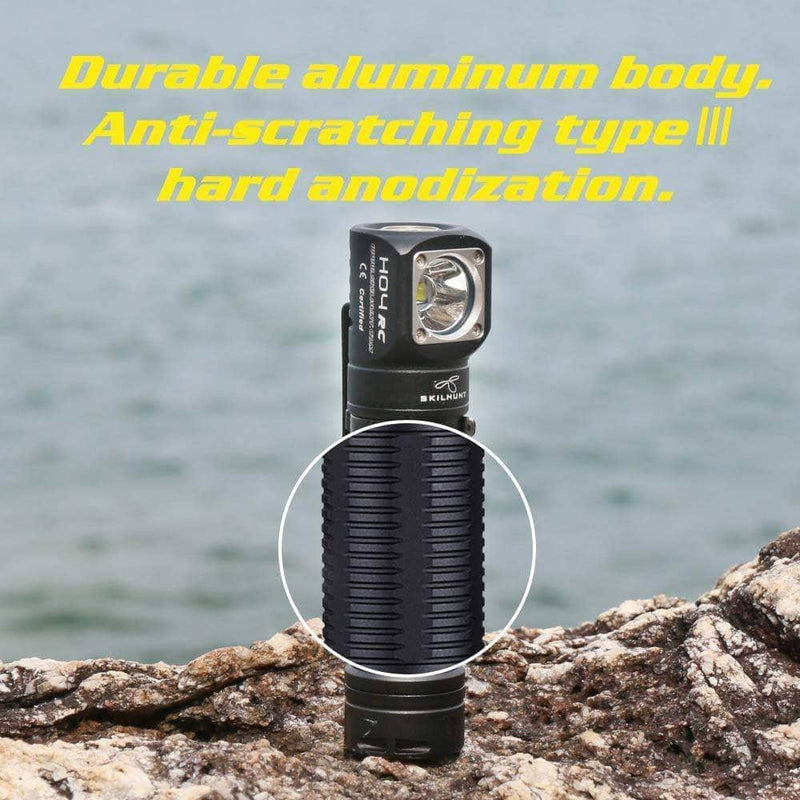

3. Rugged indestructible aluminum body with anti-scratching type III hard anodization

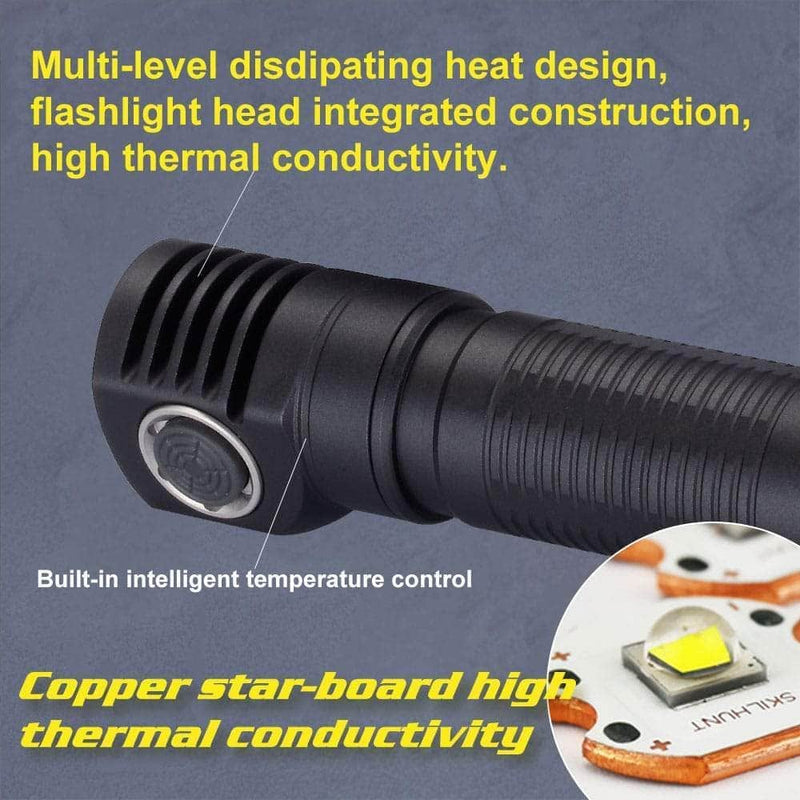

4. Multi-level dissipating heat design and new copper starboard, excellent heat dissipation. Flashlight head integrated construction, high thermal conductivity.
5. Side switch button to transferring mode, user-friendly interface to adjust output.
6. Two-mode groups plus editable brightness, more use options for choose.
7. The wide input range provides more choices of batteries. High-efficiency driver circuit, no visible flash in any mode.
8. Automatic memory function, remember last used setting, and can be preset to specific output mode for instant access.
9.Intelligent temperature control technology for flashlight stable and safe use.
10. Reverse polarity protection, to protect from improper battery installation.
11. When turning off, hold press button to activate the lockout function. Avoid light turn on by unexpected.
12. When light lockout, the location indicator will flash, easily get the light in dark.

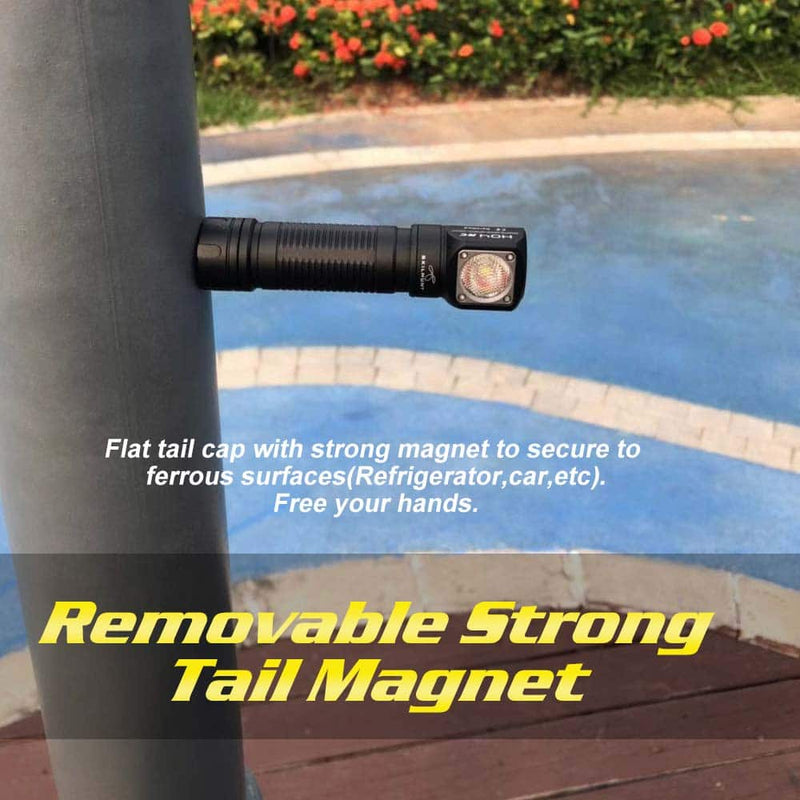

13. Magnetic tail, can be used on many special occasions, use as candlelight, etc.
