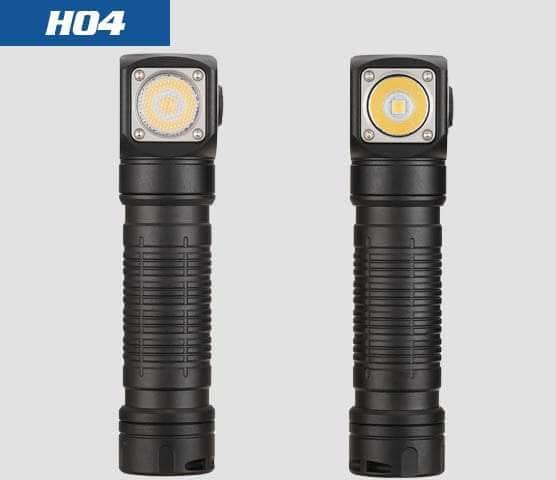

Skilhunt H04 headlamp front views showing TIR and reflector LED configurations

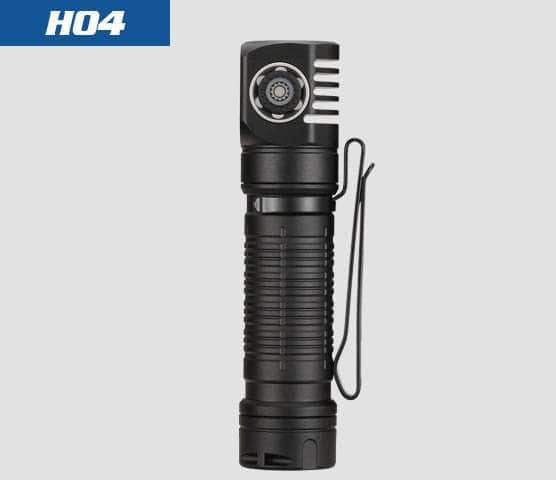

Rear view of the Skilhunt H04 headlamp with removable pocket clip

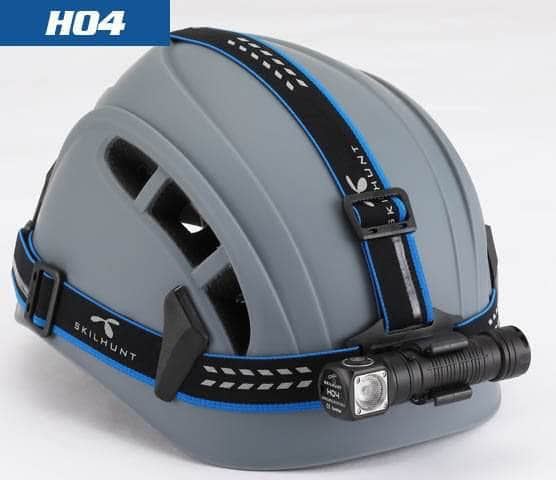

Skilhunt H04 Nichia headlamp mounted on a helmet with headband

Skilhunt H04 Nichia 519A 5000K High-CRI Headlamp

$ 44.90 - $ 54.90
$ 54.90
$ 44.90 - $ 54.90
$ 54.90
LED: Nichia 519A 5000K R9080
EVVA 3500mAh Protected 10A 18650 Included?: Yes Include Battery

Free shipping for orders over $100. Any order containing lithium batteries is at risk of abnormal shipping delays. UPS is highly recommended for any order containing batteries. UPS Ground is required for orders only containing batteries and not meeting the free shipping threshold even if other options are available during checkout.

by Skilhunt

Skilhunt H04 Nichia 519A 5000K High-CRI Headlamp

The Skilhunt H04 is a compact right-angle headlamp and removable handheld light built around a high-color-rendering Nichia NVSW519AT 5000K R9080 LED. This listing is for the H04 only; it does not include the H04R reflector model and does not have internal charging.

Key specifications

  • LED: Nichia NVSW519AT 5000K R9080
  • Maximum output: ANSI 800 lumens
  • Maximum runtime: Few months
  • Maximum beam distance: 123 meters
  • Maximum peak beam intensity: 3,800 cd
  • Waterproof rating: IPX-8
  • Impact resistance: 1 meter
  • Battery compatibility: 1×18650, 2×CR123A, or 2×RCR123A
  • Rated range: 2.7V–6.5V
  • Dimensions: 99.9 mm length; 23.5 mm head diameter; 21.6 mm body diameter
  • Weight: 46 g / 1.62 oz without battery

Included accessories

Headband, clip, lanyard, magnet-replacement rubber pad, operator’s manual, warranty card, and spare O-ring.

Features

  • Rugged aluminum body with Type III hard-anodized finish
  • Side-switch interface with memorized brightness
  • Low, main, turbo, and strobe mode groups
  • Lockout mode with location indicator
  • Low-voltage indicator and reverse-polarity protection
  • Intelligent temperature control
  • Magnetic tailcap; the magnet can be replaced with the included rubber pad
  • Removable headlamp mount for handheld use

Manufacturer specifications

Skilhunt H04 and H04R ultra-compact headlamp comparison

Skilhunt H04 and H04R product dimensions and specifications

Skilhunt H04 Nichia 519A LED neutral and warm white color temperature guide

Skilhunt H04 TIR optic and H04R orange-peel reflector comparison

High-CRI versus standard LED color rendering comparison for the Skilhunt H04

Skilhunt H04 battery compatibility with one 18650 or two CR123A cells

Skilhunt H04 hard-anodized aluminum body finish

Skilhunt H04 magnetic tailcap feature demonstration

Skilhunt H04 right-angle headlamp feature demonstration

Skilhunt H04 removable pocket clip

Skilhunt H04 adjustable headband and mounting system

Skilhunt H04 side-switch operation and brightness controls

Skilhunt H04 IPX-8 waterproof construction

Skilhunt H04 headlamp included accessories

Skilhunt H04 headlamp retail packaging and package contents

Operation

From off, single-click for the memorized main level, hold for the low group, double-click for turbo, or triple-click for strobe. While on, hold to cycle levels within the active group. Four rapid clicks from off enter or exit lockout mode.
