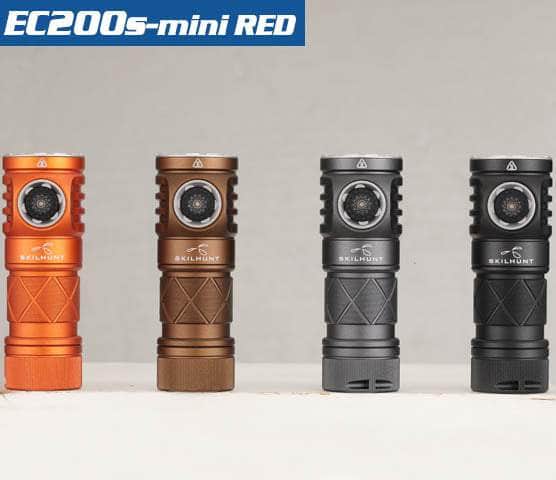

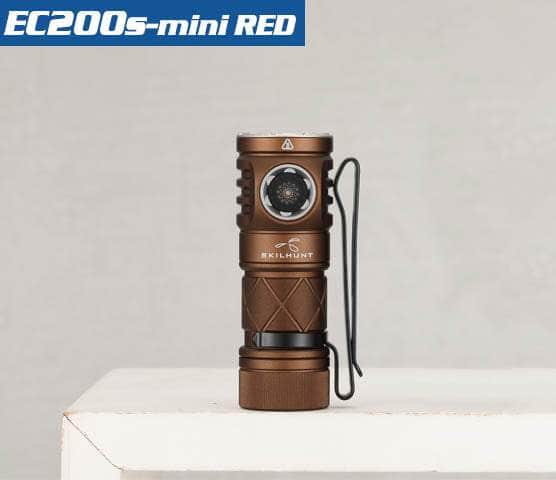

Skilhunt EC200S-Mini Red
Experience unparalleled illumination with the EC200S-Mini RED, a powerful and versatile EDC flashlight that promises to be your perfect companion for all outdoor activities, from running and camping to daily travel needs. This compact marvel delivers an impressive 2100 lumens of cool white light and 320 lumens of red light, thanks to its dual CREE XP-G4 Cool White LEDs and XPE-2 RED LED. For those who prefer a more nuetral color temp, the Nichia 519A Neutral White LEDs offer 1400 lumens, also paired with the same vibrant red LED. The flashlight features a USB-C rechargeable design, making it incredibly convenient to keep powered up, and boasts a waterproof IPX-8 rating and impact resistance up to 1 meter.
Measuring just 71.0mm in length and weighing a mere 42.5 grams (excluding the battery), the EC200S-Mini RED is designed for portability without compromising on performance. It comes with essential accessories, including a USB-C charging cable, clip, lanyard, spare O-rings, and a user manual, ensuring you have everything you need right out of the box. The flashlight operates on a single 18350 battery and supports a range of 2.7-4.2V, with a recommended discharge current of ≥8A.
The intuitive user interface allows easy operation: a single press turns the light on and off, while multiple clicks and holds adjust the brightness and switch between modes, including turbo, strobe, and various red light settings. The EC200S-Mini RED also features a lock-out function to prevent accidental activation, a low voltage indicator to alert you when it's time to recharge, and an intelligent temperature control system for safe, stable use.
Crafted with an indestructible aluminum body and anti-scratching type III hard anodization, this flashlight is built to withstand the toughest conditions. Its high-efficiency driver circuit ensures no visible flash in any mode, and the automatic memory function remembers your last used setting for instant access. Additional features include a magnetic tail stand, a dual-color battery power indicator, and a reverse polarity protection system to guard against improper battery installation.
Whether you're navigating the great outdoors or need reliable daily illumination, the EC200S-Mini RED stands out as a top choice for enthusiasts and professionals alike, blending advanced technology with rugged durability in a sleek, portable package.
EC200S-Mini RED 2100 lumens White and Red beam USB-C Rechargeable Powerful EDC flashlight
EC200S is a portable and compact multifunctional light with convenient USB-C charging function. Providing powerful white and color light, suitable for various outdoor activities, running, camping, travel, and daily EDC needs as an ideal companion.
LED:

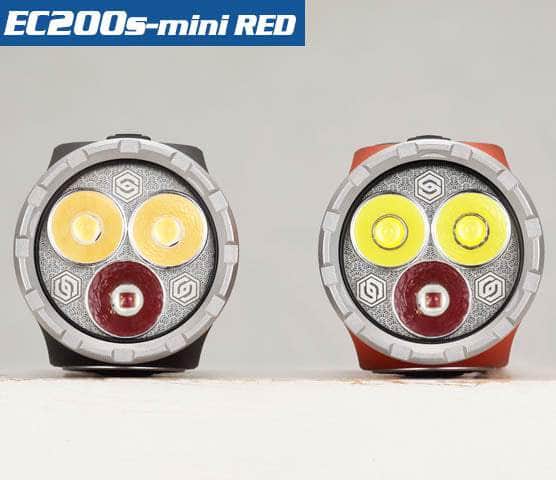

2 x CREE XP-G4 Cool White 6500K + 1 x XPE-2 RED 620-630 nm
2 x Nichia 519A Neutral White High CRI R9080 4500K + 1 x XPE-2 RED 620-630 nm
Max output:
CREE Cool White ANSI 2100 Lumens + Red 320 Lumens
Nichia Neutral White 4500K ANSI 1400 Lumens + Red 320 Lumens
Quiescent Current (μA) : 55
Waterproof: IPX-8
Impact resistant: 1 Meter
Battery: 1×18350
Rated range: 2.7-4.2V, (Recommended 18350 battery that max discharge current ≥8A)
Dimension: L71.0mm / 2.80″, Head diameter 25.0mm / 0.98 “.
Weight: 42.5 g / 1.50 oz (Excluded battery)
Accessories: USB-C Charging Cable, Clip, Lanyard, Spare O-rings, User manual.
How to use
1. ON/OFF
Press the button once to turn the light on and off. When the light is turned off, it will memorized current brightness level or mode.
2. CHANGE BRIGHTNESS LEVEL
Note: C = Click (press and release quickly), H = Hold (press and hold)
From OFF:
1C: Activates <Main Group> (H-M1-M2).
2C: Activates <Turbo Group> (T1/T2).
3C: Activates <Strobe Group> (S1/S2/S3).
4C: Activates <Lockout> (This stops the light from turning on accidentally).
H(0.5S): Hold the button for 0.5 seconds to enter into <Low Group>(L1/L2).
H(2S): Hold the button for 2 seconds to enter into <Red Group>(R1/R2/R3/R4).
1C&H:Activates <Red Group>(R1/R2/R3/R4).
From ON <Main Group>, <Turbo Group>, <Low Group>,<Red Group>
Press and hold the switch to automatically cycle, the level is selected when the side switch has been released, turn off memorized.
From <Main Group>
2C: Enter into <Turbo Group>, repeat operation to returns to <Main Group>.
3C: Enter into <Strobe Group>, repeat operation to returns to <Main Group>.
1C&H: Enter into <Low Group>, repeat operation to returns to <Main Group>.
2C&H: Enter into <Red Group>, repeat operation to returns to <Main Group>.
From <Strobe Group>, <Red Strobe Group>
2C: Quickly double clicks switch tranfer S1-S2-S3 / RS1-RS2-RS3, turn off memorized.
From <Red Group>
2C&H: R4 to L1/L2 <Low Group>, repeat operation to returns to <Red Group>.
2C&H: R3/R2/R1 to M2/M1/H <Main Group>, repeat operation to returns to <Red Group>.
3C: Enter into <Red Strobe Group>, repeat operation to returns to <Red Group>.
3.LOCK-OUT FUNCTION & LOCATION INDICATOR
When the flashlight is off , quickly click switch 4 times to access the button lockout mode
(location indicator activation at same time,the indicator light flash every 2 seconds.
Double clicks can turn on/off the indicator). Quickly click switch 4 times,the button unlock and activate Low mode.
4. LOW VOLTAGE INDICATOR
When the battery voltage drops below 3.0V, the indicator flashes twice every 2 seconds,the light fast flash every 2 Minute at same time.
When the battery voltage drops below 2.7V, the light will turn off.
Charging
Connect the USB charging cable to an external USB power source, then attach the other end of the cable to the charging port of the light
(Recommeded USB power no less than 10W (5V 2A) )
The red indicator means charging, when the battery charging completed, change to blue indicator.
NOTE:
Rechargeable function only for one 18350 (3.6V / 3.7V) rechargeable lithium battery!
When the battery is incorrectly insert the light,charging may damage the battery.
Power indicator
Every time turn on , the side indicator will be light 5 seconds to display the battery power.
Constant Blue Indicator: 100%~80% ,
Blinks Blue Indicator: 80%~50% ,
Constant Red Indicator: 50%~20% ,
Blinks Red Indicator: 20%~0.
Battery installation
Please make sure that the positive pole of the battery points to the head of the flashlight
when you replace the battery.
Caution:
Please do not point the lighted flashlight to the eyes of people or animals.
Please do not cover the light head when the flashlight is on, or place the flashlight head
on the ground. The radiation energy of the flashlight may cause damage to the flashlight
itself, or even result in burning to other materials.
Please do not use the turbo mode continuously when the environmental temperature is
high in case the flashlight body is too hot to hold.
Please do not put the light with magnetic items such as bank cards and mobile phones.
Features:
– A (white beam 2100+ red beam 320) lumens Dual Channel powerful EDC 18350 flashlight.
– Universal USB-C charging port.
– Customized user interface,Programmable variety of brightness
– High brightness white beam plus red beam.
– Ultra efficiency circuit design.
– TIR Lens, soft and balanced beam.
– Two-colors indicator of real-time battery power
– Rugged indestructible aluminum body with anti-scratching type III hard anodization
– Multi-level dissipating heat design and copper starboard, excellent heat dissipation. Flashlight head integrated construction, high thermal conductivity.
– Side switch button to transferring mode, user-friendly interface to adjust output.
– High efficiency driver circuit, no visible flash in any mode.
– Automatic memory function, remember last used setting and can be preset to specific output mode for instant access.
– Intelligent temperature control technology for flashlight stable and safe use.
– Reverse polarity protection, to protect from improper battery installation.
– Lock-out function. Avoids light turn on by unexpected.
– Location indicator help easy to find the light in dark.
– Magnetic tail stand
– Double sides pocket clip
