ReyLight Dawn - Brass

Original price $ 150.00 - Original price $ 150.00
Original price
$ 150.00
$ 150.00 - $ 150.00
Current price $ 150.00

Free shipping for orders over $100. Any order containing lithium batteries is at risk of abnormal shipping delays. UPS is highly recommended for any order containing batteries. UPS Ground is required for orders only containing batteries and not meeting the free shipping threshold even if other options are available during checkout.

ReyLight Dawn - Brass Nichia 519a 4000K R9080

The Reylight Dawn Brass Triple is the epitome of a modern flashlight, embodying the latest advancements in technology, design, and versatility. It's not just a flashlight; it's an emblem of the spirit of adventure, engineered to meet the demands of those who accept only the best. It is more than just a tool; it is a trusted companion that empowers outdoor enthusiasts to become pioneers, venturing into the unknown with confidence.

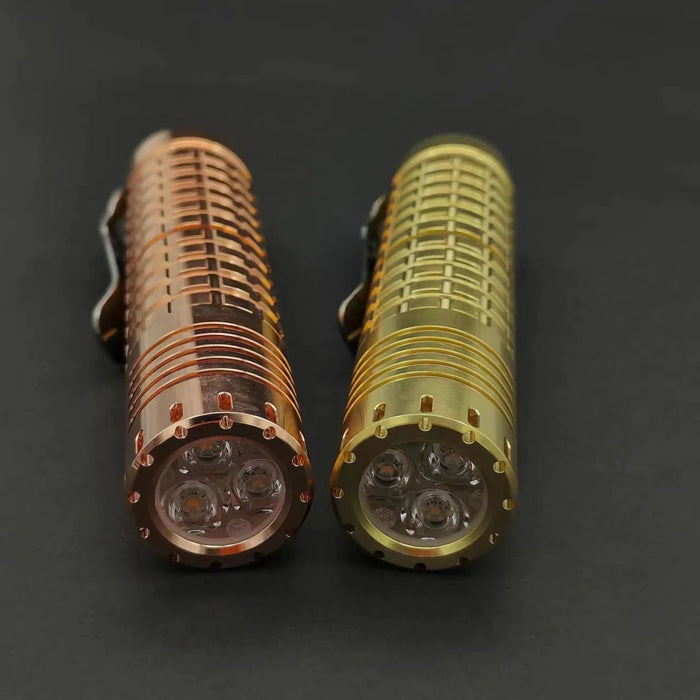

The game-changing Nichia 519A emitters are at the heart of this flashlight's outstanding performance. These emitters not only produce a beautiful and natural light tint, but they also excel in color rendition, bringing out the true colors of your surroundings. Say goodbye to the unappealing blue tint that plagues many LED flashlights. Additionally, the sapphire lens offers remarkable scratch resistance and durability, ensuring that this flashlight will stand the test of time and be passed down through generations. The meticulous CNC machining adds to the flashlight's aesthetic appeal, resulting in a sleek and modern finish that is as pleasing to the eye as it is functional.

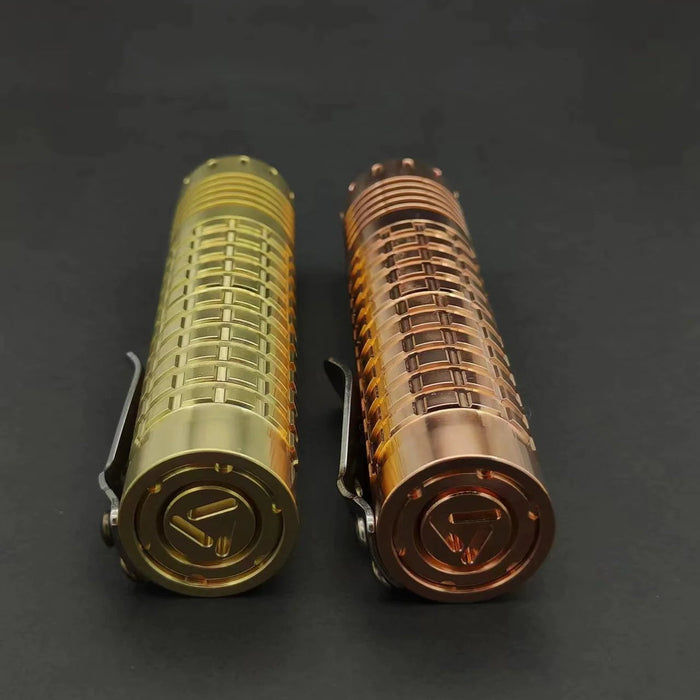

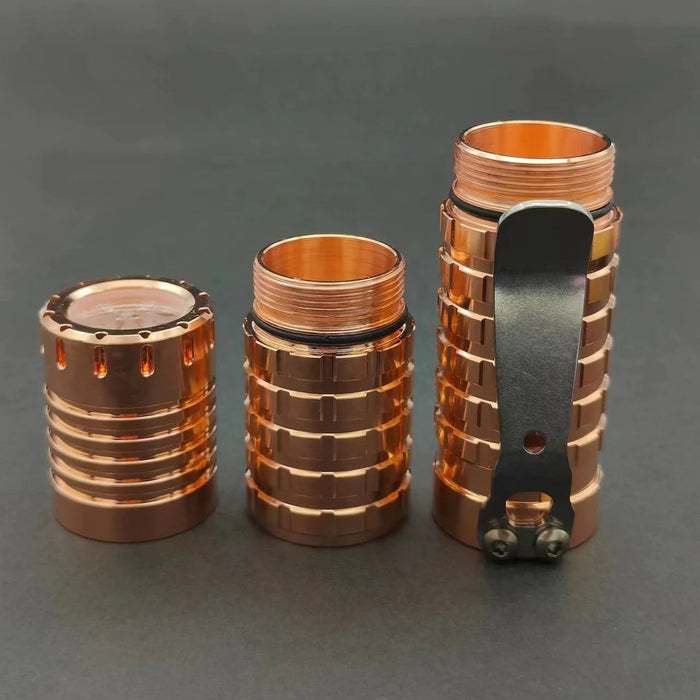

The Reylight Dawn Brass Triple also offers a high level of customization, allowing you to make it truly your own. It is available in brass, but you can also choose from copper and titanium options to match your personal style. The included 18650 extension tube provides the flexibility to use either an 18350 or 18650 battery, offering the ultimate in customization and versatility.

Embrace the power of the Reylight Dawn Brass Triple. Its striking design, adaptability, and robustness make it the essential companion for all your adventures. Seize the moment and unlock the power that lies within your reach.

Comes with a rechargeable Samsung 30Q 18650 battery.


head dia: 25mm/0.98 inch

total length: 110mm/ 4.33 inch

(battery included) weight:


Group1: (Moonlight)-2%-20%-100%  ( Default)

Group2: (ML)-10%-40%-100%

Group3: (ML)-2%-10%-50%

Group4: (ML)-50%-100%-strobe-SOS

Click here for  the programming guide.


ReyLight Dawn - Brass Programming guide

To Enter Configuration Mode:

-From ON, half-click/tap the tail switch 8+ times until it starts to flash.

(When the configuration mode is entered, the light will start to blink once, then a quick flash, blink twice, then a quick flash, blink three times, then a quick flash, blink four times, then a quick flash, blink five times, then a quick flash. This sequence continues twice if a selection is not chosen)


*The number of blinks indicates the configuration option number to be changed.

* Half-click/tap the tail switch during any quick flashes following the blinks to select the configuration option.


-Here are the configuration options:


Mode group selection

(After entering this menu, you can see it blink 4 times. The number of blinks indicates the number of mode groups)

The 1st blink --------- Group1:  (Moonlight)-2%-20%-100%

The 2nd blink -------- Group2:  (Moonlight)-10%-40%-100%

The 3rd blink -------- Group3:  (Moonlight)-2%-10%-50%

The 4th blink -------- Group4:  (Moonlight)-50%-100%-strobe-SOS


*Half-click/tap the tail switch during any blinks to select the mode group.

*After selecting the mode group, you can half-click/tap to select the brightness mode.


Memory mode on-off toggle (default off)

To turn memory mode on, half-click/tap the tail switch during the quick flash after the second blink.


*To turn off the memory mode, reenter the configuration mode and repeat the instruction above.


Moonlight mode off-on toggle (default on)

To turn the moonlight off, half-click/tap the tail switch during the quick flash after the third blink.

*Repeat to turn the moonlight on.

Mode order toggle (default LMH)

To change the mode order from Low Medium High to High Medium Low, half-click/tap the tail switch during the quick flash after the fourth blink.

*Repeat to reverse the order.


For example, the default mode order of group 1 is (Moonlight)-2%-20%-100%, if you change the mode group to HML, the mode ORDER of group 1 will be (Moonlight)-100%-20%-2%


Factory reset

Half-click/tap the tail switch during the quick flash after the fifth blink to reset all options to their original states.
