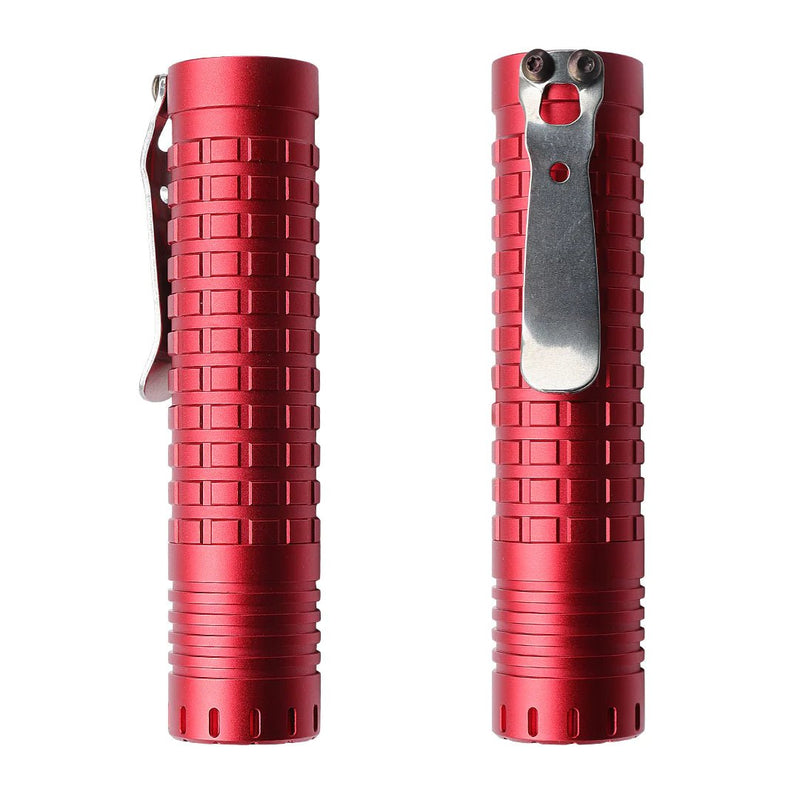

ReyLight Dawn-Aluminum - 18650
ReyLight Dawn-Aluminum-18350 Triple Nichia 519a 4000K R9080
Comes with a rechargeable Samsung 30Q 18650 battery.
LED: Triple Nichia 519a 4000K R9080
head dia: 25mm/0.98 inch
total length: 110mm/ 4.33 inch
(battery included) weight: 129g/ 4.55 oz
Group1: (Moonlight)-2%-20%-100% ( Default)
Group2: (ML)-10%-40%-100%
Group3: (ML)-2%-10%-50%
Group4: (ML)-50%-100%-strobe-SOS
Programming guide
- ToEnter Configuration Mode:
-From ON, half-click/tap the tail switch 8+ times until it starts to flash.
(When the configuration mode is entered, the light will start to blink once, then a quick flash, blink twice, then a quick flash, blink three times, then a quick flash, blink four times, then a quick flash, blink five times, then a quick flash. This sequence continues twice if a selection is not chosen)
*The number of blinks indicates the configuration option number to be changed.
* Half-click/tap the tail switch during any quick flashes following the blinks to select the configuration option.
-Here are the configuration options:
- Mode group selection
(After entering this menu, you can see it blink 4 times. The number of blinks indicates the number of mode groups)
The 1st blink --------- Group1: (Moonlight)-2%-20%-100%
The 2nd blink -------- Group2: (Moonlight)-10%-40%-100%
The 3rd blink -------- Group3: (Moonlight)-2%-10%-50%
The 4th blink -------- Group4: (Moonlight)-50%-100%-strobe-SOS
*Half-click/tap the tail switch during any blinks to select the mode group.
*After selecting the mode group, you can half-click/tap to select the brightness mode.
- Memory mode on-off toggle (default off)
To turn memory mode on, half-click/tap the tail switch during the quick flash after the second blink.
*To turn off the memory mode, reenter the configuration mode and repeat the instruction above.
- Moonlight mode off-on toggle (default on)
To turn the moonlight off, half-click/tap the tail switch during the quick flash after the third blink.
*Repeat to turn the moonlight on.
- Mode order toggle (default LMH)
To change the mode order from Low Medium High to High Medium Low, half-click/tap the tail switch during the quick flash after the fourth blink.
*Repeat to reverse the order.
For example, the default mode order of group 1 is (Moonlight)-2%-20%-100%, if you change the mode group to HML, the mode ORDER of group 1 will be (Moonlight)-100%-20%-2%
- Factory reset
Half-click/tap the tail switch during the quick flash after the fifth blink to reset all options to their original states.
