Mankerlight E14 IV
Manker E14 IV Key Features
- Compact and lightweight
- Quad emitters! Huge floody beam
- Versatile and intuitive UI
- Program Moonlight brightness (extremely lower or higher)
- Efficient constant current circuit
- Good temperature regulation(55°C)
- USB-C 18350 battery Included

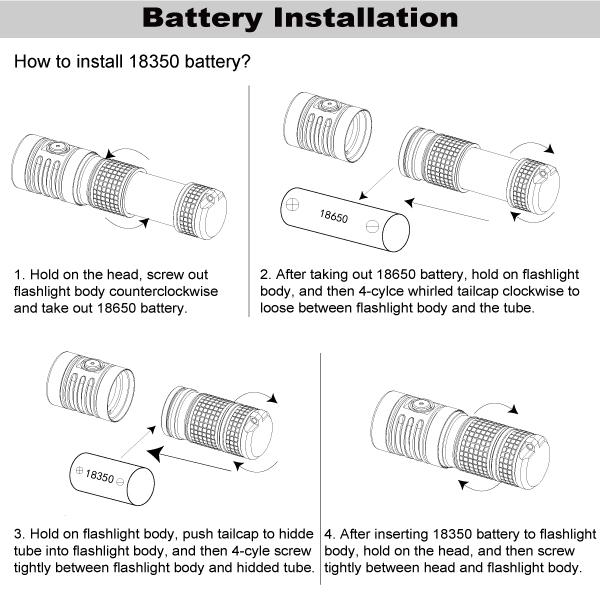

- Compatible with both 18350 and 18650 (Patent design)
- Magnetic Tail cap

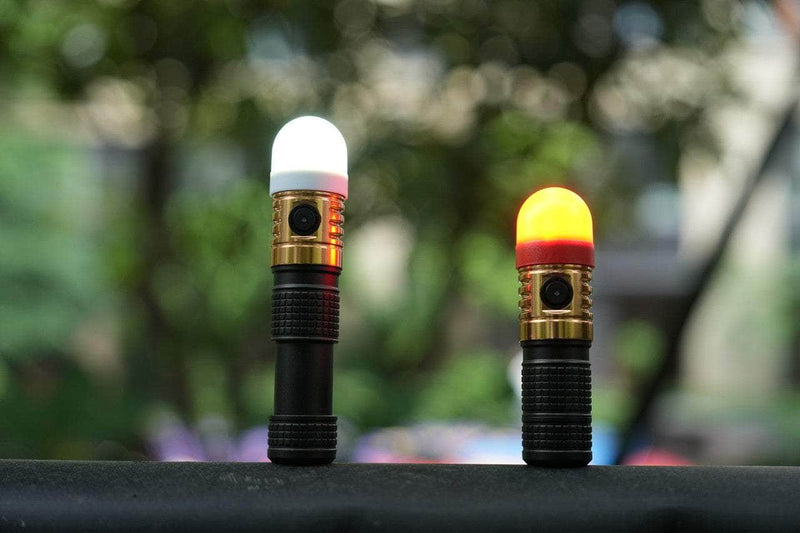

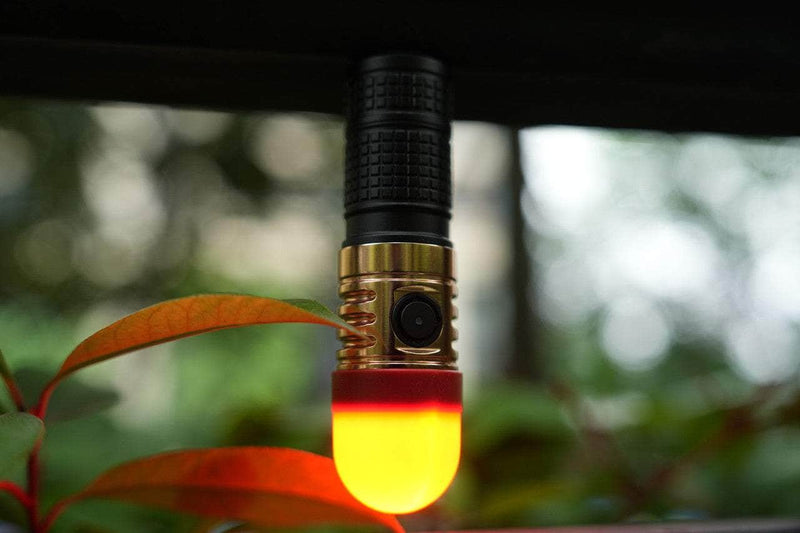

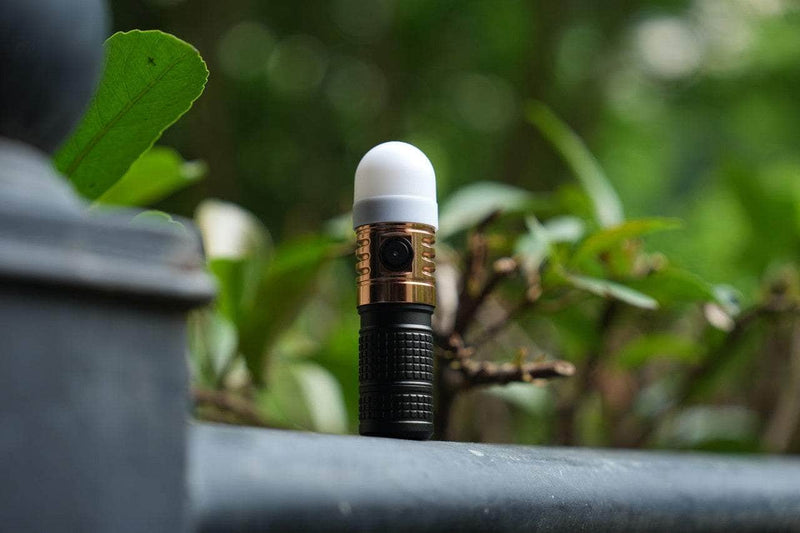

- White filter Included (Red filter is optional)
Manker E14 IV Specifications
● Utilizes 4x SAMSUNG LH351D LEDs with a max output of 4,000 lumens (Cool White: 6500K, Neutral White: 4000K CRI>90 or Nichia 519A 4000K)
● Max peak beam intensity of 6,889 cd and max throw of 166 meters
● Working voltage: 2.8V - 4.4V
● Powered by a Type-C USB rechargeable 18350 high drain li-ion battery while compatible with 18650 battery, to provide a better runtime and higher brightness
● High efficient constant current circuit provides a stable output (Non-PWM)
● With advanced intelligent temperature regulation module, E14 IV regulates its output and adapts to the ambient environment, maintaining optimal performance
● Electronic reverse polarity protection and over discharge protection
● Immersion gold and gold plated connector to ensure an effective conductivity
● The power indicator under side button indicates remaining battery voltage(±0.1V)
● Lower voltage indicator make the light downshifts to low brightness, and avoid light accidentally turn off in dark night
● User-friendly one button interface:
- One button control all brightness levels
- Three user selectable ECO modes to meet different requirement of lower brightness
- Single click to general mode, friendly adjust 3 different brightness levels to meet daily requirement
- Double click to enter Turbo from any modes (except lock-out mode)
- Triple click to special mode: Strobe/Beacon/SOS
- Memory function stores general mode's brightness level last used
- Electronic lock-out prevents accidental activation
● Material: aircraft-grade aluminum alloy
● Surface Treatment: HAIII hard anodizing(bezel,body, tailcap) + color anodizing(head) + black plating(Button)
● Lens: Dual-sided AR coated, 99% transmittance toughened glass lens
● Optic: 4 in 1 customized orange peel aluminum reflector (By CNC machining)
● Utilizes black plated sandblasted metal button for good touch feelings

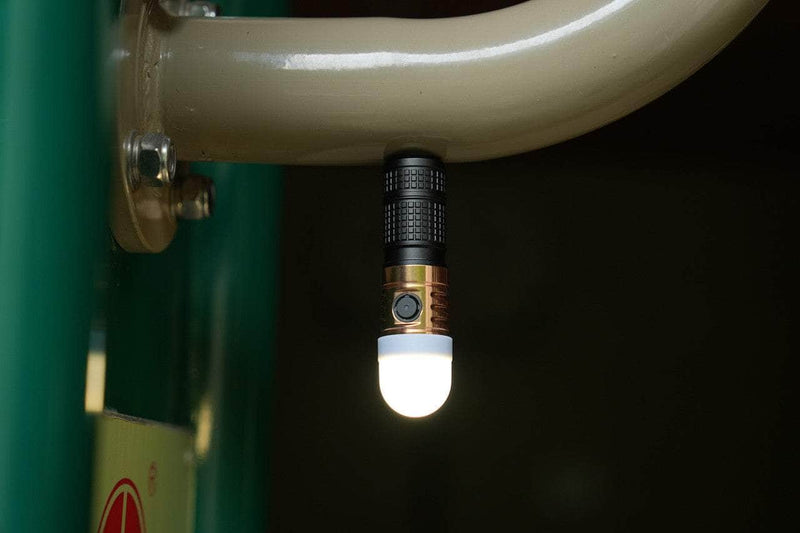

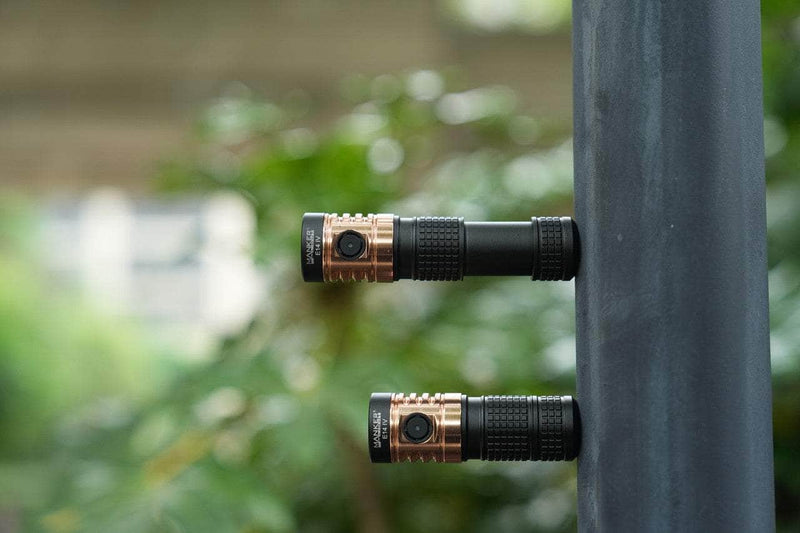

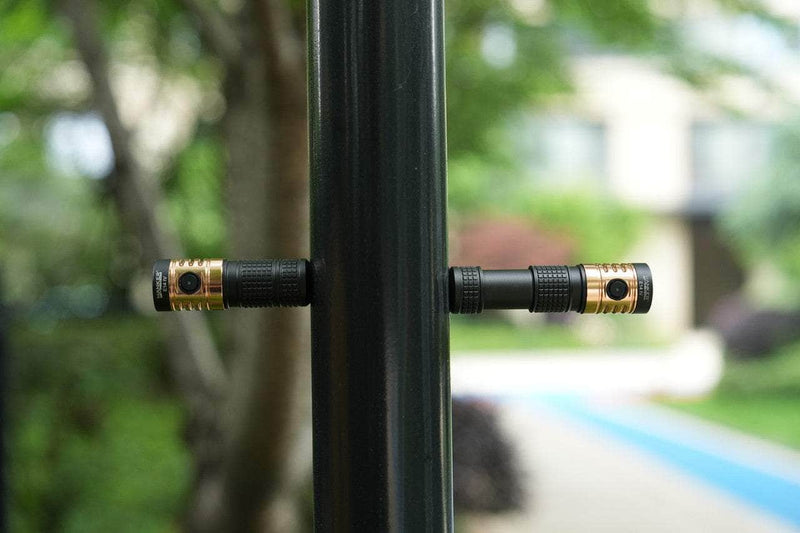

● Convenient magnet tail-stand capability for hands free use
● Built-in lanyard hole (inner diameter: 0.1" / 2.5 mm)
● IP67 waterproof standard (2 meters under water)
● Impact resistance: 1 meters

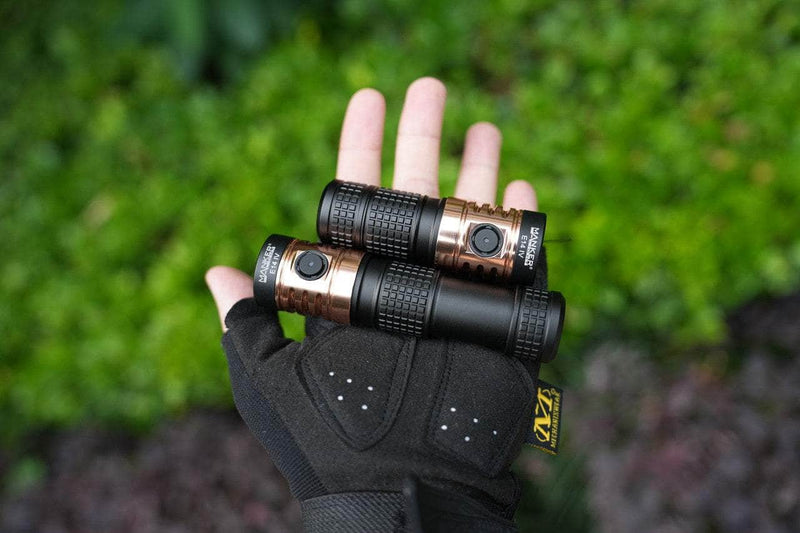

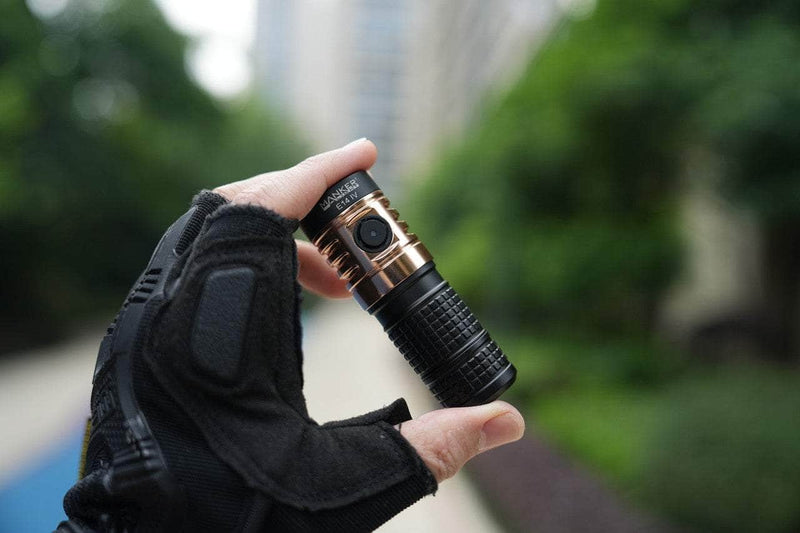

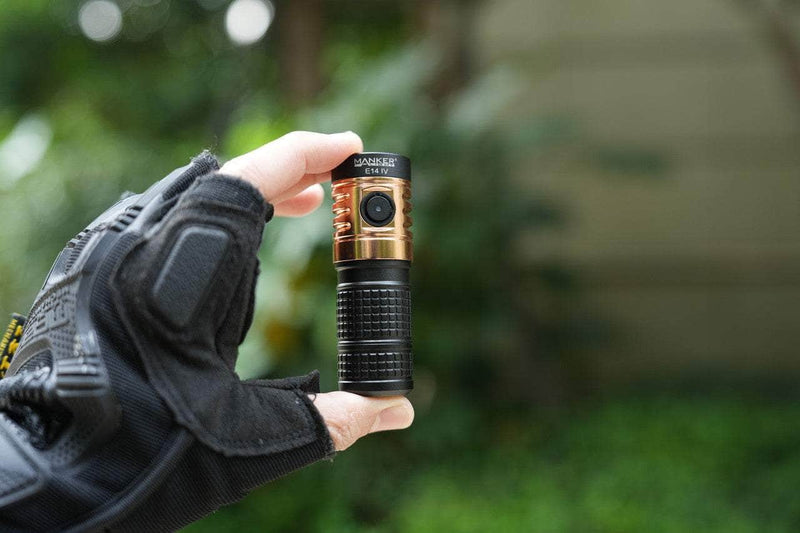

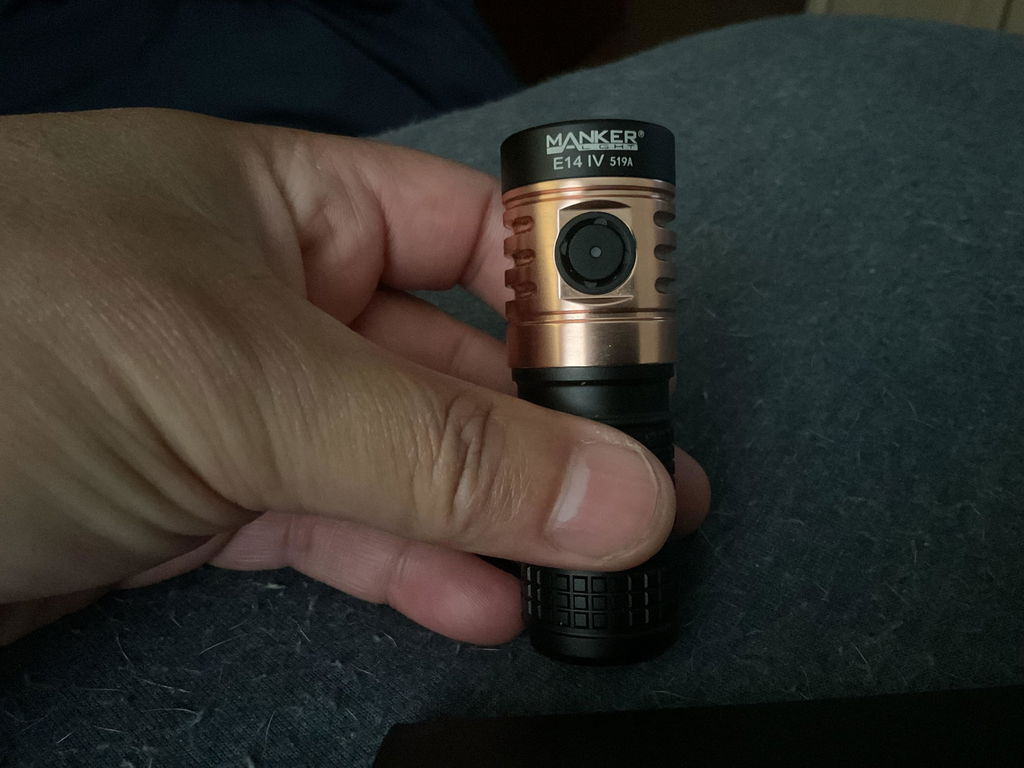

● Compact & lightweight, weigh only 2.43 oz / 69g (without battery)
Manker E14 IV Package contents
1x Mankerlight E14 IV LED flashlight1x Mankerlight 1100mAh Type-C USB rechargeable high drain protected 18350 li-ion battery (new version)
1x Type-C USB charging cable
1x White filter
1x Spare O-ring
1x User manual
Do not shine light directly at anyone eyes.
Please keep the product away from children.
Please remove insulation sheet of battery and fully charge battery before initial use.
Please check and replace the O-ring regularly to maintain the waterproof rating.
Please check and lubricate the threads regularly with professional lubricant.
Remove the battery from the flashlight during long term storage.
Please recharge the battery every 2 months when left unused for a prolonged time.
