Manker E05 II Ti

Original price $ 49.95 - Original price $ 49.95
Original price
$ 49.95
$ 49.95 - $ 49.95
Current price $ 49.95
Choose a Options
Choose a Finish

Free shipping for orders over $100. Any order containing lithium batteries is at risk of abnormal shipping delays. UPS is highly recommended for any order containing batteries. UPS Ground is required for orders only containing batteries and not meeting the free shipping threshold even if other options are available during checkout.

by Manker

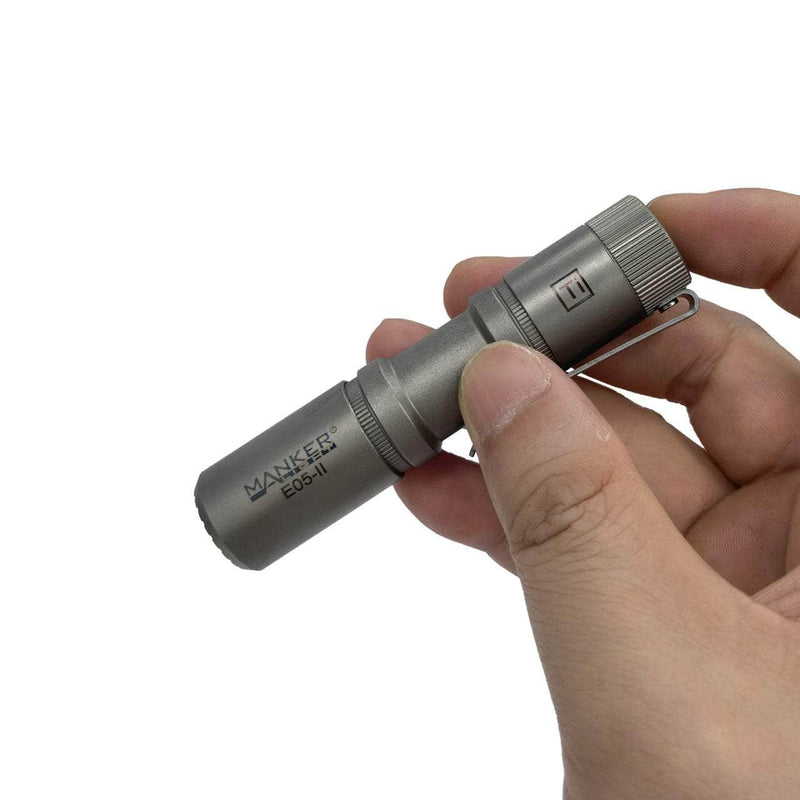

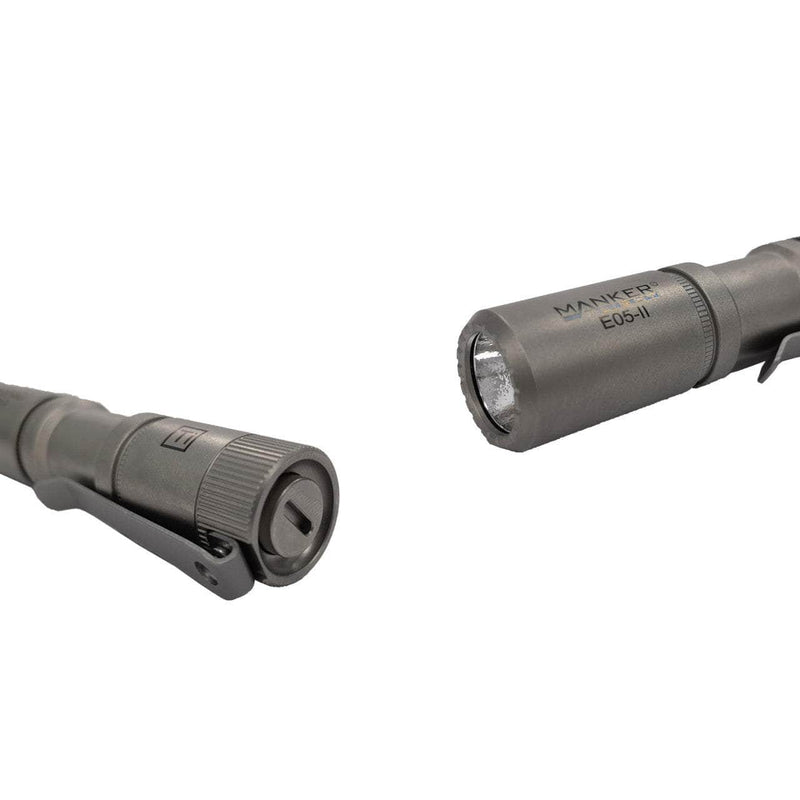

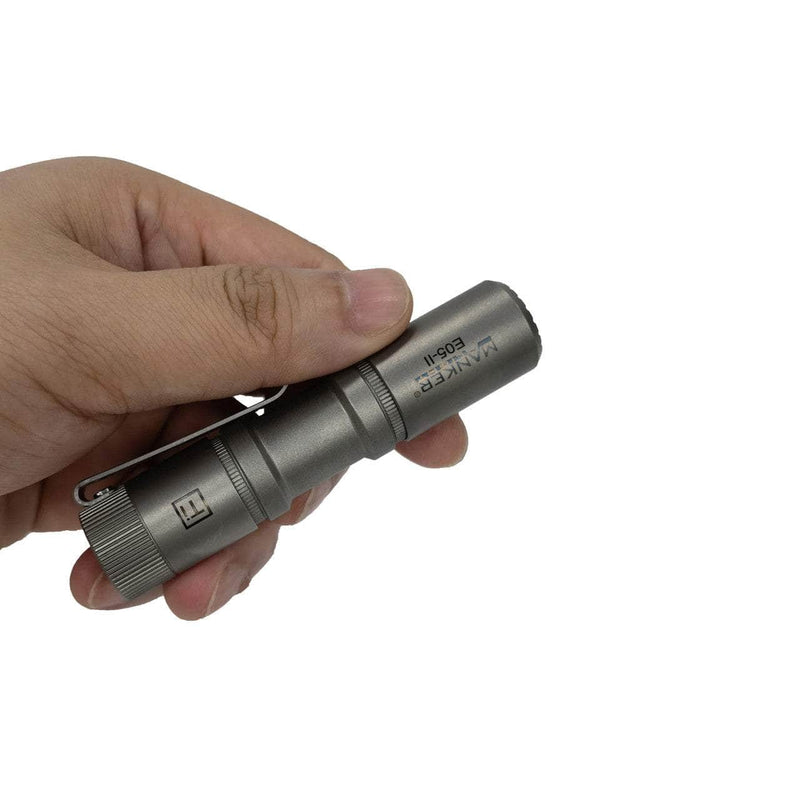

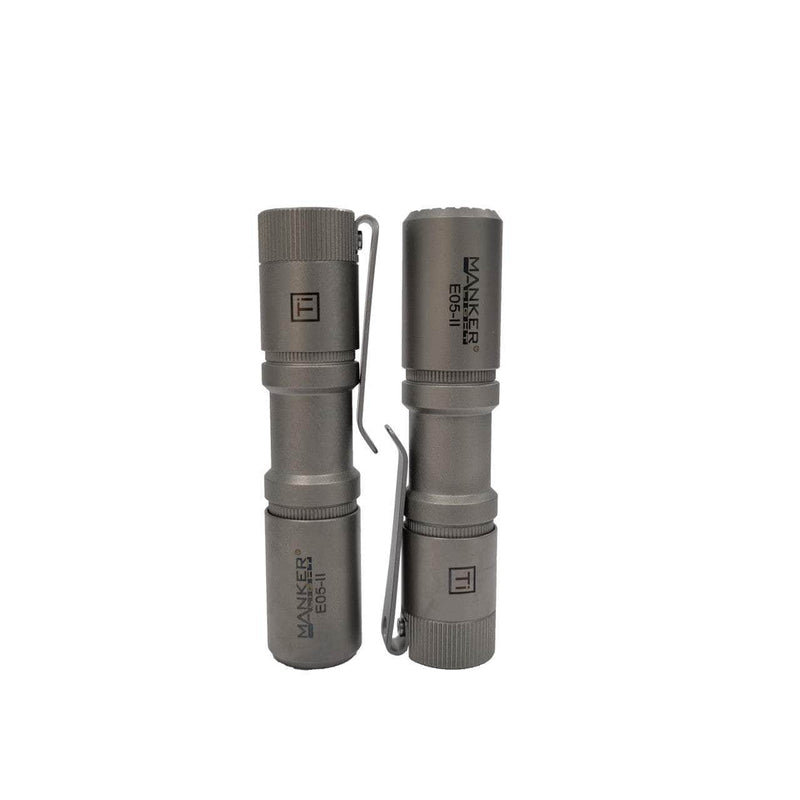

Manker E05 II Ti

Manker E05 II Ti Product Description

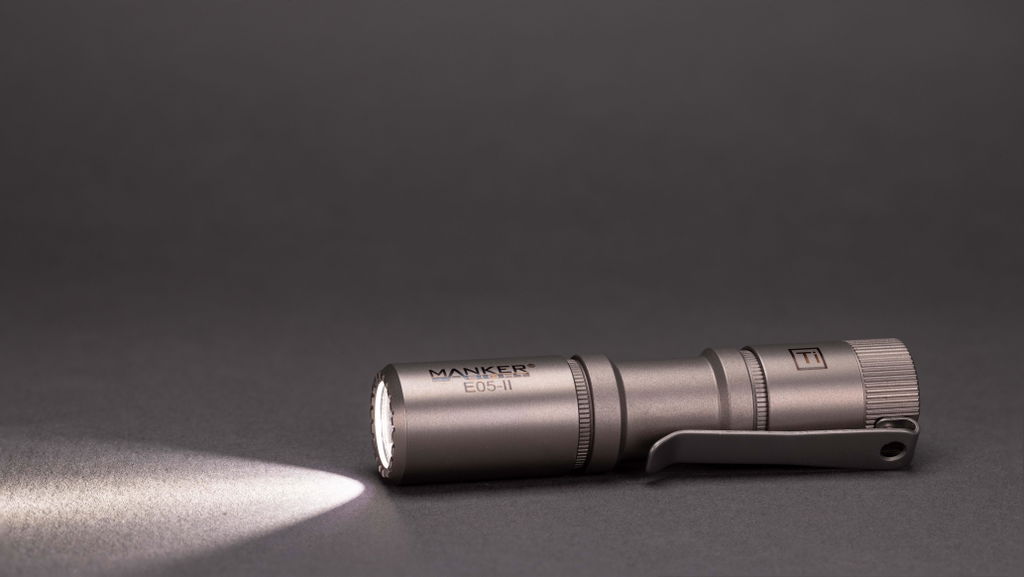

Mankerlight E05 II Ti is Most Powerful Every Day Carry Titanium Flashlight in Single 14500 /AA Class.
1300 Lumens Illumination / Made by Titanium / Ultra-Compact Size / Multi-fuel / Dual Constant Current Drivers

- Gen 2 Model
- The whole shell are made by titanium
- Beam blast titanium finish on body
- Solid copper "pill" that houses LED's copper MCPCB and driver

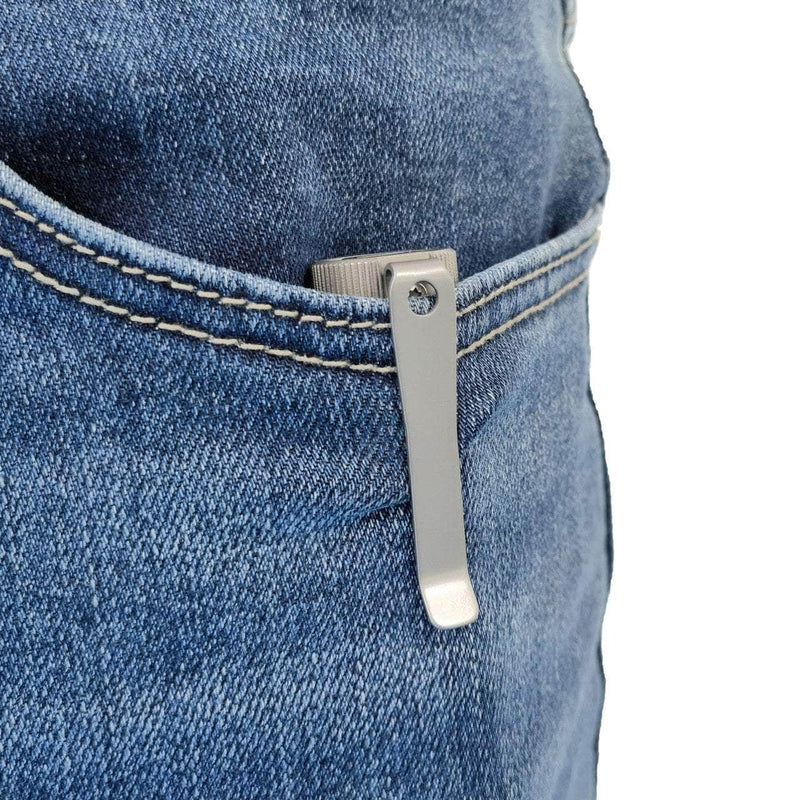

- Titanium plated 304 stainless steel deep carry clip

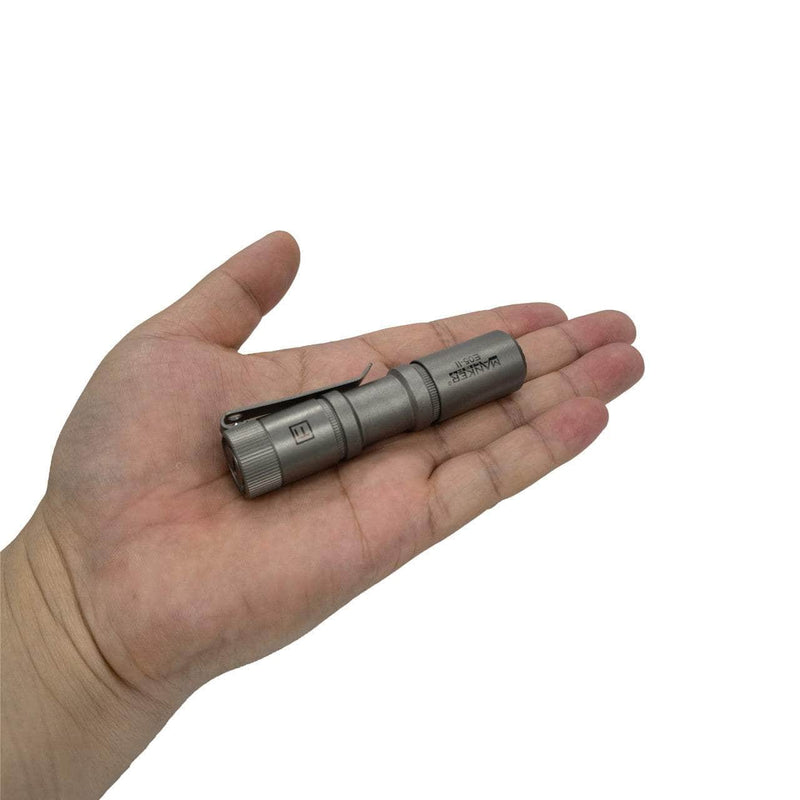

- Mini size for perfect everyday carry
- Multi-fuel design:14500 li-ion, Ni-MH AA, Alkaline AA AA-size battery
- Extreme performance in its class (1300 lumens illumination / Dual constant current drivers)
- Forward 'clicky' button control for one-handed operation
- Light tail-stands easily for convenience
- 1 tritium slot at tail switch
- IP68 waterproof rated, 2 meters underwater
- 1.5 meters drop-resistant
- Multi-color filter options: white / red
- Versatile usage applicable


Manker E05 II Ti Specifications


• Light source: 1x 6500K cool white LED emitter
• Light Modes: Low - Medium - High + Strobe
• Output: 1300 lm - 300 lm - 8 lm + 1300lm (20Hz) (powered by 14500 USB-C Li-ion Battery)
• Runtime: 2 min +1 hrs+4 hrs - 1hrs 30 min + 3hrs 50 min - 50 hrs (powered by 14500 USB-C Li-ion Battery)
• Battery: 1x 14500 li-ion / 1x Alkaline AA / 1x Ni-MH AA
• Max Beam Distance: 148 meters (485.56 feet)
• Working Voltage: 0.9 V - 4.2 V
• Driver: High efficiency constant current circuit (both 14500 and AA)
• Body Material: Titanium with beam blasted finish
• Clip Type: Deep carry clip
• Clip Material: 304 stainless steel with titanium plated
• Button Material: Titanium with beam blasted finish
• Contact Spring Retainer Material: phosphore bronze / gold plated
• Lens: Dual-sided AR coated, 99% transmittance toughened Glass

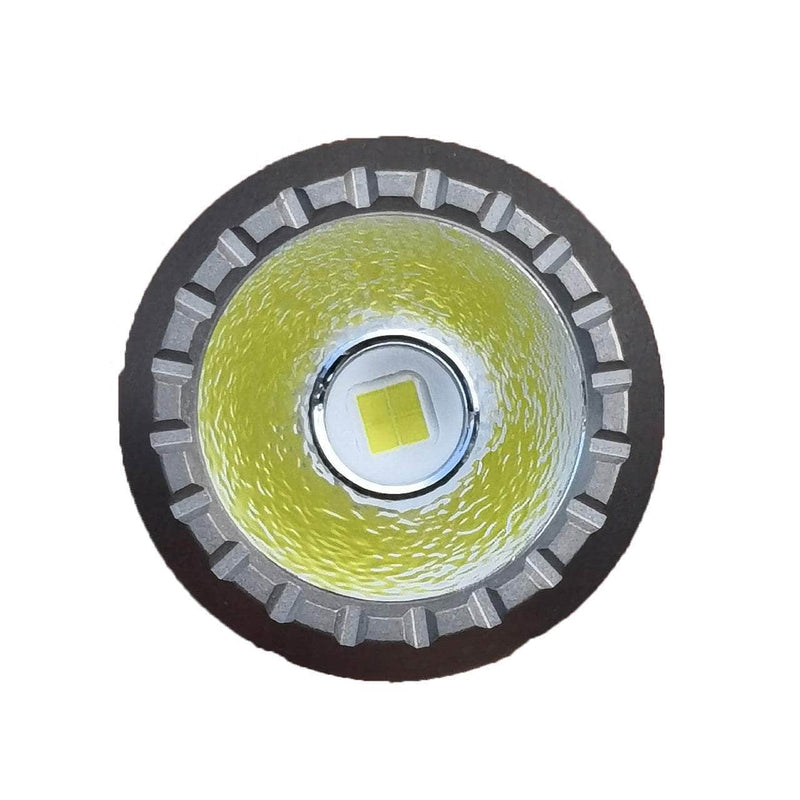

• Optic: Orange peel aluminum reflector with vacuum plated
• Switch Type: Forward-click button (mechanical switch)
• Tritium: 1 slots in button cap. (fit for 6*1.5 mm)
• Size: 91.35mm (length) x ø17mm (min body dia.) x ø20mm (tail dia.) / 3.60" x 0.67" x 0.79"
• Weight: 79.3 g / 2.79 oz (included 14500 battery)
• Impact Resistance: 1.5 meters
• Waterproof: IP68 rated, tested 2 meter underwater for 60 minutes

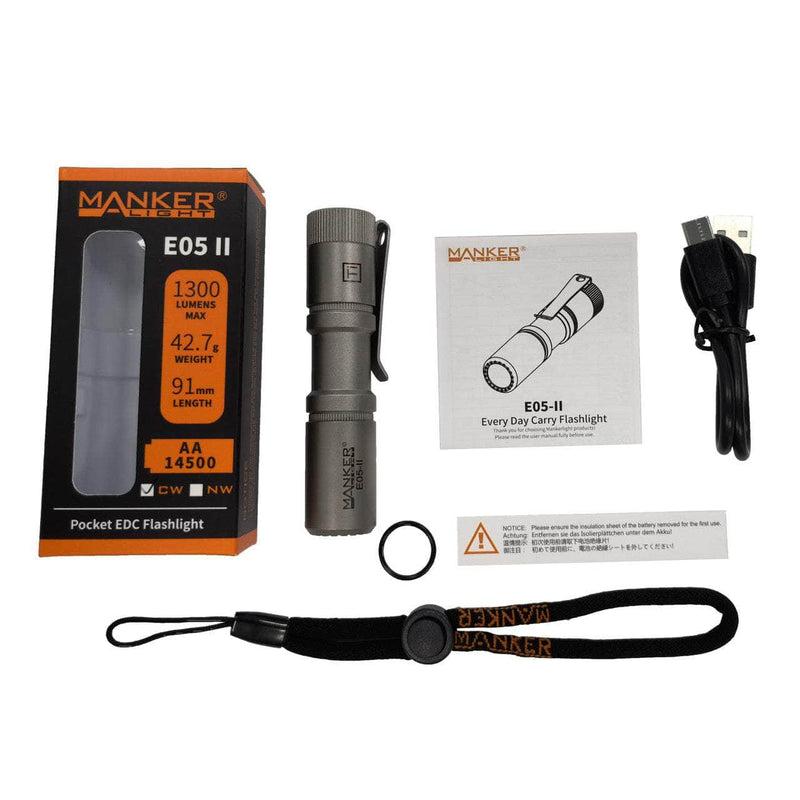

Manker E05 II Ti Package Contents


1x Mankerlight E05 II titanium 6500K cool white LED flashlight
1x Mankerlight 920 mAh protected 14500 lithium battery with Type-C USB port
1x Type-C USB charging cable
1x Lanyard
1x Spare waterproof o-ring
1x User manual


Manker E05 II Ti  Operating Instructions


ON/OFF: Fully press the switch.
Momentary ON: Half-press from OFF until released.
Output change①: Continously half-press the switch (interval more than 0.5 second) to change different outputs ( Low - Med. - High), full press to lockout the selected output.
Output change②: From OFF status, fully press the switch to turn on Low output, and then fully press to turn OFF; fully press again to turn on Med. output, and then fully press to turn OFF; fully press again to turn on High output, and then fully press to turn OFF; If keep fully press again, turn back to low output.
Memory function: When OFF the light for 2 seconds, full press to output last used (except Strobe)
Strobe: Quickly double half-press the switch from OFF.

Note: When battery voltage is low, the light will step-down directly to low output, sometime you turn off the light and then turn on again, it can be lighted up but will also step-down to low output soon. When battery voltage is extremely low, the light will shut OFF automatically.

Battery Charging Indicator
Plug USB Type-C socket of the included charging cable into the USB-C port of 14500 battery, and connect another USB socket to the adapter. 14500 battery has built-in intelligent identified charging function. When battery is charging, the indicator will be red. After battery charging is completed, the indicator will change to green.

Manker E05 II Ti Technical Data

6500K Cool White
Powered by Mankerlight 14500 USB-C li-ion battery:
Low: 8 lumens, 50 hours
Medium: 300 lumens ~ 8 lumens 1 hrs 30 minutes + 3 hrs 50 minutes
High: 1,300 lumens ~ 300 lumens ~ 8 lumens, 2 minutes + 1 hours +4 hours
Strobe: 1,300 lumens 20Hz
Beam intensity: 5,476 cd
Beam distance: 148 meters
Impact resistance: 1.5 meters
Waterproof standard: IP68, 2meters underwater for 60 minutes

Powered by AA Ni-MH Battery:
Low: 1.5 lumens, 27 hours
Medium: 100 lumens ~ 1.5 lumens, 1 hours 50 minutes + 3 hours 3 minutes
High: 420 lumens ~ 100 lumens ~ 1.5 lumens, 2 minutes + 2 hours + 30 minutes
Strobe: 420 lumens 20Hz
Beam intensity: 1,806 cd
Beam distance: 85 meters
Impact resistance: 1.5 meters
Waterproof standard: IP68, 2 meters underwater for 60 minutes

Powered by AA Alkaline Battery:
Low: 1.5 lumens, 55 hours
Medium: 100 lumens ~ 1.5 lumens, 1 hours 20 minutes + 16 hours 50 minutes
High: 420 lumens ~ 100 lumens ~ 1.5 lumens, 1 minutes + 48 minutes + 3 hours 15 minutes
Strobe: 420 lumens 20Hz
Beam intensity: 1,806 cd
Beam distance: 85 meters
Impact resistance: 1.5 meters
Waterproof standard: IP68, 2 meters underwater for 60 minutes

Technical Data of Nichia 519A 4000K R9080
Powered by Mankerlight 14500 USB-C li-ion battery:
Low: 6.5 lumens, 50 hours
Medium: 220 lumens ~ 6.5 lumens 1 hrs 30 minutes + 3 hrs 50 minutes
High: 800 lumens ~ 220 lumens ~6.5 lumens, 2 minutes + 1 hours +4 hours
Strobe: 800 lumens 20Hz
Beam intensity: 3,600 cd
Beam distance: 120 meters
Impact resistance: 1.5 meters
Waterproof standard: IP68, 2meters underwater for 60 minutes

Powered by AA Ni-MH Battery:
Low: 1.5 lumens, 27 hours
Medium: 80 lumens ~ 1.5 lumens, 1 hours 50 minutes + 3 hours 3 minutes
High: 300 lumens ~ 80 lumens ~ 1.5 lumens, 2 minutes + 2 hours + 30 minutes
Strobe: 300 lumens 20Hz
Impact resistance: 1.5 meters
Waterproof standard: IP68, 2 meters underwater for 60 minutes

Powered by AA Alkaline Battery:
Low: 1.5 lumens, 55 hours
Medium: 80 lumens ~ 1.5 lumens, 1 hours 20 minutes + 16 hours 50 minutes
High: 300 lumens ~ 80 lumens ~ 1.5 lumens, 1 minutes + 48 minutes + 3 hours 15 minutes
Strobe: 300 lumens 20Hz
Impact resistance: 1.5 meters
Waterproof standard: IP68, 2 meters underwater for 60 minutes
