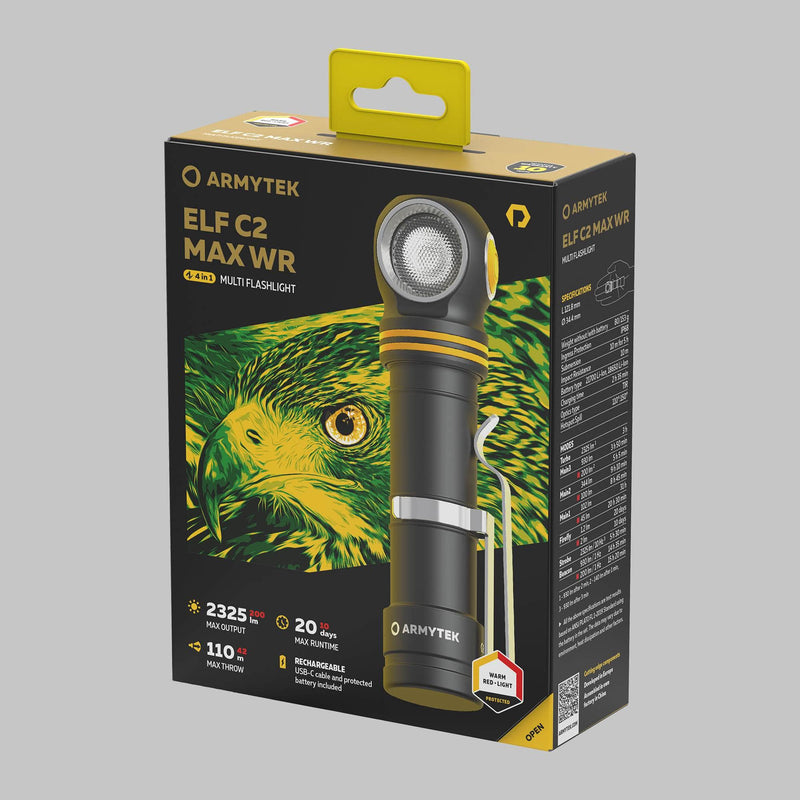

Armytek Elf C2 Max WR USB-C Headlamp - Warm
The Armytek Elf C2 Max WR USB-C Warm headlamp combines broad warm-white lighting with a separate red output for campsite tasks, fishing trips and night-time map reading. This Warm version delivers up to 2325 lumens of warm-white light with a 110-meter beam distance, plus up to 200 lumens of red light reaching 42 meters. Its wide TIR beam covers nearby work and surrounding space, while the included headmount, steel clip and magnetic tailcap let you place the light where you need it.
A protected 5000mAh 21700 Li-ion battery is included, along with a USB-C cable and an adapter for one 18650 Li-ion battery. With seven warm-white modes and five red modes, you can choose a low output for close tasks, a brighter beam for general use, or a Beacon setting for signaling.
Warm-white and red light from one button
Use the warm-white beam for walking, repairs and lighting a larger area. Switch to red for lower-output night tasks or use its flashing Beacon mode when you need a visible signal. A double click switches between white and red light, and mode memory recalls the last-used setting. The large side button provides one-hand control.

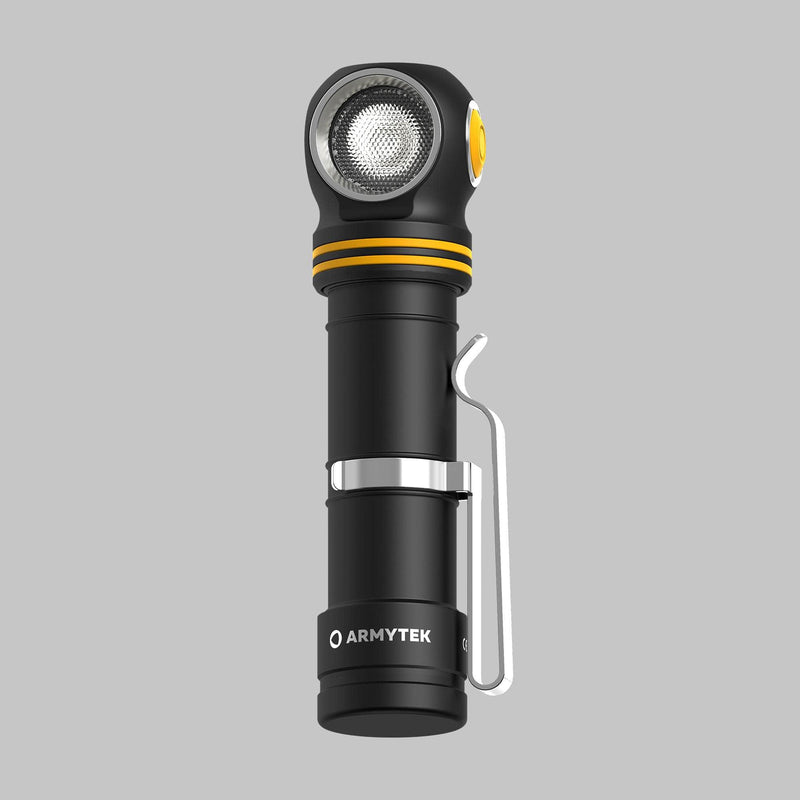

The TIR optic produces a 110° hotspot and 150° spill. Tempered glass with an anti-reflective coating and a steel bezel protect the optical system. The aircraft-grade aluminum body has a matte finish without rough knurling, and improved springs help protect the battery and driver during movement.
Headlamp, pocket carry and magnetic work light

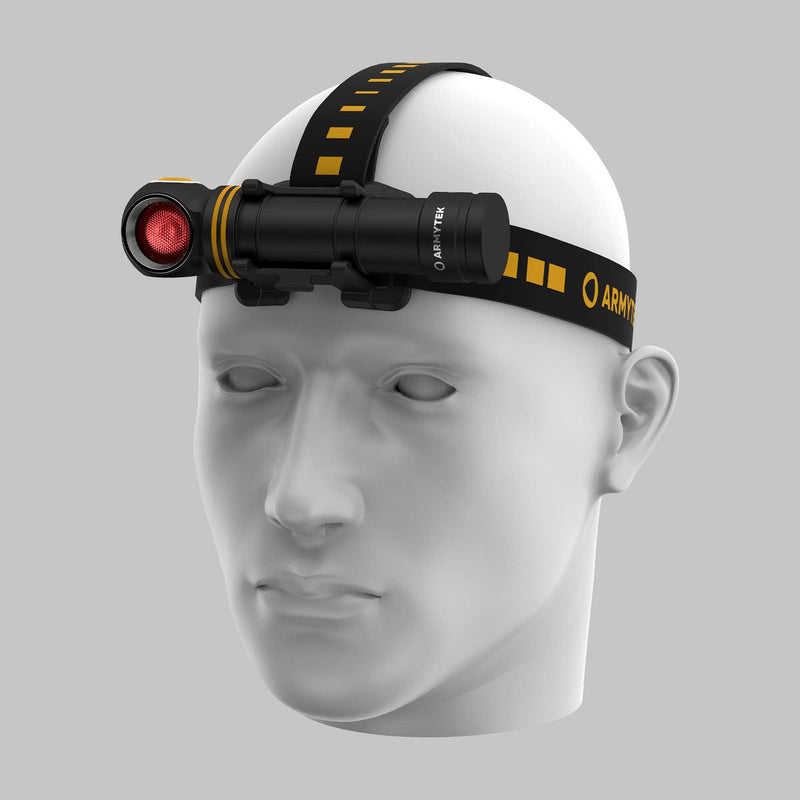

The adjustable headmount installs in one motion and allows 180° rotation to aim the beam. A quick-release silicone ring adds retention. The removable steel clip offers two mounting positions for carrying the light on clothing, a pocket or a bag, while the nylon holster fits a belt or equipment. Attach the magnetic tailcap to a suitable metal surface for hands-free work.
Built-in USB-C charging and lamp mode
The USB-C port is built into the flashlight, so the battery charges inside the light. Armytek specifies 2 hours 35 minutes to charge the included protected 5000mAh 21700 battery. The button lights red during charging and green when charging is complete. The included 18650 adapter lets the light use one 18650 Li-ion battery; an 18650 battery is not included.
For stationary use, lamp mode runs directly from a power bank or USB power supply even without a battery installed. A USB-C cable is included; the external power supply is sold separately.
Armytek Elf C2 Max WR Warm specifications
| Warm-white maximum output / beam distance |
2325 lm / 110 m |
| Red maximum output / beam distance |
200 lm / 42 m |
| Optics / hotspot : spill |
TIR / 110° : 150° |
| Brightness stabilization |
Full |
| Modes |
7 warm-white modes and 5 red modes |
| Power source |
1 × 21700 Li-ion or 1 × 18650 Li-ion with the included adapter |
| Included battery |
Protected 21700 Li-ion, 5000mAh |
| Charging |
Flashlight-integrated USB-C; 2 h 35 min with the included battery |
| Length / head diameter / body diameter |
121.8 mm / 34.4 mm / 23.6 mm |
| Weight without / with battery |
80 g / 153 g |
| Protection |
IP68; submersion up to 10 m for 5 h; impact resistance up to 10 m |
| Manufacturer product code |
F10801PW |
Warm-white output and runtimes
| Mode |
Output |
Runtime |
| Turbo |
2325 lm; 930 lm after 2 min |
3 h |
| Main3 |
930 lm |
3 h 50 min |
| Main2 |
344 lm |
9 h 10 min |
| Main1 |
102 lm |
31 h |
| Firefly |
1.2 lm |
20 days |
| Strobe |
2325 lm at 10 Hz; 930 lm after 3 min |
5 h 30 min |
| Beacon |
930 lm at 1 Hz |
14 h 35 min |
Red output and runtimes
| Mode |
Output |
Runtime |
| Main3 |
200 lm |
5 h 5 min |
| Main2 |
100 lm |
8 h 45 min |
| Main1 |
45 lm |
20 h 30 min |
| Firefly |
2 lm |
10 days |
| Beacon |
200 lm at 1 Hz |
15 h 20 min |
Turbo and warm-white Strobe runtimes include reduced output. The 2325-lumen output drops to 930 lumens after 2 minutes in Turbo and after 3 minutes in Strobe; it is not sustained for the full runtime. Armytek reports testing to ANSI/PLATO FL 1-2019 using the included battery. Performance varies with operating conditions, heat dissipation and other factors.
Active temperature control reduces brightness as the light approaches +58 °C. Multicolor indication reports battery level, temperature and charging status. The main LEDs also provide a low-battery warning.
What is included
- Armytek Elf C2 Max WR USB-C flashlight, warm-white and red light
- Protected 21700 Li-ion 5000mAh battery
- USB-C cable
- 18650 battery adapter
- Headmount
- Steel clip
- Nylon holster
- 2 spare O-rings
- User manual in eight languages
The ABM-01 bicycle mount and AHM-04 hard hat mount shown in the manufacturer graphics are optional accessories sold separately. This listing includes only the Warm WR configuration with warm-white and red light.
Manufacturer warranty
Armytek advertises a 10-year warranty for the flashlight, subject to its terms and proof of purchase. Batteries, chargers, mounts, holders, electronic button components and connectors have two-year coverage. Wear items and accessories have exclusions detailed in the manufacturer graphic below.
Manufacturer features and specifications
The graphics below show WR features, operation, Warm-specific specifications and kit contents in manufacturer order. The White/Warm comparison is informational; this listing includes warm-white and red light.
WR lighting in use
Red headlamp for night tasks
Use the headmount to keep both hands free while handling fishing tackle or other close tasks.
Magnetic work light
Attach the tailcap to suitable metal to illuminate maintenance work.
Outdoor carry
Clip the light to suitable clothing or gear for walking and outdoor activities.
USB-powered lamp
Connect a power bank or USB supply for lamp operation, even without a battery inside.
