Acebeam X80GT 3 Exploration Flashlight

The Acebeam X80GT 3 puts a wide flood beam, a high-CRI side light and flexible carrying options into a compact exploration flashlight. Choose up to 30,000 lumens with fast USB-C charging, a 23,000-lumen white/red/UV configuration with replaceable cells, or the 15,500-lumen Nichia 519A version for neutral-white, high-CRI illumination.Β

Choose Your X80GT 3 Version

Version LED configuration Maximum output / distance Stepless dimming Power system
White Light 6000K 24 Γ— 6000K white LEDs 30,000 lm / 430 m 150–3,500 lm Built-in 4 Γ— 18650 3000mAh high-drain Li-ion pack; USB-C PD 60W; approximately 1-hour charging
Multi-Light 6000K 18 Γ— 6000K white LEDs + 4 red + 2 UV 23,000 lm / 401 m 100–3,200 lm Replaceable 4 Γ— 18650 3000mAh high-drain Li-ion cells
Nichia 519A 5000K 18 Γ— Nichia 519A 5000K high-CRI LEDs + 4 red + 2 UV 15,500 lm / 300 m 80–2,200 lm Replaceable 4 Γ— 18650 3000mAh high-drain Li-ion cells

Battery and charging compatibility: The Multi-Light and Nichia 519A versions use replaceable cells. Acebeam specifies custom, longer protected batteries for the battery compartment; do not assume ordinary 18650 cells will fit. Acebeam does not specify flashlight-integrated USB-C charging for the replaceable-cell versions.

Main Beam, Red and UV Light

Use the main beam to illuminate a broad area, then adjust brightness smoothly within the range specified for your version. The Multi-Light and Nichia models add 660 nm red output for low-light observation and signaling, plus 365 nm UV for fluorescence inspection, counterfeit detection and leak detection. The Nichia 519A model combines a 5000K neutral-white beam with high color rendering.

High-CRI Side Light and Expedition Features

Every version includes a side light rated CRI 95+. It can light the ground at your feet independently or work alongside the main beam. A detachable handle improves grip and provides heat insulation, while the UNC ΒΌ-inch socket accepts a tripod or compatible mount.

  • CNC-machined, anodized AL6061-T6 aluminum alloy body
  • 4 mm thickened anti-reflective glass
  • Mechanical lock to help prevent accidental activation; three-position magnetic mechanical lock on the multi-light model
  • Non-PWM white-light dimming and boost constant-current driver with FCCM control
  • IP68 waterproof and dustproof protection
  • 1-meter drop resistance

Dimensions and Product Weight

Specification White Light / Battery Pack Multi-Light / Nichia 519A
Body diameter 49 mm / 1.93 in 49 mm / 1.93 in
Head diameter 65 mm / 2.56 in 65 mm / 2.56 in
Length 128 mm / 5.04 in 119.3 mm / 4.70 in
Manufacturer product weight Approx. 560 g / 19.75 oz Approx. 556.7 g / 19.64 oz


Output and Runtime

Outputs separated by β€œ~” show step-down stages; runtimes separated by β€œ+” correspond to those stages. Maximum output is temporary. Acebeam's measurements are approximate and vary with batteries, temperature and operating conditions. Fixed-mode runtimes do not establish a fixed runtime for stepless dimming.

White Light Version β€” 24 Γ— 6000K LEDs

Mode Output (lumens) Runtime Distance Intensity
Ultra Low 150 23.5h 25m 156 cd
Low 650 ~ 150 8.5h + 2h 45m 506 cd
Med 1 2,300 ~ 150 3h + 2h 85m 1,806 cd
Med 2 7,200 ~ 3,500 ~ 150 7min + 1.6h + 2h 167m 6,972 cd
High 15,000 ~ 3,500 ~ 150 90s + 1.7h + 2h 241m 14,520 cd
Turbo 30,000 ~ 3,500 ~ 150 20s + 1.8h + 2h 430m 46,225 cd
Strobe 30,000 ~ 3,500 60s + 3.8h 430m 46,225 cd


Multi-Light Version β€” 18 Γ— 6000K LEDs

Mode Output (lumens) Runtime Distance Intensity
Ultra Low 100 21h 22m 121 cd
Low 450 ~ 100 11h + 70min 39m 380 cd
Med 1 1,850 ~ 100 3.5h + 70min 78m 1,521 cd
Med 2 5,100 ~ 3,200 ~ 100 20min + 1h 35min + 70min 147m 5,402 cd
High 10,000 ~ 3,200 ~ 100 4min + 1h 45min + 70min 210m 11,025 cd
Turbo 23,000 ~ 3,200 ~ 100 30s + 1h 51min + 70min 401m 40,200 cd
Strobe 23,000 ~ 3,200 80s + 4h 10min 401m 40,200 cd


Nichia 519A Version β€” 18 Γ— 5000K LEDs

Mode Output (lumens) Runtime Distance Intensity
Ultra Low 80 21h 19m 90 cd
Low 330 ~ 80 11h + 70min 34m 289 cd
Med 1 1,300 ~ 80 3.5h + 70min 64m 1,024 cd
Med 2 3,500 ~ 2,200 ~ 80 20min + 1h 35min + 70min 101m 2,550 cd
High 6,900 ~ 2,200 ~ 80 4min + 1h 45min + 70min 145m 5,256 cd
Turbo 15,500 ~ 2,200 ~ 80 30s + 1h 51min + 70min 300m 22,500 cd
Strobe 15,500 ~ 2,200 80s + 4h 10min 300m 22,500 cd

Β

Manufacturer specification note: Acebeam's White Light text table lists Med 1 intensity as 1,806 cd, while its specification graphic lists 1,800 cd. The table above follows the current text specification; the original graphic is included below.

Auxiliary Light Sources

Light source / availability Mode Output Runtime Distance Intensity
6500K side light, CRI 95+ β€” all versions High 80 lm 32h β€” β€”
6500K side light, CRI 95+ β€” all versions Med 30 lm 115h β€” β€”
6500K side light, CRI 95+ β€” all versions Low 4 lm 470h β€” β€”
660 nm red β€” Multi-Light and Nichia High 400 lm 4h 38m 361 cd
660 nm red β€” Multi-Light and Nichia Med 130 lm 15h 23m 132 cd
660 nm red β€” Multi-Light and Nichia Low 20 lm 88h 10m 25 cd
365 nm UV β€” Multi-Light and Nichia High 1,300 mW 11h β€” β€”
365 nm UV β€” Multi-Light and Nichia Med 400 mW 35h β€” β€”
365 nm UV β€” Multi-Light and Nichia Low 64 mW 158h β€” β€”


Manufacturer Product Photos

Acebeam X80GT 3 head with 18 Nichia 519A LEDs, four red LEDs and two UV emitters
Nichia 519A 5000K version: 18 neutral-white high-CRI LEDs, four red LEDs and two UV LEDs.

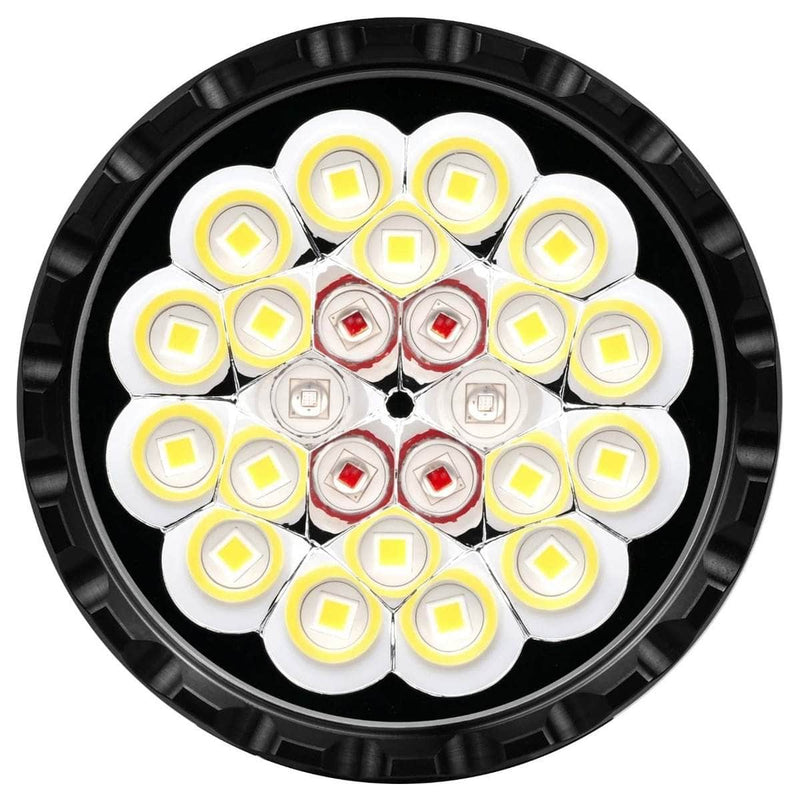

X80GT 3 multi-light head with 18 white 6000K LEDs around red and UV emitters
Multi-Light 6000K version: white, red and UV emitters with replaceable batteries.

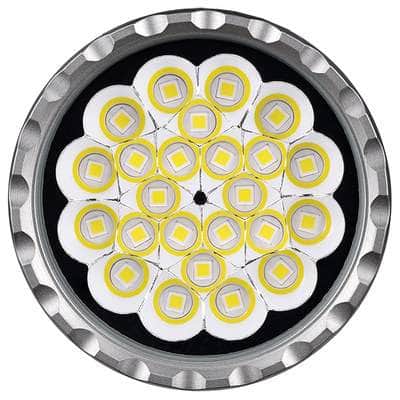

Silver-bezel Acebeam X80GT 3 White Light head with 24 LEDs
White Light 6000K version: 24 white LEDs and a built-in battery pack.

Manufacturer Features and Specifications

Acebeam X80GT 3 comparison showing 30,000-lumen battery pack and 23,000-lumen replaceable-cell versions
White Light battery pack and replaceable-cell Multi-Light versions compared.
X80GT 3 illuminating a large cavern with white and multi-light LED layouts

White Light X80GT 3 size comparison showing 128 mm length and 560 g weight
Dimensions and weight shown in this graphic apply to the White Light battery pack version.
X80GT 3 White Light battery pack version charging through its rear 60W USB-C port
60W USB-C charging and approximately one-hour recharge apply to the White Light battery pack version.
Acebeam X80GT 3 White Light switch instructions and sliding mechanical lock
White Light version switch and mechanical-lock controls; multi-light controls differ.
Cavers using the X80GT 3 high-CRI side light to illuminate their footing
High-CRI side lighting for close-range footing.
X80GT 3 White Light boost driver and stepped output runtime curves
White Light version output curves and boost-driver graphic.
X80GT 3 carried handheld, with a detachable handle, and on a quarter-inch mount
Handheld use, detachable handle and UNC ΒΌ-inch mounting options.
Acebeam X80GT 3 aluminum construction, IP68 protection and one-meter drop testing
Aluminum construction, IP68 protection and 1-meter drop resistance.
X80GT 3 applications in mountain rescue, surveying, cave exploration and patrol
Search, rescue, surveying, cave exploration and patrol applications.
White Light X80GT 3 runtime chart and 150 to 3,500 lumen stepless dimming specifications
White Light version fixed-mode specifications and 150–3,500 lm stepless range.
