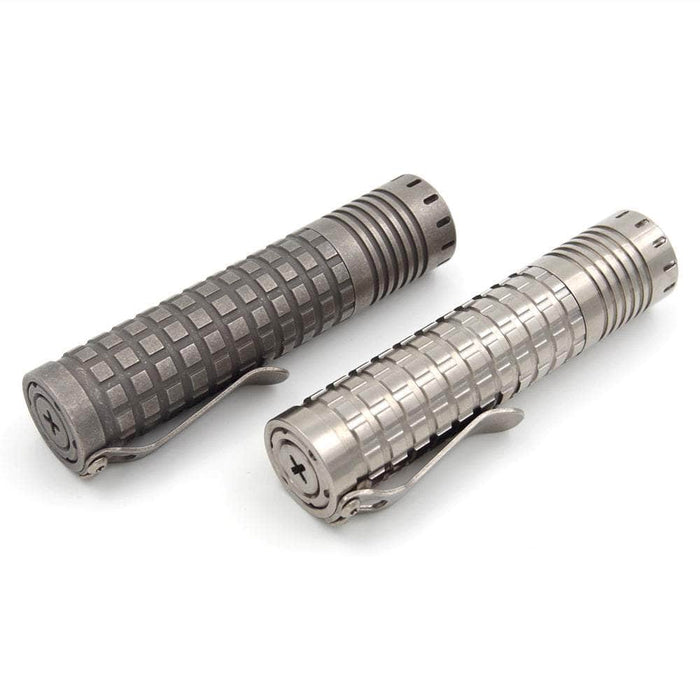

Reylight Ti Dawn Triple
Reylight Ti Dawn Triple
-Nichia 219B SW45K R9080
-Battery: single 18650 or 18350. It comes with 18650 battery extension! (DO NOT use double 18350)
– The Sapphire lens provides unbelievable high scratch resistance and durability, as well as adding long-lasting value to this art piece.
– Glow in the dark gasket provides an upscale appearance.
-Custom-made rubber cap molding provides the superior waterproof ability.
– Improved CNC tuning provides better quality of machining.
-Custom-made Ti clip and screws, are compatible with SF clips.
-Unlimited combination of tritium vials (12 trit-slots around the head, and 2 trit-slots on the tail button).
-tritium size: 1.5*6mm (not included)
-Reverse polarity protection
-LVP (low voltage protection) for Li-ion battery
-Diameter is 25mm, 18650 length 112mm, 120g, 18350 length 83mm 97g
Suggested battery: Sony C5, C6 , Sanyo 18650GA, Samsung 30Q, LG HG2.
Keeppower Xtar efest 18350.
Only unprotected battery is suggested. The protected one might be too long and cause a problem. The circuit itself has protection already.
Reylight Ti Dawn Triple Programming Guide
1. Turn on the light.
2. Press the button 8+ times. The light will now blink once, then strobe, blink twice, then strobe, blink three times, then strobe…After 5 blinks and a strobe, the sequence repeats.
a. 1 blink: mode group selection. Press the button to enter this menu.
i. 1 blink: (ML)-2%-20%-100%
ii. 2nd blink: (ML)-10%-40%-100%
iii. 3rd blink: (ML)-2%-10%-50%
iv. 4th blink: (ML)-50%-100%-strobe-SOS
It then repeats. Press the button during any blink to select that mode group.
b. 2 blinks: mode memory on-off toggle (default off). Press the button during the two blinks or during the strobe after to turn mode memory on. Repeat to turn mode memory off.
c. 3 blinks: moonlight mode off-on toggle (default on). Press the button during the three blinks or during the strobe after to turn moonlight off. Repeat to turn moonlight on.
d. 4 blinks: mode order toggle (default LMH). Press the button during the four blinks or during the strobe after to change the mode order from Low Medium High to High Medium Low. Repeat to reverse the order.
e. 5 blinks: factory reset. Press the button during the five blinks or during the strobe after to reset the light to factory settings.
Shortcut: quick double-tap to turbo.
