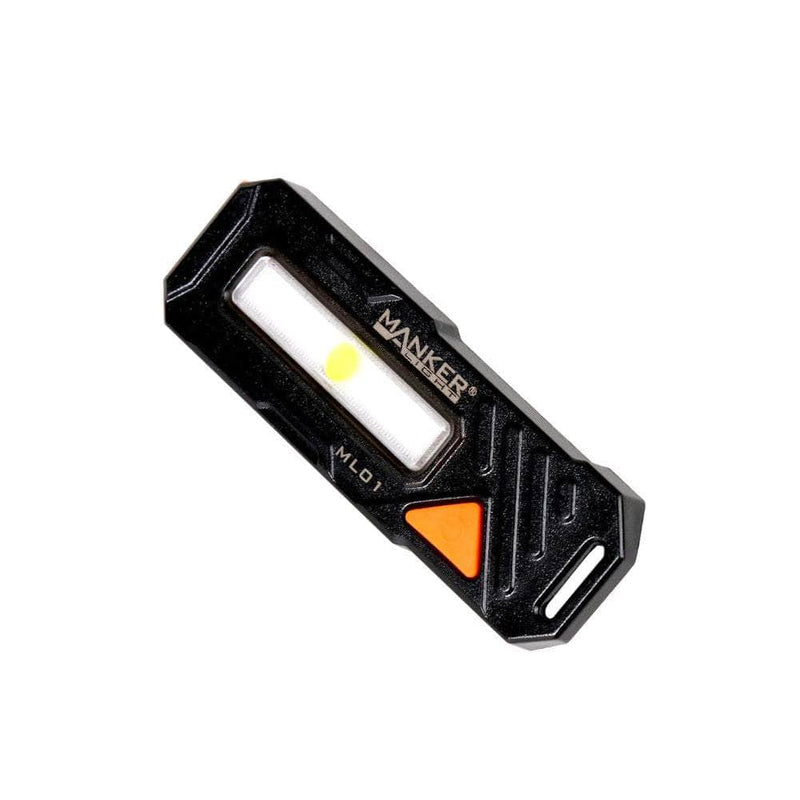

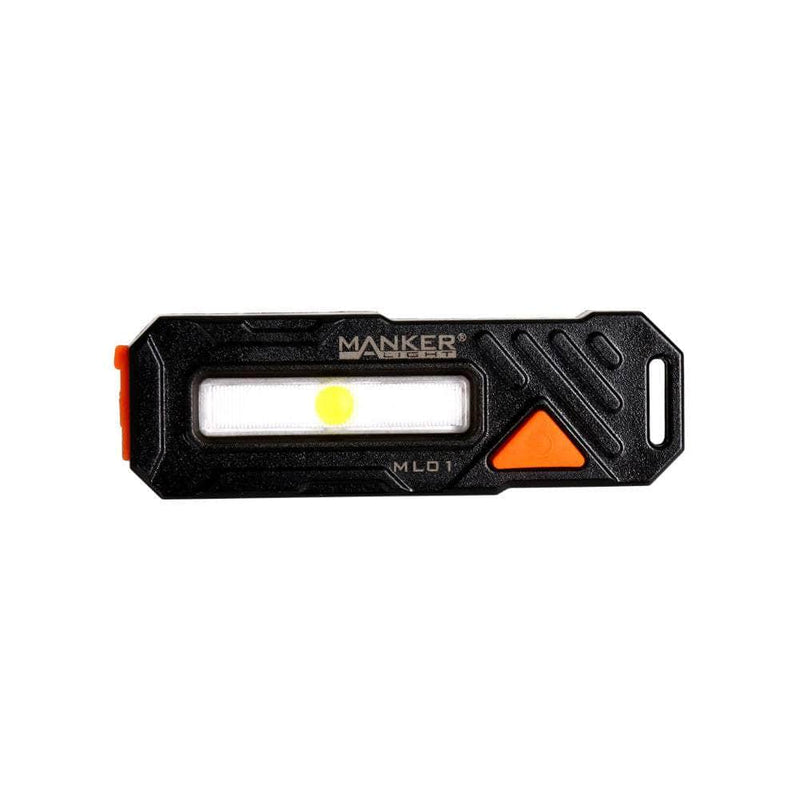

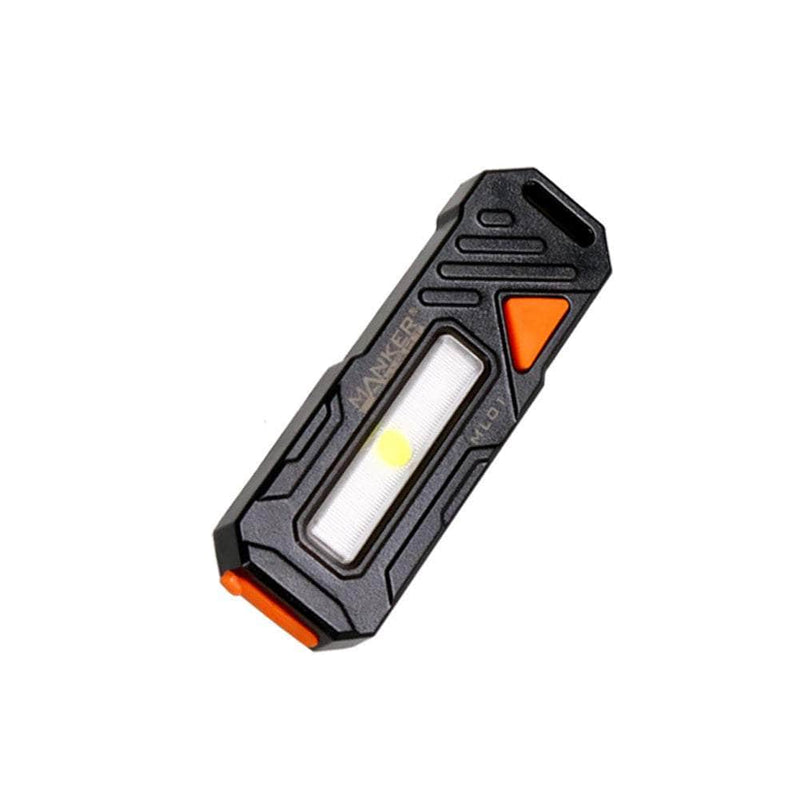

Manker ML01

Manker ML01

Features:

Adopt high power COB 'Chip-On-Board' LED
Light color: red / blue / white
Multiple illumination modes: red / blue light / flash & white light
Adopt a special algorithm constant current drive circuit
Maximum 90 lumens output (white light)
Maximum 18 hours runtime (red/blue flash)
Battery: built-in 300 mAh polymer lithium battery
Micro-USB charging Port
With IP65 protection grade, can adapt to all kinds of complex outdoor environment
Material: PC engineering plastics
Keychain design, ultra compact, easy carry

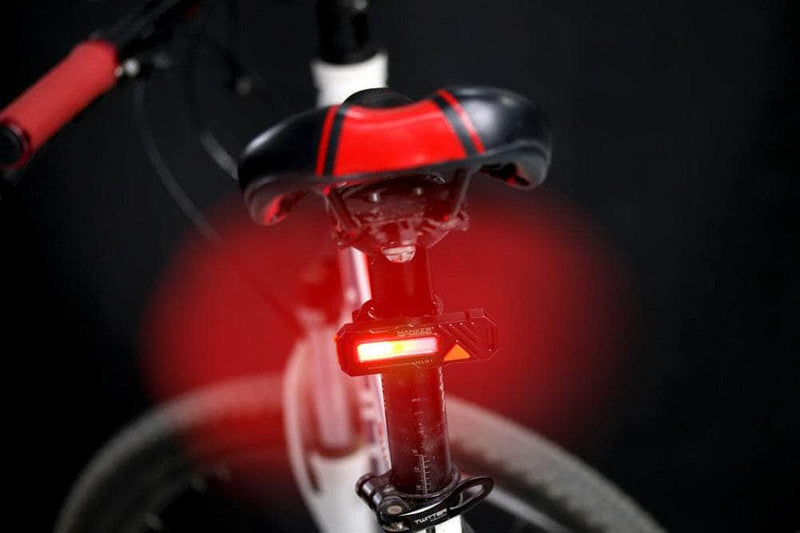

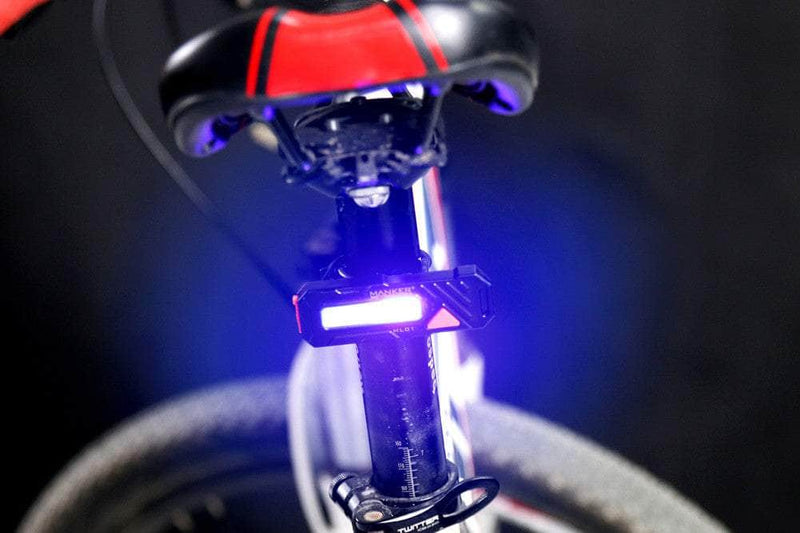

Application: night jogging / sanitation work / police officer / cyclist (bicycle tail light)
Size: 3.15" / 80 mm (length) x 1.02" / 26 mm (width) * 0.61" / 15.6 mm (high)
Weight: 0.84oz / 23.7 gram

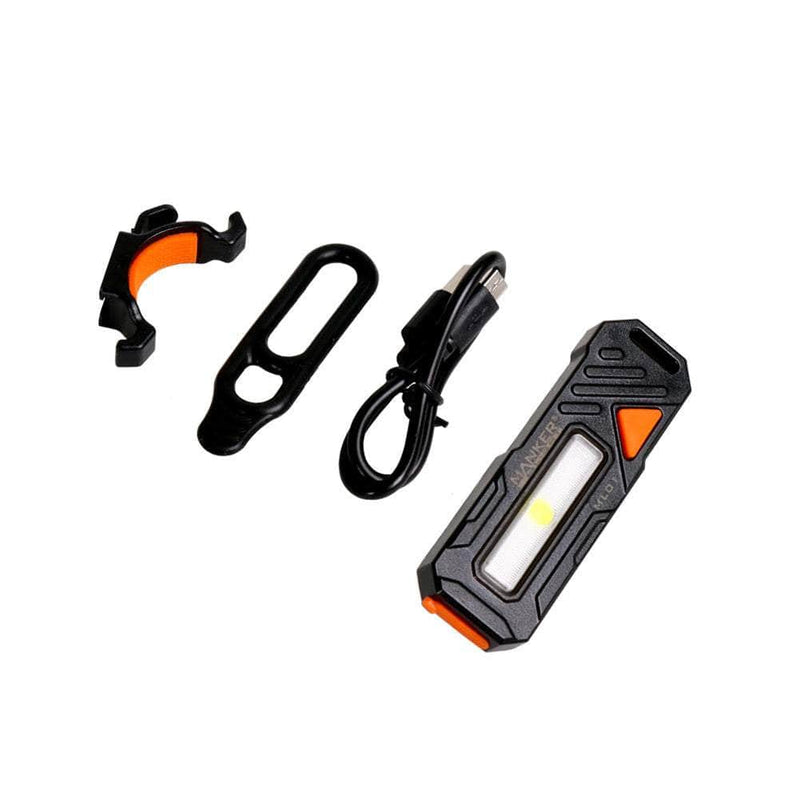

What's in the package?
1x ML01 LED Flashlight

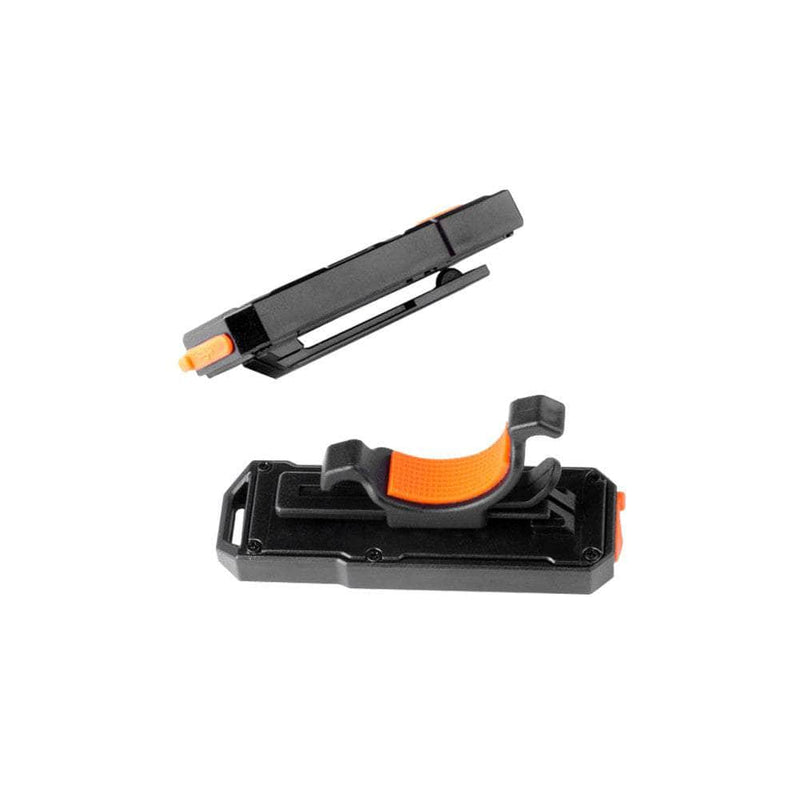

1x Hard mount holder
1x Silicon mount strap
1x USB charging cable
1x User manual

Manker ML01  Brightness levels & runtime

White lighting constant on
- High: 90 lumens 50 min,
- Middle: 50 lumens 1 hours 30 min,
- Low: 10 lumens 6 hours 30 min.

Red/Blue lighting
- Red/Blue light (constant on): 8 hours,
- Strobe: 10 hours,
- Slow Flash: 10 hours,
- Fast Flash: 18 hours.

Manker ML01 Structure

Manker ML01  Battery Indicator

Production usage
Red light flash:
power capacity ≤10%

While charging
Red light on: 0% - 95%
Green light on: ≥95%

Manker ML01  Operation Instructions

ON/OFF: When the light is OFF, single click, double click, long press the button to turn it on.When the light is ON, single click the button to turn it off.
General mode (White light constant on): While OFF, single click the button to enter general mode. Press and hold on the button to cycle through "Low > Middle > High" (or "High > Middle > Low"). Release the button to select one level you want. After entering in general mode, single click the button to turn it off; double click the button to special mode(red/blue light constant on or flash).
Special mode (red/blue light constant on or flash): While OFF, double click the button to enter special mode. Press and hold on the button to cycle throught "Fast flash, slow flash(2Hz), strobe(10Hz), red light constant on, blue light constant on”. Release the button to select one level you want. After entering in special mode, single click the button to turn if off; double click the button to general mode (white light constant on).
Memory function: While OFF, single click the button to the brightness level (general mode or special mode) last used.

Remark:
Strobe(10Hz): Both Red light and blue light flash at the same time.
Slow flash(2Hz): Cycle through "one red flash and stop a while and then one blue flash".
Fast flash: Cycle through "3 red flashes and stop a while and then 3 blue flashes".

*Warnings:
1. Please DO NOT shine the light beam directly into the eyes.
2. DO NOT disassemble the sealed head as doing so may cause damage to the flashlight and will void the warranty.
3. Please recharge the product every 3 months when left unused for a prolonged time.
