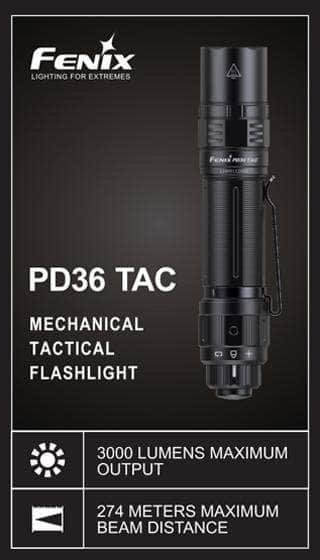

Fenix PD36 TAC Flashlight
If you are looking for a pocket-size mechanical flashlight that focuses solely on tactical employment? It would be best if you considered the Fenix PD36 TAC Flashlight. The Fenix PD36 TAC is equipped with a 21700 Li-ion battery that helps push this flashlight to incredible brightness levels and runtimes! The PD36 TAC flashlight utilizing the Luminus SST-70 LED emits a maximum of 3000 lumens of output with a fantastic beam distance of 274 meters. The toggle switch on the PD36 Tac easily allows you to configure the flashlight to Duty Mode, Tactical Mode, or even lock in the brightness level of your choosing. Duty mode is excellent for everyday use, and Tactical Mode allows you to force the brightness levels to only high and strobe for those tense situations. The PD36 TAC is an ideal choice for law enforcement, security, and professional use, and you can count on it to deliver reliable and robust lighting for an array of situations. The PD36 TAC brings with it a patented dual-function tactical switch that's handy for instant tactical activation. In terms of size, the Fenix PD36 TAC flashlight measures 5.5 inches with a body width of 1 inch. The head width and weight are 1.04 inches and 3.24 oz, which allows for easy carrying.
Fenix PD36 TAC Flashlight Batteries

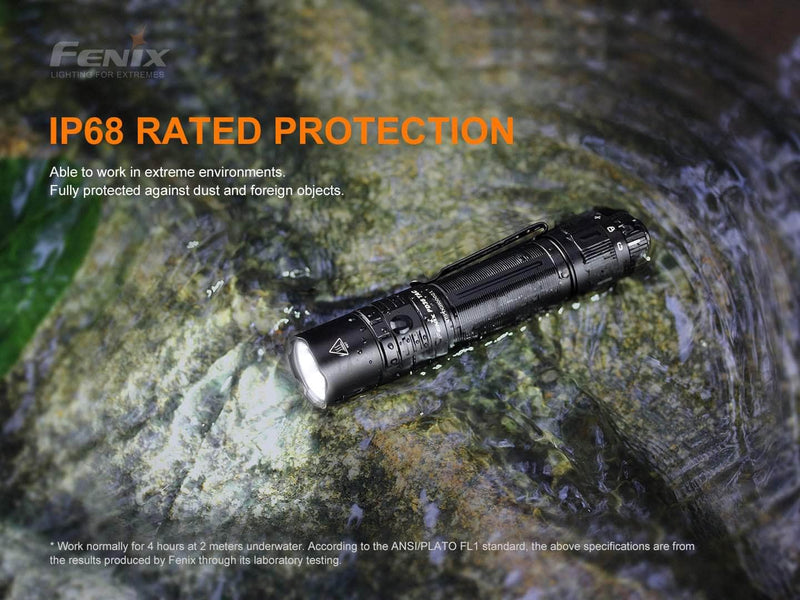

When it comes to batteries, a 21700 battery powers this flashlight to a maximum output of 3000 lumens and a beam distance of up to 274m; with these capabilities, this unit is ideal for law enforcement professionals. This impact-resistant flashlight features an IP68 rating that makes it waterproof and dustproof, ready to come in handy for any tactical situation. The battery has a built-in USB-C charging, which makes it easy to charge at a moment's notice without needing to carry around an external charger.
Operation
Turn PD36TAC On/Off

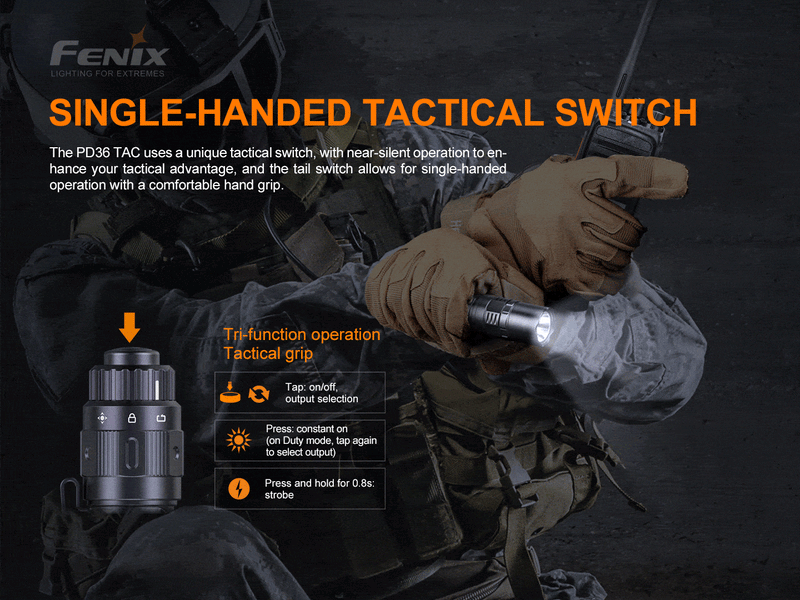

With the light unlocked and switched off, tap the tactical tail switch to turn on the light momentarily, release it, the light will go out, fully press the tactical tail switch to constantly turn on the light (less than 0.8 seconds), fully press again to turn off the light.
Fenix PD36 TAC Mode Switching

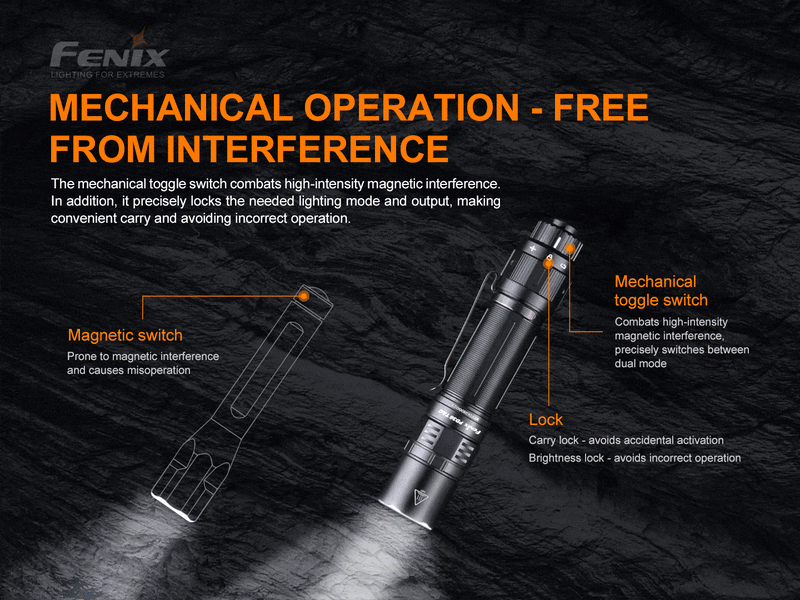

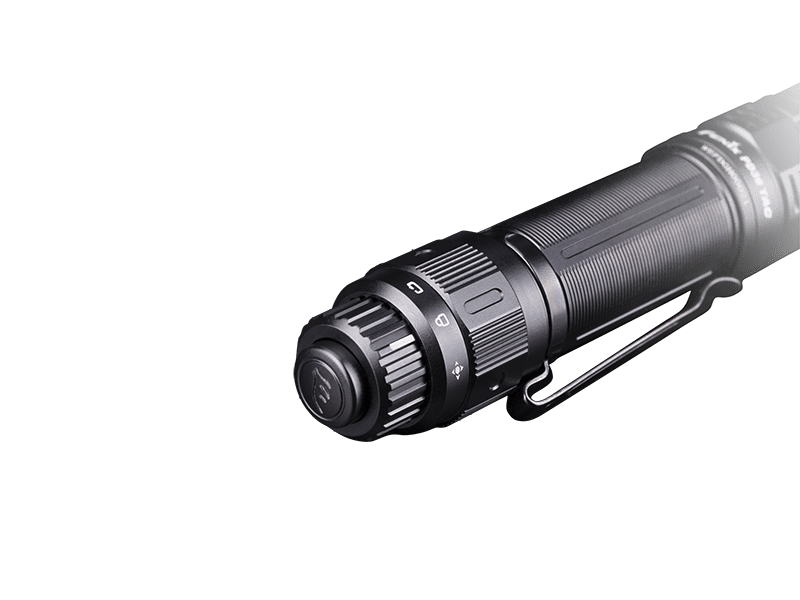

In any state, rotate the toggle switch on the flashlight to select the needed mode, turn the toggle switch clockwise to the end to enter tactical mode, rotate the toggle switch counterclockwise to the end to enter Duty mode, to the middle to enter Lockout mode.
Output Selection of the Fenix PD36TAC
Tactical Mode
Tap the tactical tail switch on the flashlight to momentarily turn on the light and fully press the tactical tail switch to lock the light on a high output level. Press and hold the tactical tail switch for 0.8 seconds to enter the strobe mode, tap the tactical tail switch to turn back to high output level. Fully press the tactical tail switch on the flashlight to turn off the light.
Duty Mode
Tap the tactical tail switch to cycle through Eco→Low→Med→High→Turbo, fully press the tactical tail switch to lock the output level, tap again to cycle the output levels (with intelligent memory circuit). Press and hold the tactical tail switch for 0.8 seconds to enter Strobe, tap the tactical tail switch to return to the previously used output level. Fully press the tactical tail switch to turn off the light.
Instant Strobe
In Tactical or Duty mode, press and hold the tactical tail switch for 0.8 seconds to enter Strobe, tap the tactical tail switch again to exit Strobe.
Lock/Unlock
Lock:
With the light switched on, rotate the toggle switch to the middle position to lock the chosen output level. The tactical switch does not work, and the output levels can not be selected with it locked.
With the light switched off, rotate the toggle switch to the middle position to lock the tactical tail switch. The tactical tail switch does not work, and the light can not be turned on with it locked.
Unlock:
Rotate the toggle switch to Tactical mode OR Duty mode to unlock the light.
Battery Replacement
Unscrew the tail cap on the flashlight to insert the battery with the anode side (+) towards the light head, then screw the tail cap back on.
Intelligent Overheat Protection
The light will accumulate a lot of heat when used on higher output levels for extended periods. When the light reaches a temperature of 60°C or above, the light will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C, it will allow the user to reselect higher modes.
Low-voltage Warning
When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Eco output is reached. When this happens in Eco output, the light blinks 3 times every 5 minutes to remind you to recharge or replace the battery in the flashlight.
Note: This only works with Fenix ARB-L21 Series 21700 rechargeable Li-ion battery.
Fenix's Light Warnings
Like any other flashlight accessory, it is prudent to exercise caution when handling the PD36 TAC tactical flashlight. Here are some of the don'ts of this unit:
1. The lighting of this unit is high-intensity. This means that it can cause severe eye damage not only to you but also to other users. For this reason, refrain from shining it directly to those around you.
2. The Fenix PD36 TAC tactical flashlights accumulates plenty of heat when you use them for an extended time. The accumulation of heat causes a high temperature in its shell. If it becomes too hot to hold, turn it off for a moment and allow it to cool.
Fenix's PD36 TAC Usage and Maintenance
When it comes to usage and maintenance, you need to know that disassembling the head can damage the flashlight and void the warranty. Secondly, Fenix highly recommends utilizing quality batteries with appropriate in-built protection in this flashlight. If you do not intend to use the light for extended periods, remove its battery to prevent damage to the battery. Always charge your unit's battery when before it becomes completely depleted. It will not affect its memory if you do this. Because extended use affects the O-ring causing it to wear, you need to replace the o-ring if it's damaged. Replacing the O-ring ensures the PD36 TAC maintains a proper water seal. Frequent cleaning of the flashlight's battery contact helps to improve its performance in terms of lighting. Of great importance to note is that dirty contacts can cause the unit to flicker or shine intermittently. Additionally, it can even fail to illuminate.
Illumination failure can be resolved by:
· A battery that needs replacing. Replacement is usually the preferred solution in this case.
· Dirty contacts, PCB board, or threads. The answer is to clean the different contact points and contact us if that does not help.

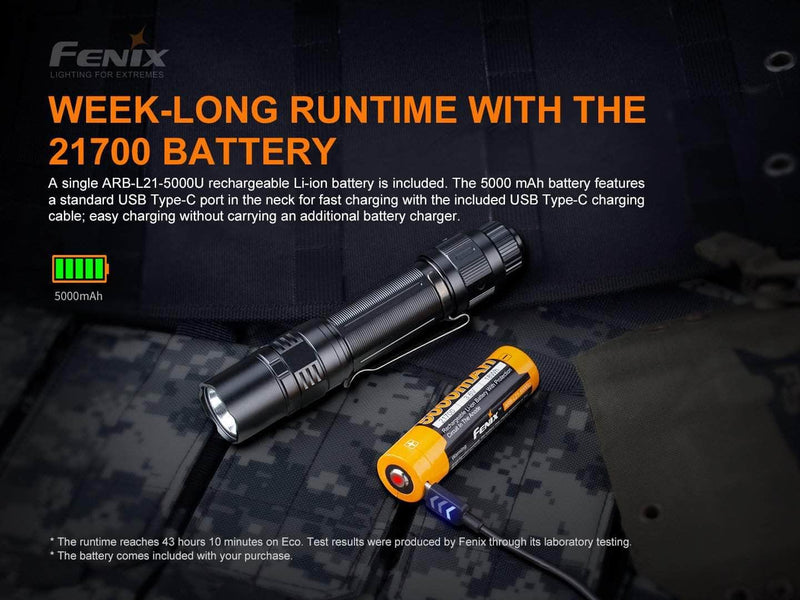

Fenix PD36 TAC Tactical Flashlight Batteries
-
Included: Fenix ARB-L21-5000U USB Type-C rechargeable 5000mAh 21700 battery
- Compatible: One Rechargeable 21700 battery

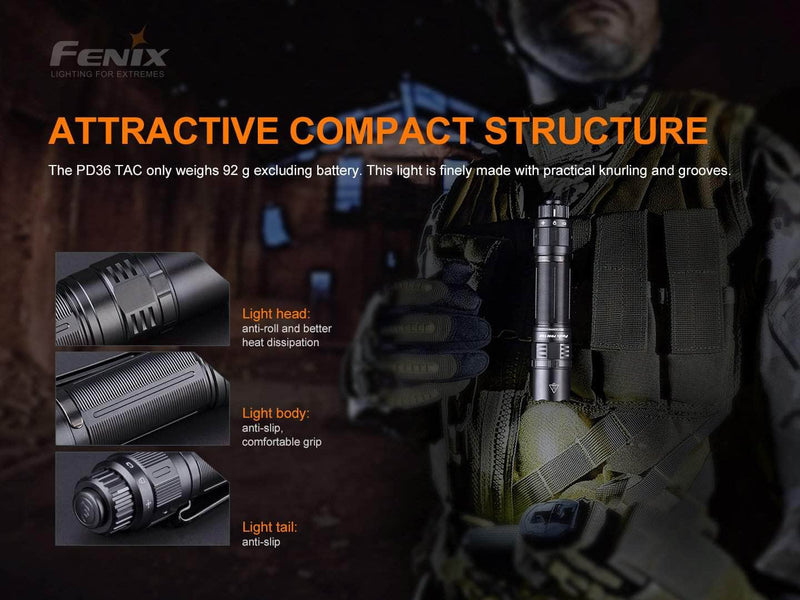

Fenix PD36 TAC Tactical Flashlight Size
- Length: 5.5 inches
- Body Width: 1 inch
- Head Width: 1.04 inches
- Weight: 3.24 oz

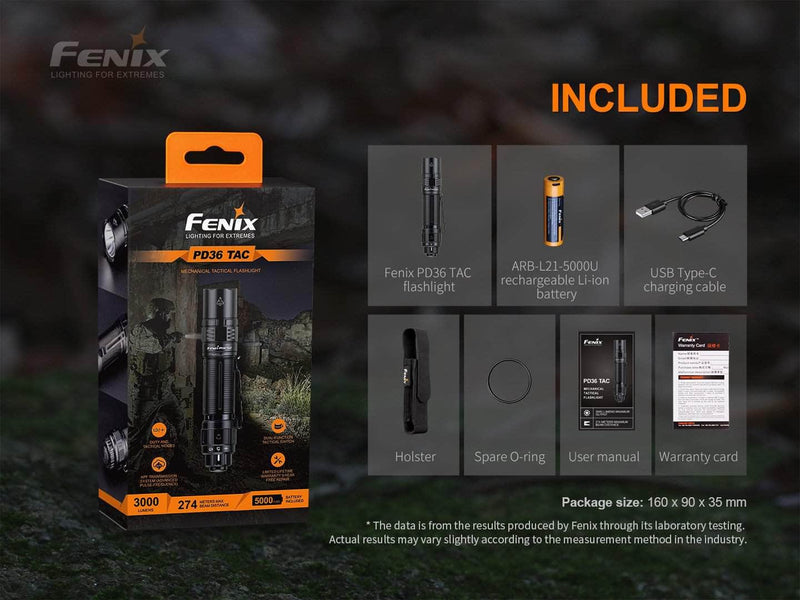

Fenix PD36 TAC Tactical Flashlight Included
-
Fenix PD36 TAC Flashlight
- ARB-L21-5000U Rechargeable Li-ion battery
- USB Type-C Charging cable
- Fenix PD36 TAC Holster
- Fenix PD36 TAC Spare O-ring
- Fenix PD36 TAC User manual
- Fenix PD36 TAC Warranty card

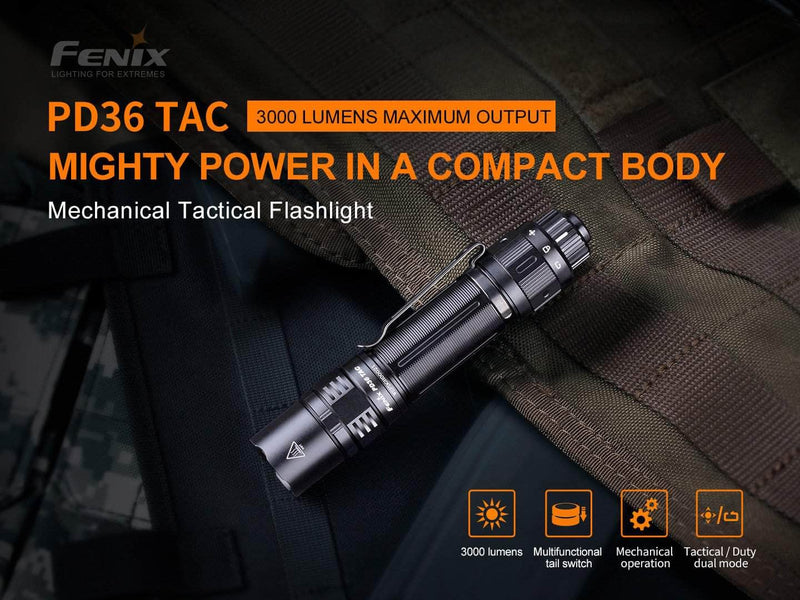

Fenix PD36 TAC Specifications
- Maximum output - 3000 Lumens
- 21700 battery
- Duty and Tactical modes
- Luminous SST70 LED with 50000 hours' lifespan
- A6061-T6 aluminum body
- Lockout function
- Mechanical tail cap toggle switch
- Premium HAIII hard-anodized and anti-abrasive finish
- 1-meter impact resistance

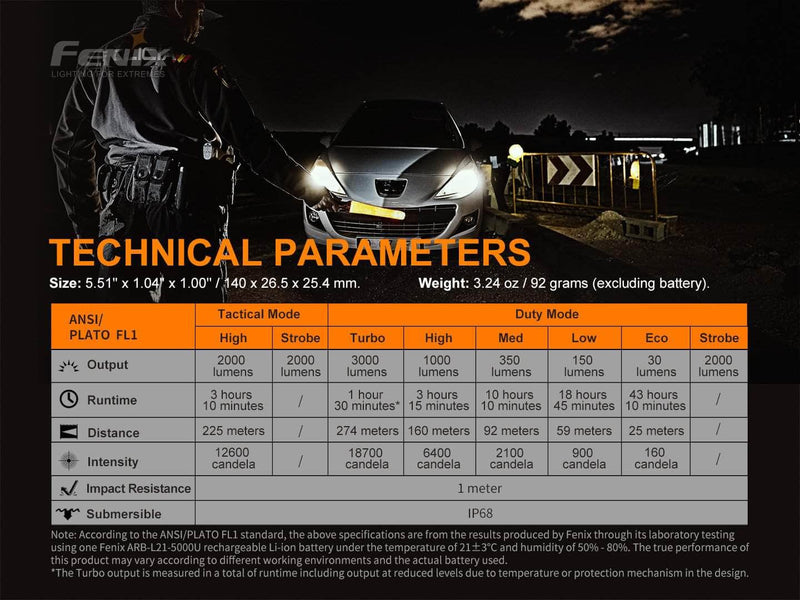

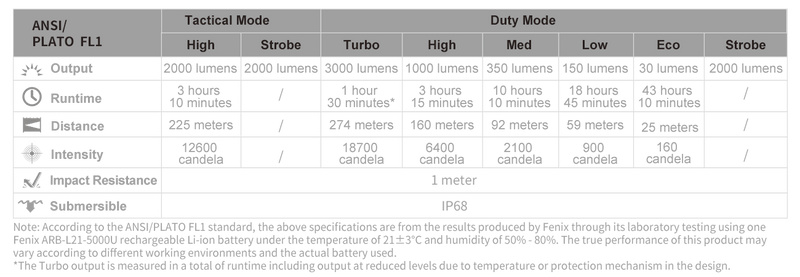

Outputs
Tactical Mode
- High: 2000 Lumens, 3.1 hours, 738 ft
- Strobe: 2000 Lumens
Duty Mode
- Eco: 30 Lumens, 43.1 hours, 82 ft
- Low: 150 Lumens, 18.7 hours, 193 ft
- High: 1000 Lumens, 3.2 hours, 524 ft
- Turbo: 3000 Lumens, 1.5 hours, 898 ft
- Med: 350 Lumens, 10.1 hours, 301 ft
Impressive Features
- Anti-slip and anti-slip body design
- Stress-free output selection
- Durable oxidation-resistance and high-strength aluminum
- Instant power activation
- Momentary tactical tail switch
- 4-hour fast charging
- Tough ultra-clear glass lens featuring an anti-abrasive coating
- IP68 rated
Conclusion
Fenix has been a leader in the flashlight industry for decades, and its newest product is no exception. Fenix's new PD36 TAC tactical flashlight offers users long-lasting power with an affordable price tag! This powerful light can withstand harsh conditions like rain or snow without losing its effectiveness; it also includes some excellent features that make sure you're always prepared when out there on duty or exploring nature's wonders on your terms. If you want an all-around good performer at any time of day, then look no further than this dependable little guy
