XTAR MC1 Plus
XTAR MC1 Plus
The XTAR MC1 Plus Charger is XTAR's latest portable USB mini charger with a 1A maximum constant current. Compared to our original MC1 charger, you can charge an 18650 as well as other lithium-ion batteries at twice the amperage. The MC1 Plus features the ability to automatically detect the battery being charged and choose the most suitable charge current at either 0.5A or 1A. The MC1 Plus makes a great upgrade to the MC1 charger but is not a replacement.
Features:
Automatically selects most suitable charging current for batteries (0.5A or 1A)
Reverse-polarity and shortcircuit protection circuit
Three-stage charging and 0V battery activation
Micro USB port to supply power for the charger
Adopts IC temperature monitor to avoid over heat
Compact size and portability
Low heat design
The max charging current of XTAR MC1 Plus is 1A current. To fully charge a VTC5 just takes 3 hours. It can also automatically choose the most suitable charging current (0.5A, 1.0A) for your batteries to ensure the longest lifespan for your batteries. Just insert your battery in the charger and MC1 Plus will take care of the rest!
User-friendly design

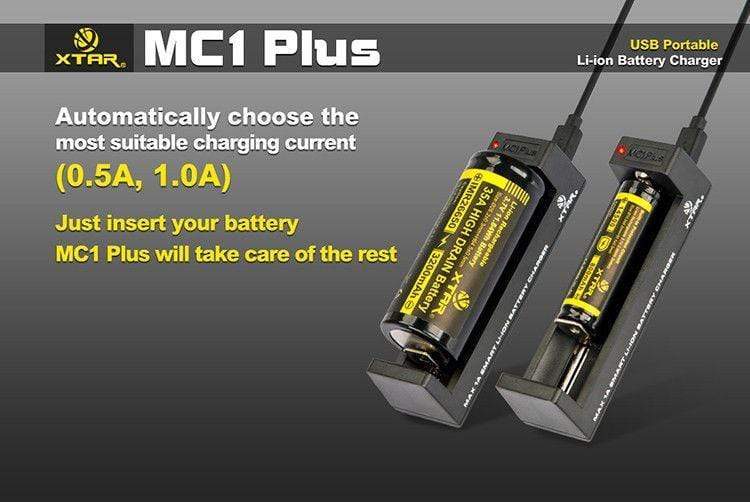

Automatically choose the most suitable charging current (0.5A, 1.0A)

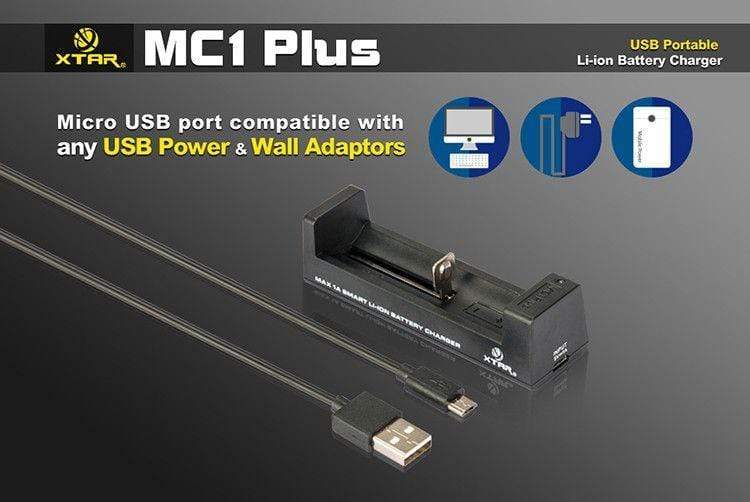

Micro USB port compatible with any adaptors and any 5V USB power including 5V solar power, perfect for outdoor activities
Automatically stop charging when complete and restart charging function, so you can keep the batteries inside the charger overnight
The safest charger
5V DC input, within the safety voltage ensures your safety
Reverse - polarity and short circuit protection
Durable fireproof shell with perfect heat dissipation and high temperature resistance
Without temperature rising or overheating
Maximize the lifespan for your battery
Precise cut off the voltage at 4.20V – Nothing less, nothing more.
Use best charging method (TC-CC-CV) for Li-ion batteries
Soft start can avoid sudden high current impact
Save time and money

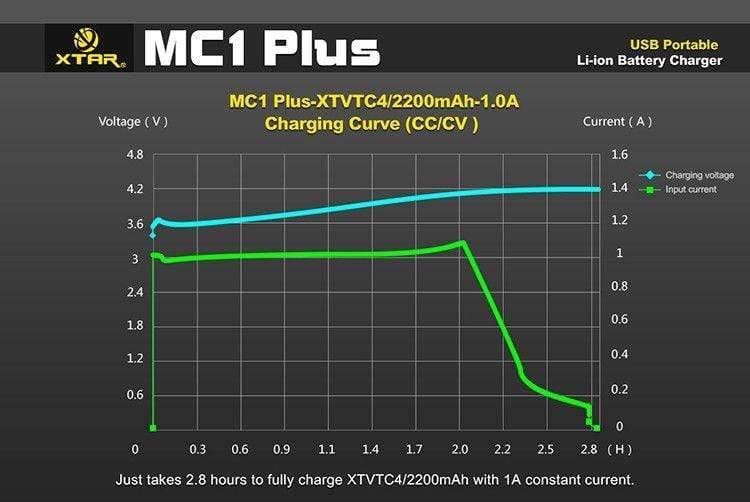

To fully charge a VTC5 just takes 3 hours with 1A max real constant current
Compatible with any USB power, no need to buy more wall adaptors
A mini charger but can charge both 10440 and 26650 size battery, no need to buy many chargers

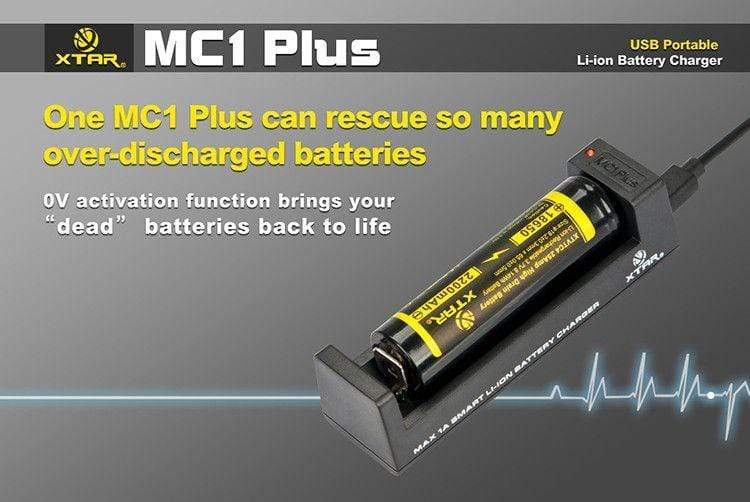

0V activation function can rescue your over-discharged batteries. Normally you need to throw away those over-discharged batteries, but with XTAR chargers you can rescue them and reuse them

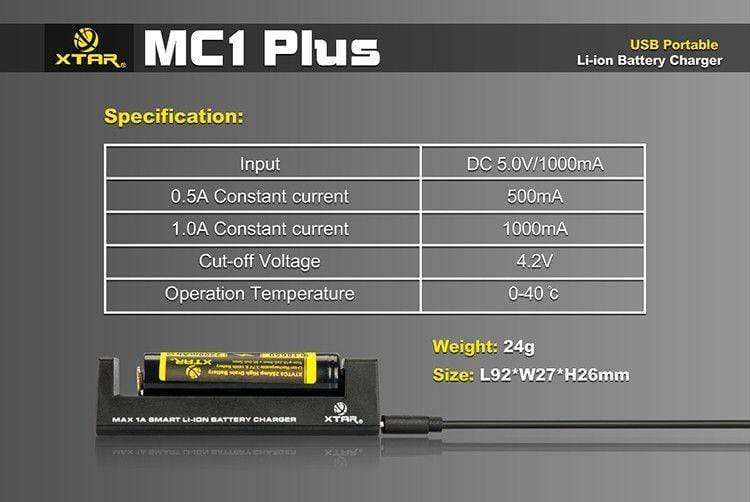

Input: DC 5.0V 1000mA
0.5A Constant current: 500±50mA
1.0A Constant current: 1000±80mA
Cut-off Voltage: 4.2V±0.05V

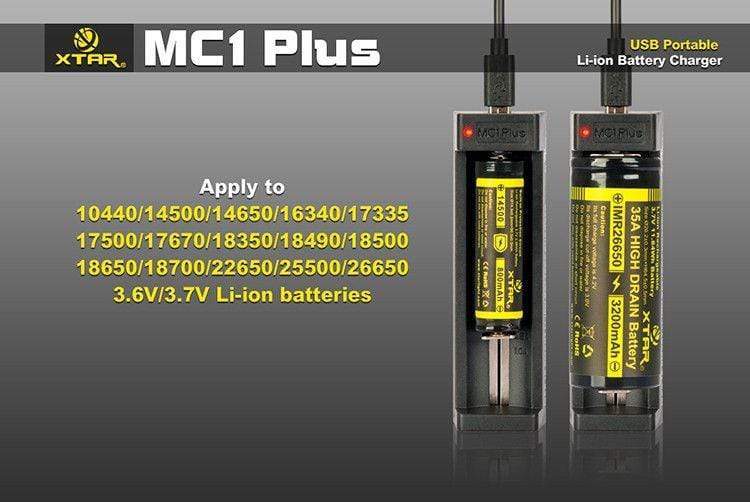

Applies to: 10440/14500/14650/16340/17335/17500/17670/18350/18490/18500/18650/18700/ 22650/25500/26650 3.6V/3.7V Li-ion batteries
