Lumintop Frog EDC Flashlight

Sold out
Original price $ 35.95 - Original price $ 35.95
Original price
$ 35.95
$ 35.95 - $ 35.95
Current price $ 35.95

Free shipping for orders over $75. Most orders ship within 24hrs. Any order containing lithium batteries is at risk of abnormal shipping delays.

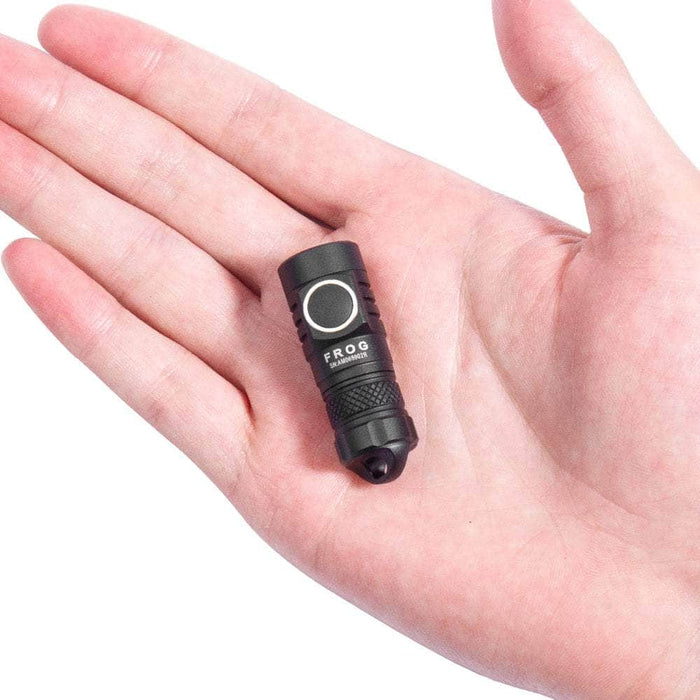

Lumintop Frog 570 Lumens 10180 10440 EDC Flashlight



Lumintop Frog Specifications

Emitter:               High performance LED, e.g.Luminus SST20
Flux:                    ~570 lm/ 750 lm (10180/ 10440)
Throw:                 ~135 m & ~4455cd/ 150 m & 5670cd
Runtime:              9 hours/ 36 hours (10180/10440, Moonlight)
Power:                  12.6W
Firmware:            Tom E's open-source GPL NarsilM v1.3 adapted by Texas_Ace
User interface:    [1] By default the GT Nano is set to use the very intuitive Narsil smooth RAMPING UI.  Instant access to a 2.5A TURBO mode is also provided.
[2] A more conventional discrete level MODE-SET UI is available as an alternative.  Any one of 12  pre-defined mode-sets can be selected.
[3] MOMENTARY mode is useful for signaling purposes or rapidly/briefly lighting up targets.
Battery:                One button-top 10180 Li-ion (included) or 10440 Li-ion (excluded) via the long tube
Driver:                  Texas Avenger FET driver
Optic:                   TIR optice lens
Lens:                    Glass with anti-reflective coating
Body:                   Aluminum with Type III hard-coat anodizing
Button:                Tactile with back-lit rubber boot
Ingress rating:      Equivalent to IPX-8, underwater 2m
Weight:                Approximately 11g without cells
Dimensions:        15.6 mm Ø head x 45mm length

1XFrog,  1X 10180 Li-ion battery, 1XKeychain, 1XManual, 1XCharger, 1X Cable



Charging the battery:  Remove the insulation sheet before the first use.  The indicator shows red when the battery is connected.  The charging indicator shows red when charging and turns green when fully charged.

Notice: Extra 10180 battery will load into an extra mini flashlight.  Don't let it fool you.


Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
Adrian C.
Great little light

Best small light I have seen, even better with the 10440 tube added. Fast service, great quality.

W
William F.

Awesome and very bright little torch.

S
Scoto
Great little flashlight

Ok let's get the bad out of way first. With the default battery you're not going to get runtime at high lumens with this tiny flashlight. Lower and medium lumens maybe a couple of hours is my best estimate so far.

Now with the 10440 tube that improves substantially and if you want this to be anymore than a Keychain Flashlight I would highly advise getting the 10440 tube and use a 10440 cell. It's still really tiny even with the 10440 tube (will post pic with 10440 tube next to roxyvon A1).

Anyways now on to the good stuff and why I'm giving it 5 stars despite the mediocre high lumen battery life. I forgot to mention in turbo mode with the 10180 cell it will step down very quickly unless you turn temperature step down off and you have a well charged cell.

Anyways, it's extremely small and well built it's easily the best built tiny flashlight I've owned and I have tried a ton. The fit and finish are beautiful and the the thing looks so cool.
Second it can get best bright, especially with 10440 cell, it's brighter than even my royvon crees which previously were the brightest mini flashlights I had.

Third the UI is very good, the smooth ramping is awesome and you can change pretty much every parameter to suit your needs. I love the one click on and off and of course it remembers your last setting. 2 click instant turbo mode, and one click and hold for moonlight which has adjustable intensity.

As I said with this UI you can adjust pretty much everything- step up one click from lowest output to highest or step down one click from highest output to lowest on the non smooth ramping mode.

Plus you can turn auto step down completely off or set time limits instead of temperature. Please not with 10440 tube and prolonged turbo mode it will get very hot at the bulb housing, you will need to move your fingers down a bit.

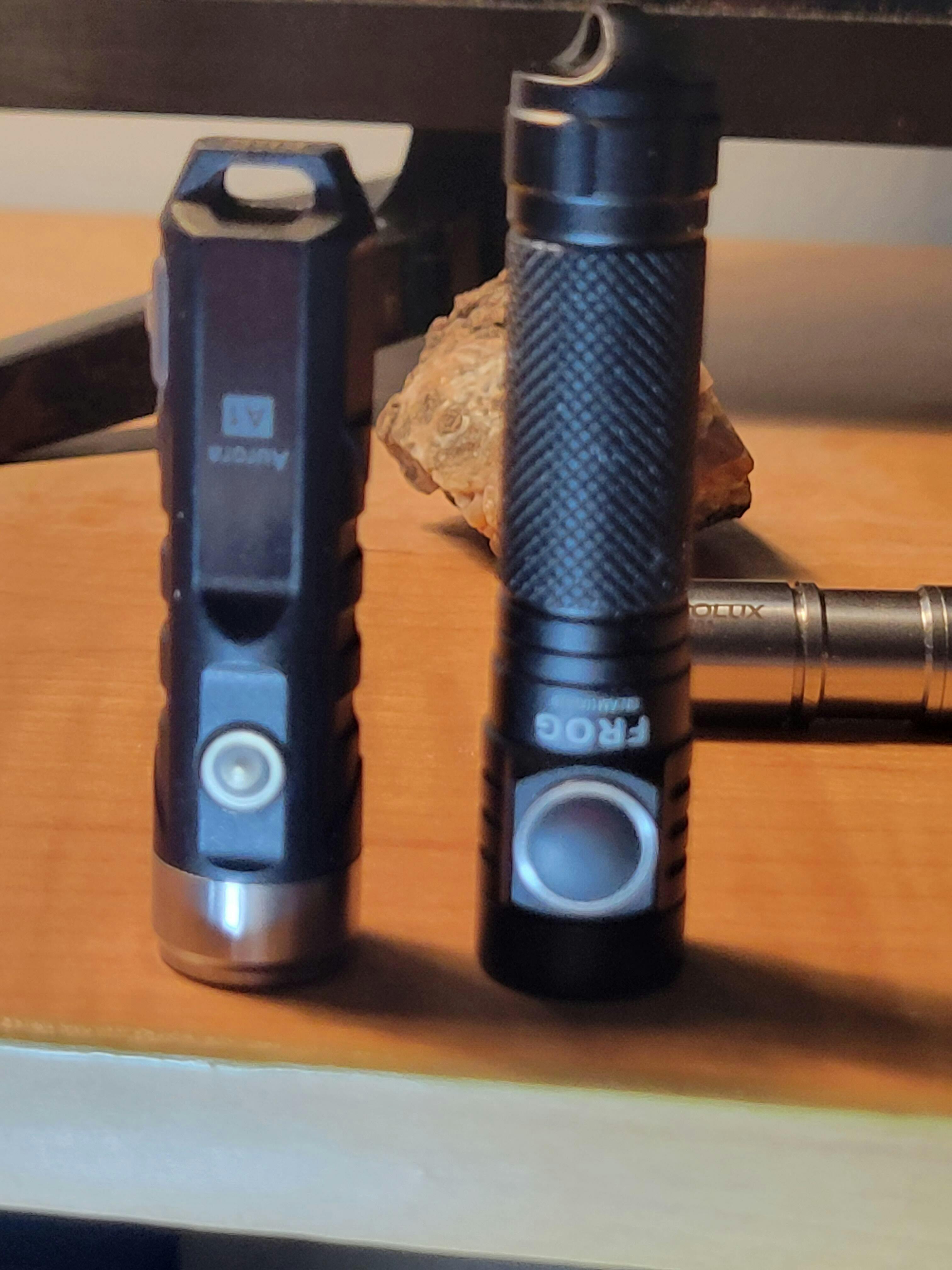

Ok well the very best thing for me is the warm led, it even warmer than a nichia. I'm using this little light to check opals and agates and other precious/semi precious stones so color accuracy is of paramount importance. And I'm happy to report the led is very natural. I will post 2 pics with the first being the tiny 2 with the Osram led lighting some opals and the second of the Frog to the right of the other pic. You can see how much richer the colors are.

So for me it's totally a keeper, and besides the weak battery life of the 10180 battery (to be expected) this is a stellar little torch. I might come back and post some beam shots but the beam is a good mix between concentrated spot but nice and semi flood at a distance.

Good stuff!
